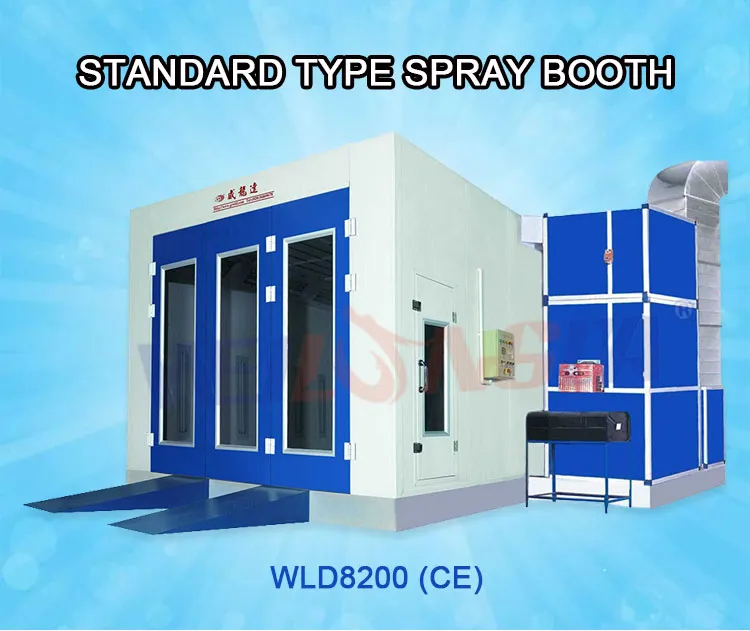

Wld8200 Ce Saloon Car Paint Baking Oven

Product Description

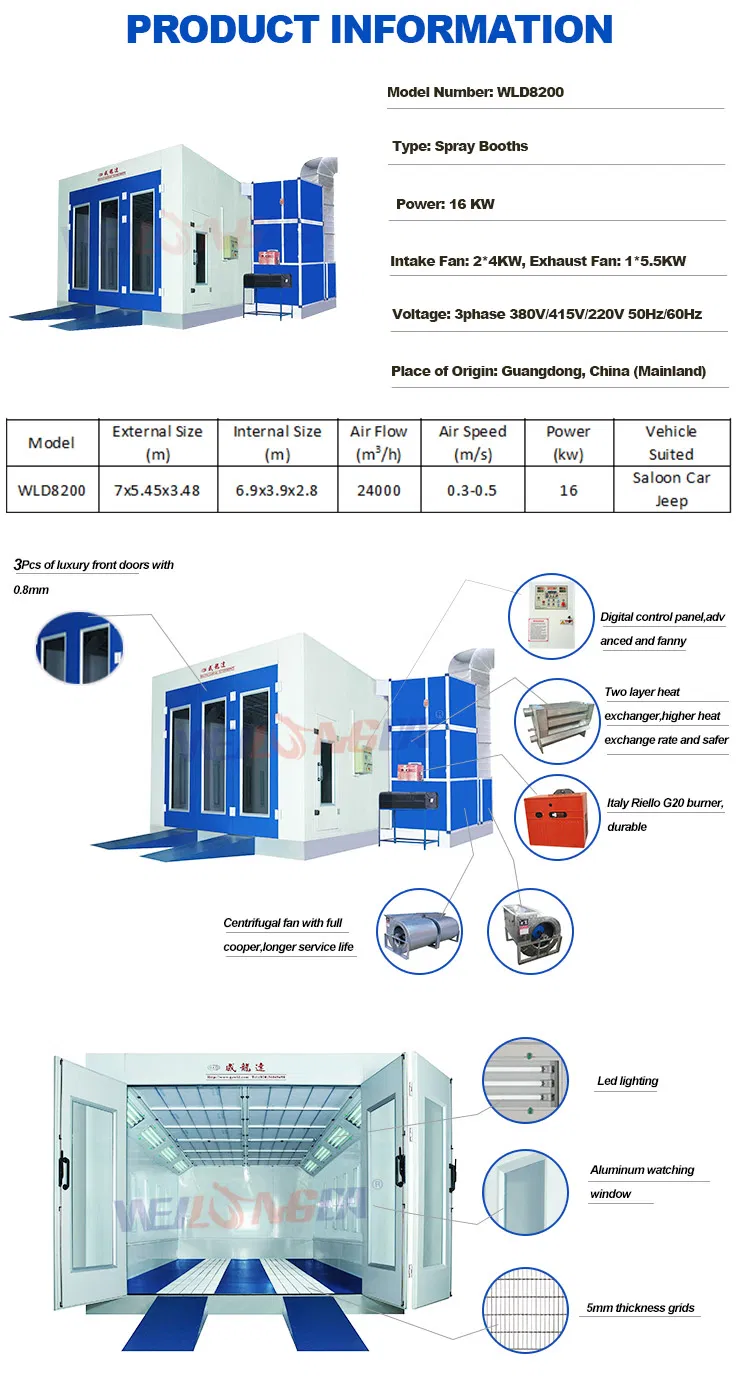

Configuration:

Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.

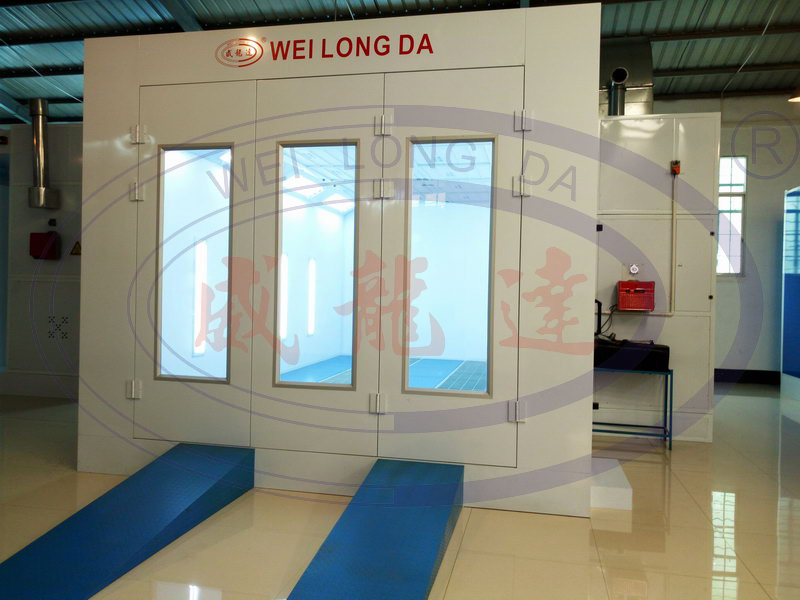

Door: 3 pcs of luxury front doors with 0.8mm thickness colorful steel skin. Size: 3000(w) x 2750(h). 1 pc of emergency door.Watching window with aluminum frame.
Air Circulation System: 2x4kw intake fan, 1x5.5kw exhaust fan. BELIMO 20N electric damper.
Burner: Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60^.C). Max. temperature
at 80^.C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 16w LED lamps. Side light has 16 pcs of 16w LED lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.
Pollution Control System: Multi-layer fiberglass filter.
