Infitech Preparation Room (IT CLASSIC 6900G)
Basic information
| DESIGN STNDARD | BS EN 13355:2004+A1:2009 BS EN 60204:2006+A1:2009 |

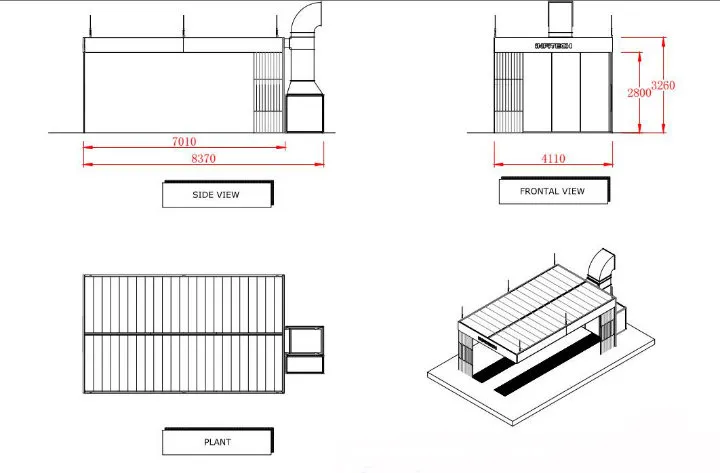

| BOOTH DIMENSIONS | |
| Internal Dimensions | 6900 X 4000 X 2800 mm(L x W x H) |
| External Dimensions | 8370 X 4110 X 3260 mm(L x W x H) |
| BASEMENT | |
| Base design | With pit for extraction, two rows of grids |
| Carrying capacity of the grids | 650kg /wheel |
| Filter area | 10.4m2 |
| Grid description | Size: 997 X 756mm, 40 X 3mm, galvanized pressed steel grates instead of conventional steel grates with twisted bars. Aesthetics, durability, stress resistance are the most important features of pressed steel grates. |
| CABIN | |
| Cabin structure | Wall panel vertical insert |
| Plenum height | 400mm |
| Back wall panel | 50mm dual-skin insulated panels filled with EPS |
| Top panel | Galvanized steel plate bending forming |
| Edge material | 1.2mm galvanized plate bending forming |
| PVC SOFT CURTAIN | |
| Soft curtain | PVC curtain(Grey, blue, red, yellow) |
| Arrangement and quantity | 1 set in the front, 2 sets on both sides; transparent in the middle, white at both ends |
| CEILING LIGHTS | LED lamp,On both sides |
| Quantity and power | 8 sets of lighting fixtures, 4x18W, total 576W |
| Arrangement | On both sides |
| ILLUMINATION | >700Lux |
| FILTRATION SYSTEM | |
| Ceiling filter | EU5 class filter cotton, Model SP-600G |
| Floor filter | Fiberglass paint arrestor filter, G2 grade |
| Exhaust filter | Fiberglass paint arrestor filters, with features of big ventilation volume, small resistance and flame resistance, etc. |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type big impeller turbine fan |
| Exhaust fan power and motor descriptions | 1×7.5KW, 970RPM, 380V, 50HZ, CE approved |
| Parameters of exhaust fan | 28,000m3/h, 650pa |
| Electric damper | Adjust the return air volume by adjusting the electric damper |
| DUCTWORK | Straight ducting:3pcs ; 90° elbow:1 pc ; Reducer:1 pc; Three-link:1pc;Electric damper:1 pc,adjust the return air volume by adjusting the electric damper |
| CONTROL SYSTEM | Fan start,electric damper,emergency stop switch, failure indication |
Company Introduction

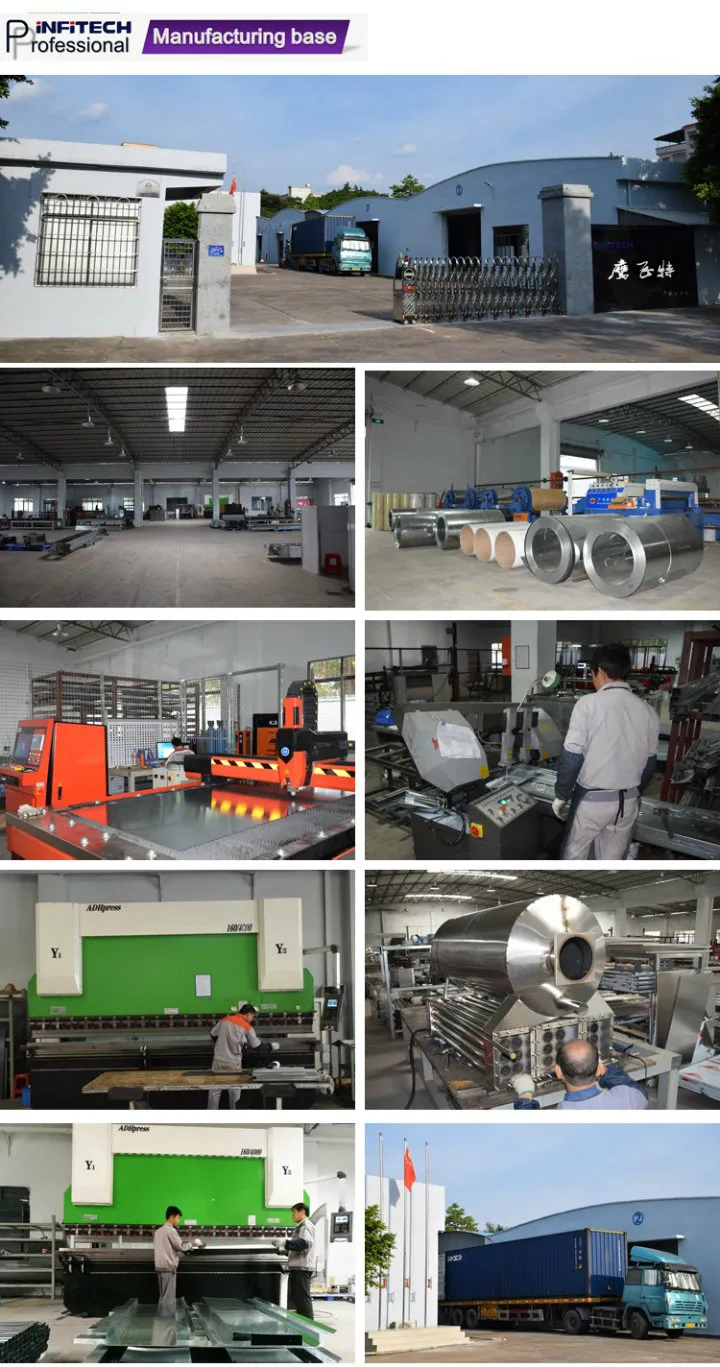

Guangzhou Infitech is professional manufacturer of customized European standard spray booths in China. We stick to European standard for spray booth since the business started. What we supply ranges from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your customers' individual needs.
