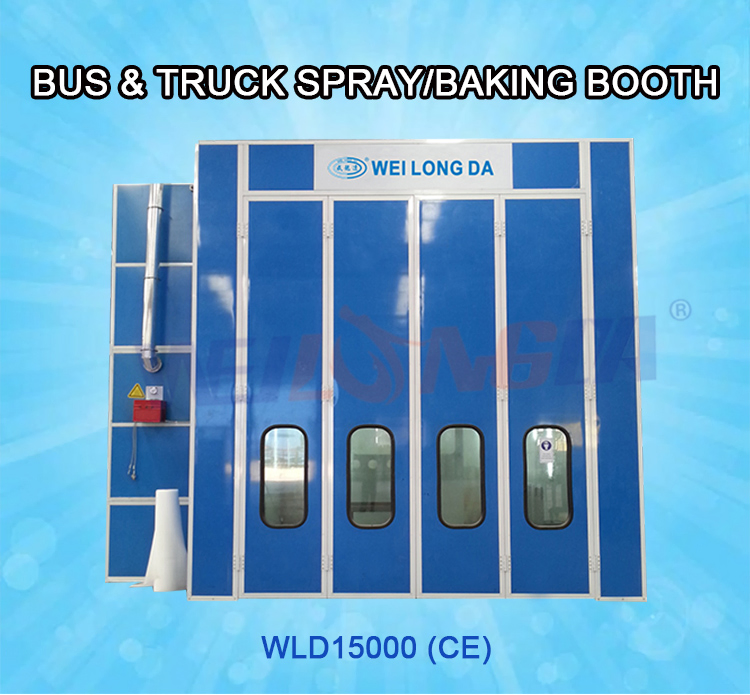

Wld15000 Truck Bus Paint Oven Ce

Product Description

Wld15000 Truck Bus Paint Oven Ce Specifications:

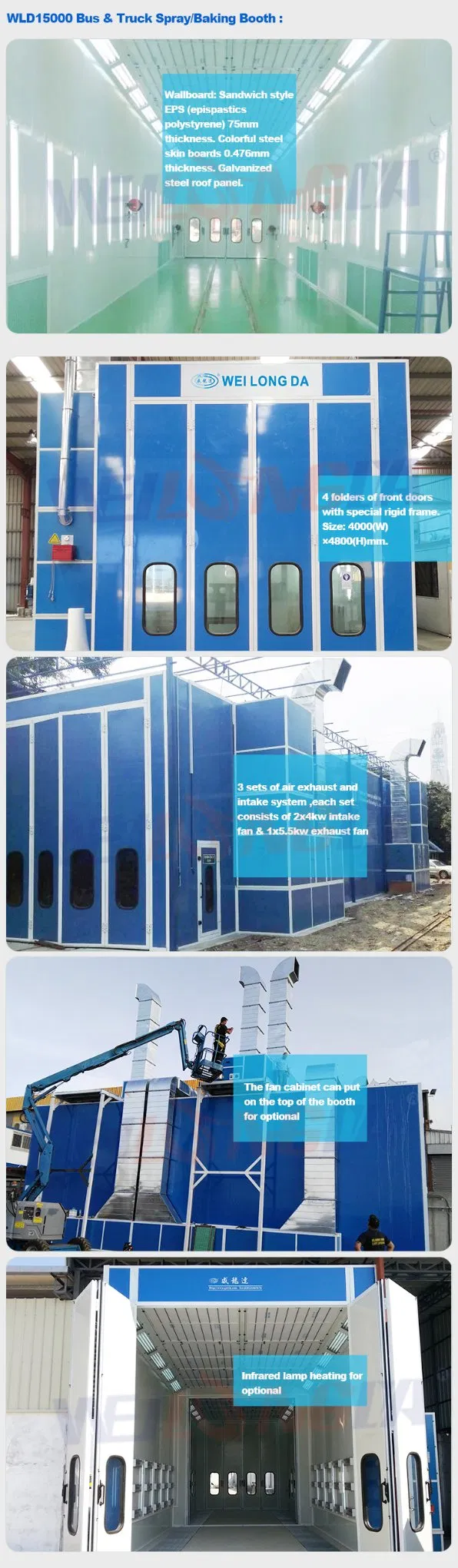

Wallboard: Sandwich style EPS (epispastics polystyrene) 75mm thickness. Colorful steel skin boards 0.476mm thickness. Galvanized steel roof panel.

Door: 4 pcs of front doors with special rigid frame. Size: 4000(w) x 4800(h). 2 pc of emergency door.
Air Intake System (3sets): Each set consists of 2x4kw intake fan. Total 6 units of 4kw intake fan. BELIMO 20N electric damper.
Air Exhaust System (3set): Each set consists of 1x5.5kw exhaust fan. Total 3 units of 5.5kw exhaust fan. Multi-layer fiberglass filter. Exhaust air from basement or two sides of wallboard.
Heating System (3set): Each set consists of 1 unit Italy Riello G20 diesel burner 200000Kcal/h. Total 3units of burners,600000Kcal/h.The heat exchanger is made of 1.5mm thickness stainless steel which features more heat dissipating surface, better heat exchange and better burner efficiency.

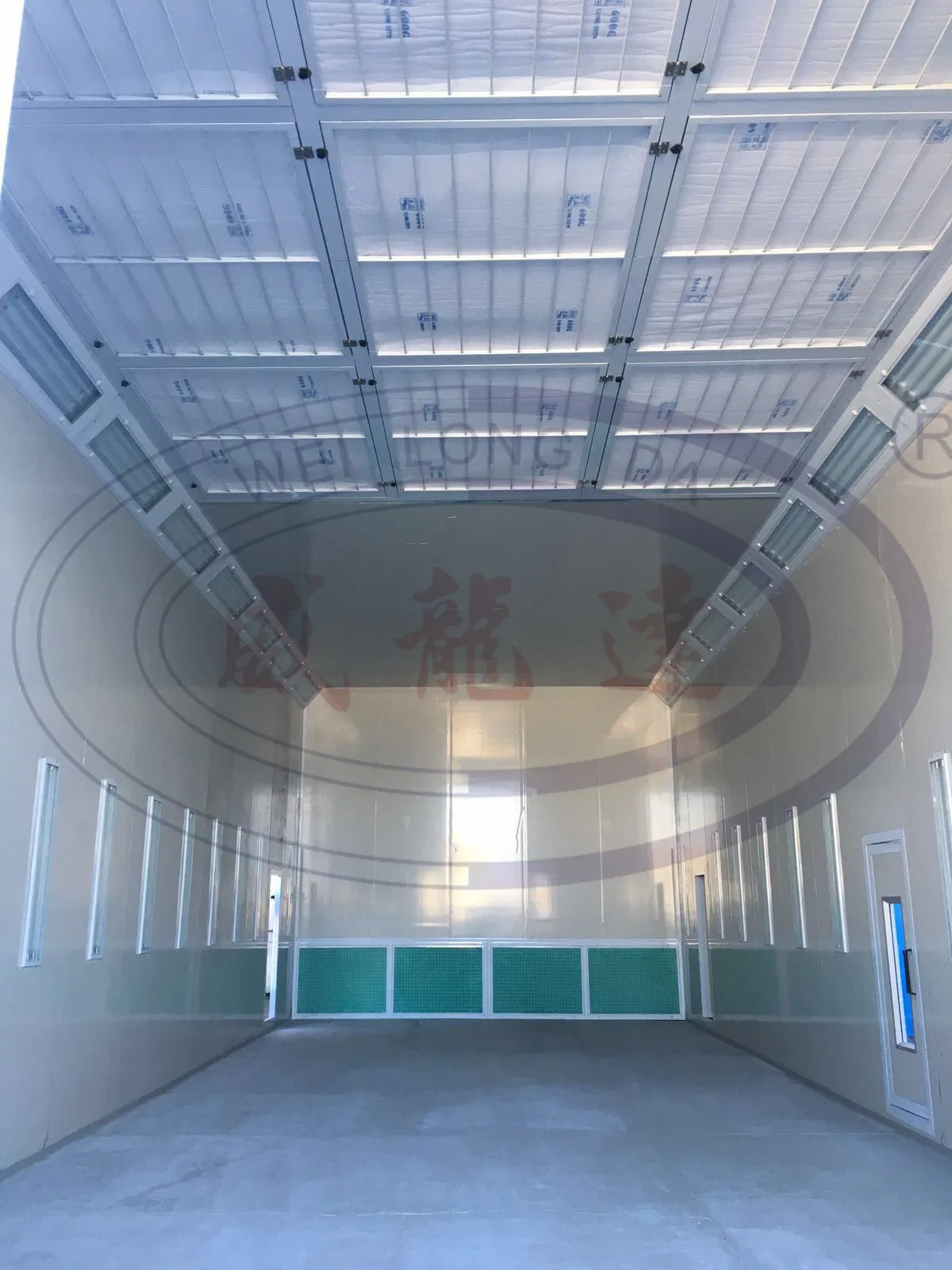

Lighting System: Ceiling light has 18units x 4pcs of 36w lamps. Side light has 22 units x 2pcs of 36 w lamps. Total 116 pcs of 36 W lamps. 900 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches 98%.

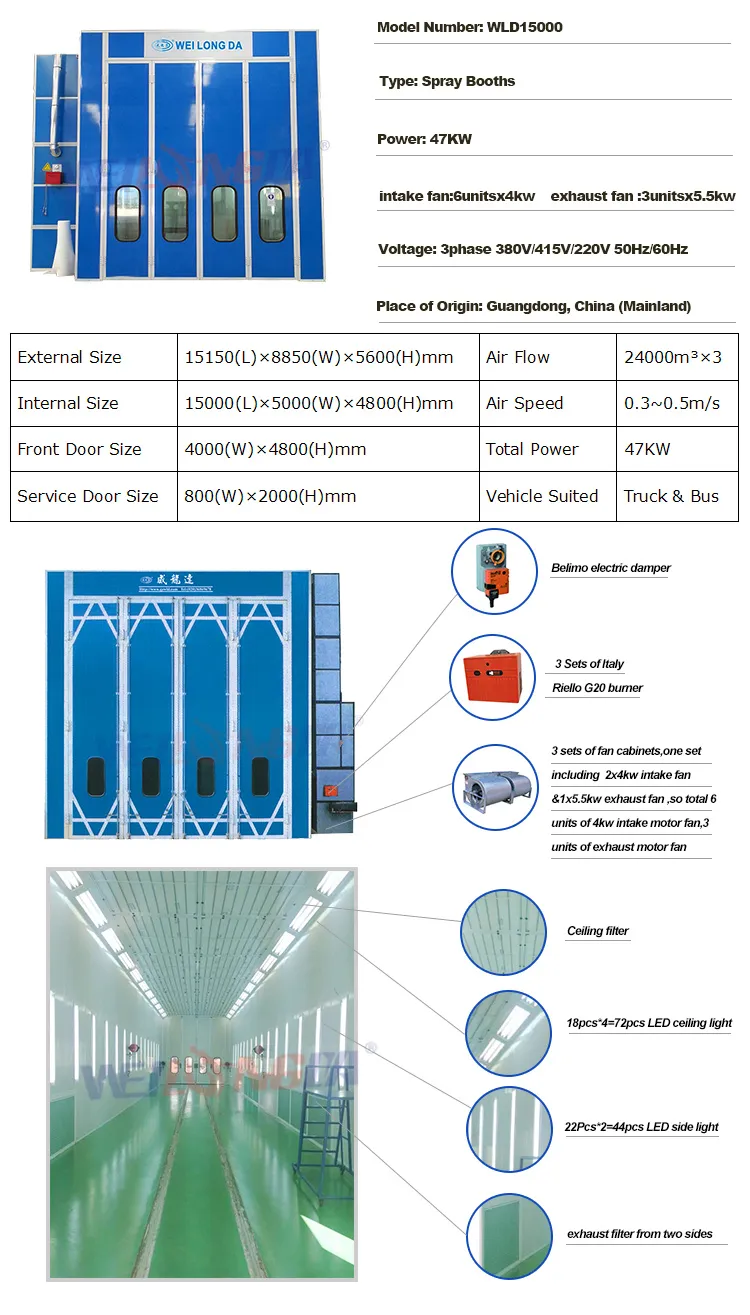

Model	External Size (m)	Internal Size (m)	Air Flow (m³/h)	Air Speed (m/s)	Power (kw)	Vehicle Suited
WLD15000	15.15x8.85x5.6	15x5x4.8	24000 x3	0.3-0.5	46	Bus&Truck
