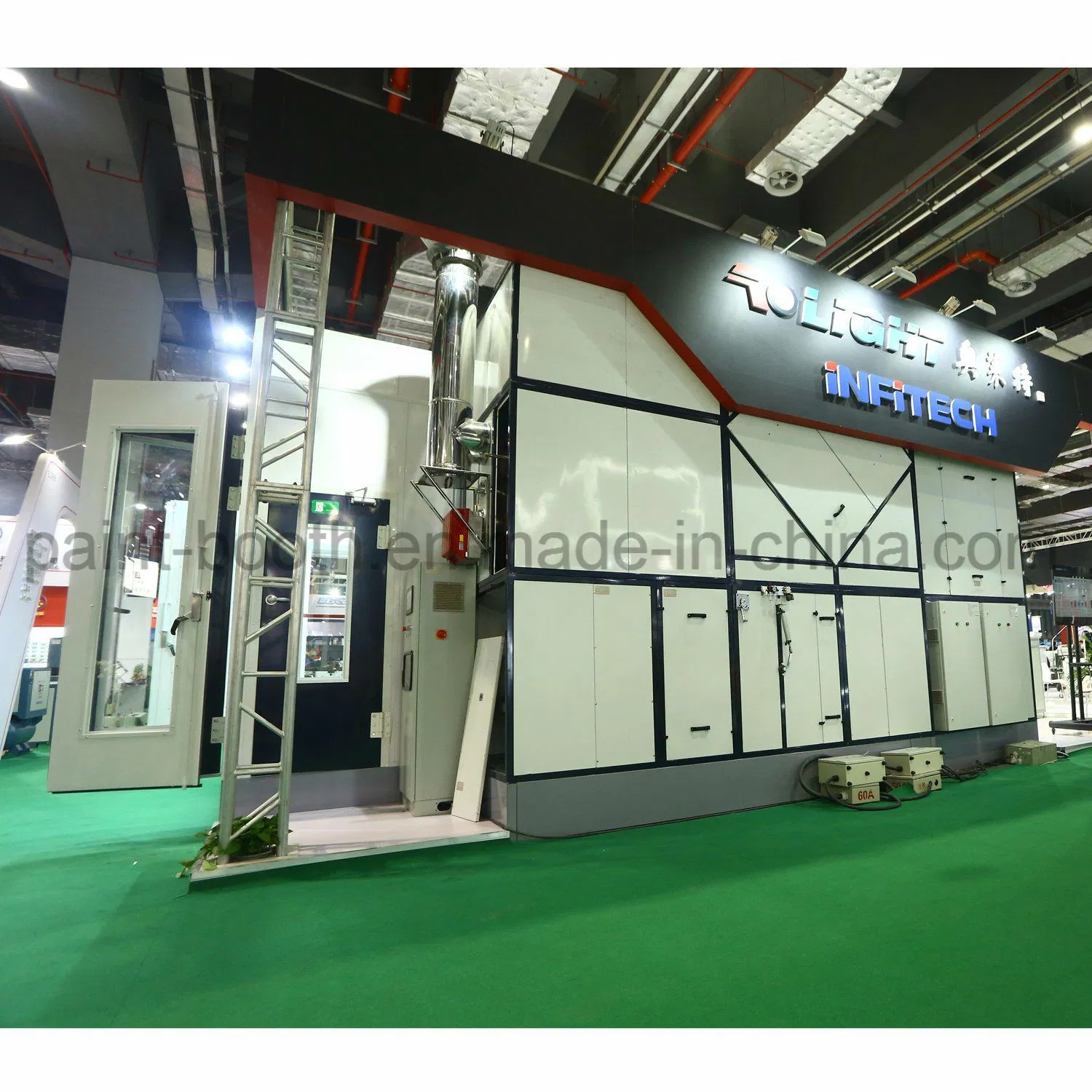

Infitech Premium Paint Spray Booth It- 701 and Preparation Station It-D900
INFITECH premium paint spray booth IT-701 and preparation station IT-D900Overview- Four-leaf door set for wide opening, 350mm high basement is incorporated into the spray booth as standard. In combination with the 600mm high plenum, the downdraft airflow through this cabin is second to none.- Dual-s......
Send Inquiry
Product Description
Overview
- Four-leaf door set for wide opening, 350mm high basement is incorporated into the spray booth as standard. In combination with the 600mm high plenum, the downdraft airflow through this cabin is second to none.
- Dual-skin insulated construction, premium shadow-free lighting, superior airflow, high-efficiency heat system and excellent overspray control give this spray booth the ability to fit any shop's standards.
Technical parameters
Item A: INFITECH standard spray booth IT-701 | |
DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
INTERNAL DIMENSIONS | 7000 X 4000 X 2800mm (L X W X H) |
EXTERNAL DIMENSIONS | 7110 X 6050 X 3810mm (L X W X H) |
ENTRANCE DOOR | 3400 X 2700 mm (W X H), 2 sets |
PERSONNEL DOOR | 800 X 2000 mm (W X H), 1 set |
SIDEWALL LIGHTING | 4 sets, each 2 X 18W, 144W total |
CEILING LIGHTING | 8 sets, each 6 X18W, 864W total |
BRIGHTNESS | >1,000LUX |
INTAKE SYSTEM | Direct-type turbine fan, 7.5KW motor, SIEMENS |
EXHAUST SYSTEM | Direct-type turbine fan, 7.5KW motor, SIEMENS |
AIR VOLUME | 28,000m3/h |
EMPTY LOADED AIR SPEED | +/-0.28m/s |
AIR EXCHANGE TIMES | 6 times/min |
HEAT EXCHANGER POWER | 232KW |
BURNER | RIELLO diesel burner RG5D |
RATED POWER | 18KW |
| ITEM B: INFITECH standard preparation station IT-D900 | |
| DESIGN STANDARD | BS EN 13355: 2004 + A1: 2009 BS EN 60204: 2006 + A1: 2009 |
| INTERNAL DIMENSIONS | 7000 X 4000 X 2800mm (L X WX H) |
| EXTERNAL DIMENSIONS | 7110 X 4150 X 3810mm (L X W X H) |
| ENTRANCE DOOR | Electric curtain door, 3000 X 2800mm (W X H), 2 sets |
| CEILING LIGHTING | 8 sets of light fixtures, each 4 X 18W, 576W total |
| BRIGHTNESS | > 800Lux |
| EXHAUST FAN | 7.5KW motor, SIEMENS |
| AIR VOLUME | 28,000m3/h |
| EMPTY LOADED AIR SPEED | +/-0.28m/s |
| RATED POWER | 10KW |
Features
Airflow
• Full downdraft airflow for spray and cure
• Controlled airflow ceiling
Construction
• White pre-coated galvanized steel
• Dual-skin insulated panels filled with rock wool, total 50mm thick
• 600mm high plenum
• 350mm high basement, full grids
Doors
• 4-wing entry door with 4 observation windows
• Personnel door with observation window
Heat
• Intake and exhaust motors, SIEMENS
• RIELLO diesel burner
Filtration
• Pre-filter: G3 grade pre-filter bag filter
• Ceiling filter: F5 grade filter cotton, Model SP-600G
• Floor filter: G2 grade fiberglass paint arrestor filters
• Exhaust filter: Simple activated carbon filter mat, M type
Controls
•Control panel
PLC controller, pressure gauge
Functions: Painting, heating painting, flash, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, baking delay stop protection, motor over-load and over-current protection, fan and heating system interlock

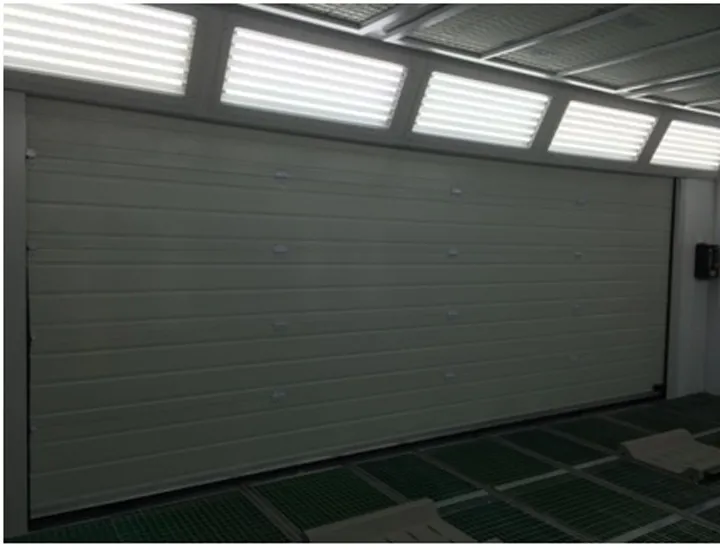

Plate roll up door (as divider between the spray booth and the preparation station)
- Door filled with polyurethane foam, with reinforced ribs
- With observation window
- Anti-crash protection device
- Anti-sagging device

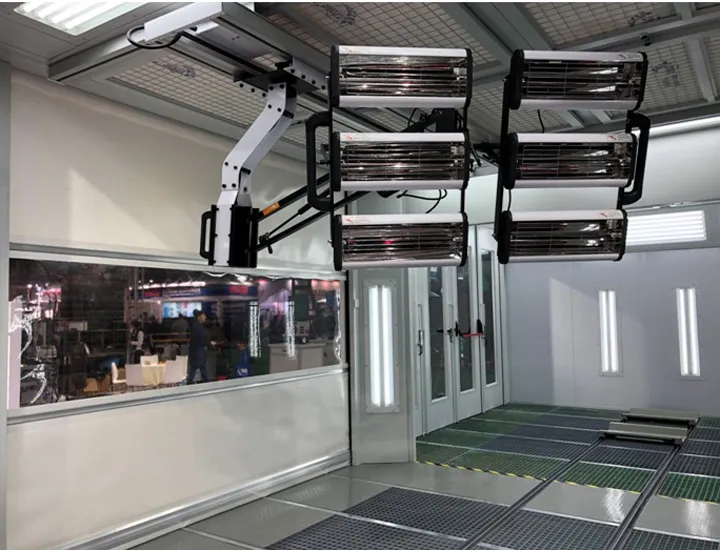

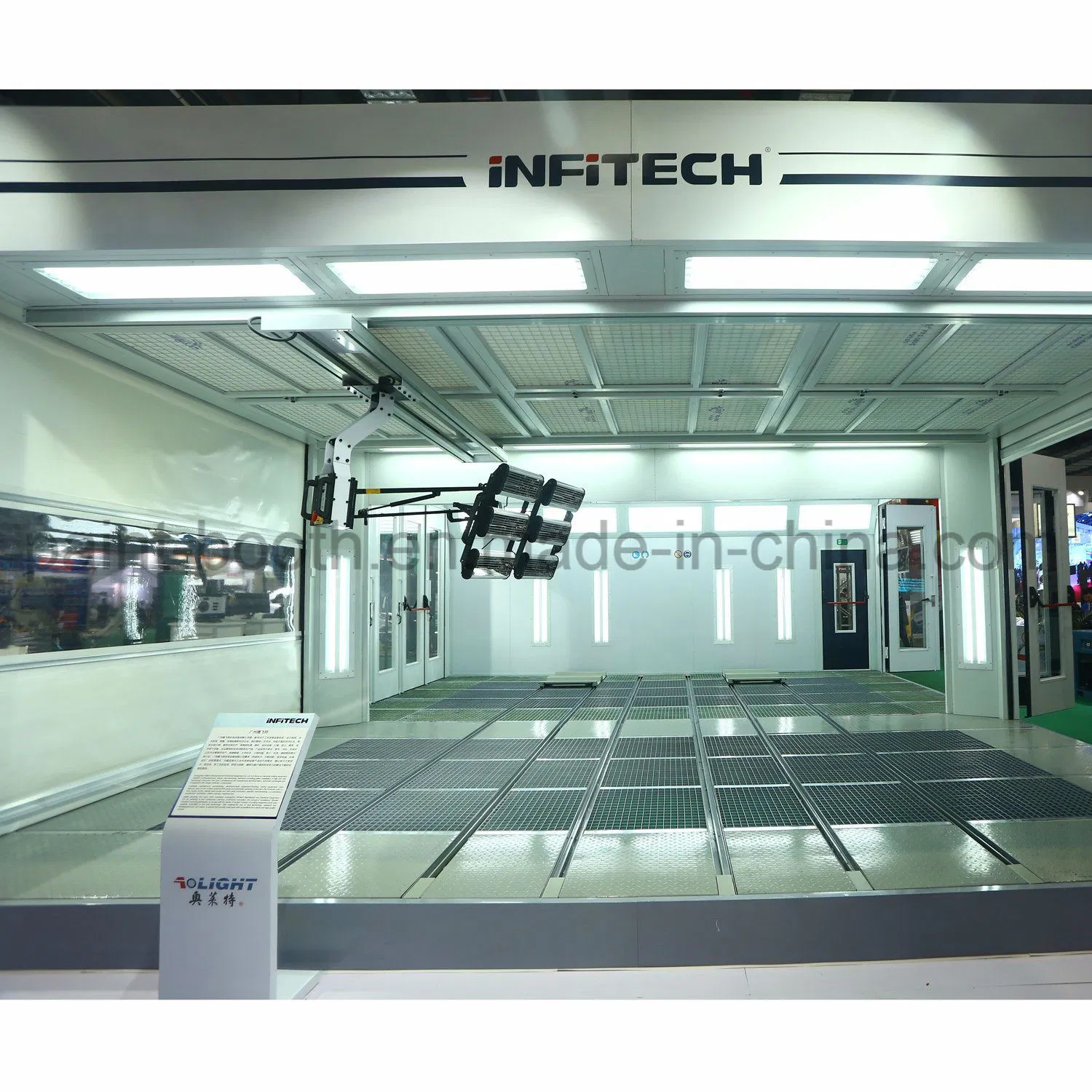

Three-axis infrared drying system
Adopt high quality IRA infrared short-wave heating lamps (total power: 6X1KW) certified by international special light source lab.
The system is mounted at the top of the booth, and it can move freely in any directions. The flexible swing arm allows the lamps to be in any position of the booth.

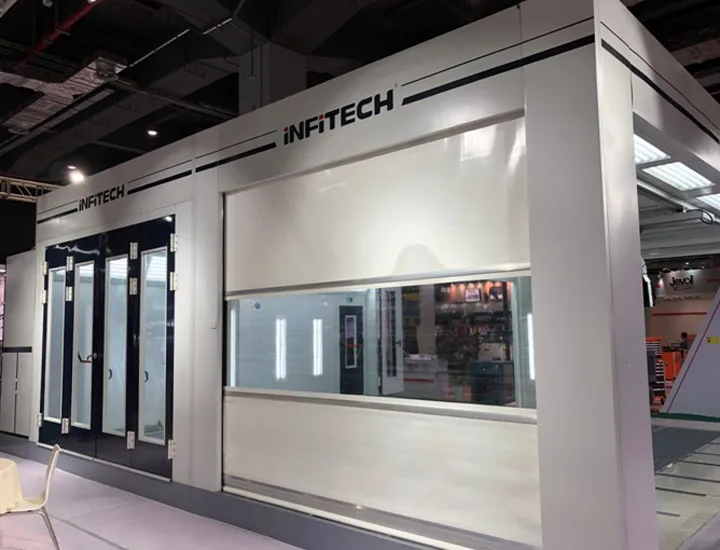

Electric soft curtain roll up door
- Soft curtain is made of and reinforced by high-strength mesh belt and streamlined fiberglass, flame retardant
- Observation window is flame retardant
- Sealing performance: the bottom end is configured with weighted cloth, it can combine with any possible unevenness of the ground, double-sided brush for sealing on both sides
- Lifting speed: 0.2m/s, can be controlled both internally and externally
INFITECH at automechanika shanghai
Company Information
Guangzhou Infitech is professional manufacturer of spray booth. What we supply is not only limited to manufacturing, but the whole solution from initial design and layout, technical consultation, manufacturing through to installation and maintenance. We pride ourselves in delivering customized products that suit your individual needs, both in terms of size and performance.
Why choose INFITECH?
1. Quality Control
We carry out strict quality control to ensure product quality, from supplier selection, incoming inspection, in-process inspection to pre-delivery inspection.
We listen to what our customers say and always look for ways to improve our product quality through continuous improvement.
2. ODM & OEM Ability
We can provide ODM & OEM services. We especially pride ourselves in project design and customized spray booth projects.
3. Parts Availability
We use international standard electric components and consumables.
And we keep stock of spare parts and make sure they are available whenever you need.
4. Good Warranty
Customer satisfaction and product quality are our first priority. We offer 2-year warranty for main components and attentive after-sales service.

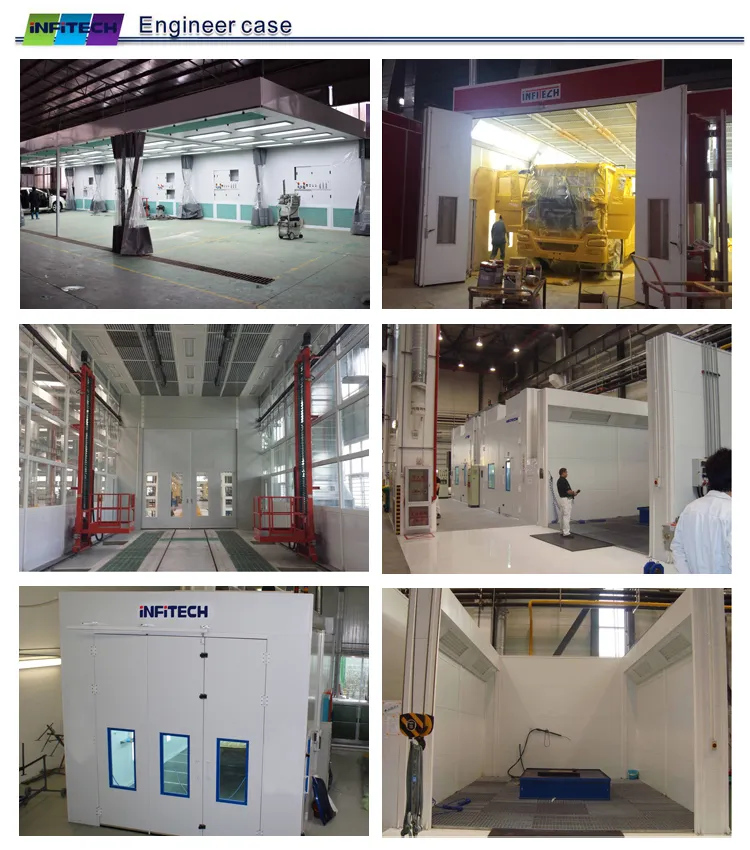

Engineering case
Welcome to contact us for business!
Mob: 86 159 2095 6253
