China High Quality Economical Paint Box, Spray Booth, Paint Booth

Product Description

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Outside Size(mm):	700053003500
Inside Size(mm):	690040002800
Front Door(mm):	3000(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks.
Service Door(mm):	650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit.
Total Power:	12 kw
Cabin System	Wallboard	Thickness: 50 mm, EPS material, tongue and groove interlock construction.
Basement		300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL).
Intake and exhaust system	Inlet Fan	Double-intake centrifugal fan, Capacity: 10500m³/h each.		Outlet Fan	Double-intake centrifugal fan, Capacity: 14500m³/h.
		Power: 3 kw			Power: 4 kw
		Quantity: 2 set			Quantity: 1 set
	Ducting	3 meters exhausted air duct, one flop damper, one weather hood.

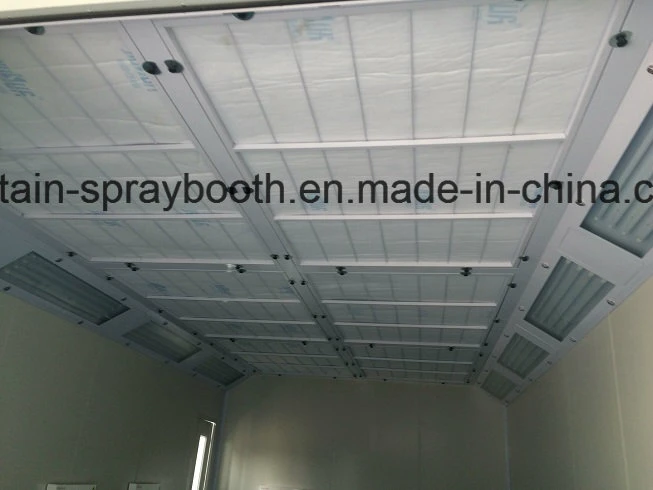

Purification System	G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter.
Heating System	Italy Baltut BT14 diesel burner, 140000Kcal/h.
	Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%.
	Chimney ducting		2 meters stainless ducting and one chimney elbow.
	Max temp: 80 degree centigrade, heating time: 5-8 min(20-60 degree centigrade),fuel consumption: 4-6 kg/ vehicle.
Lighting System	Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux.
Controlling System	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller.
Environmental System	G3 grade glass fiber floor filter.

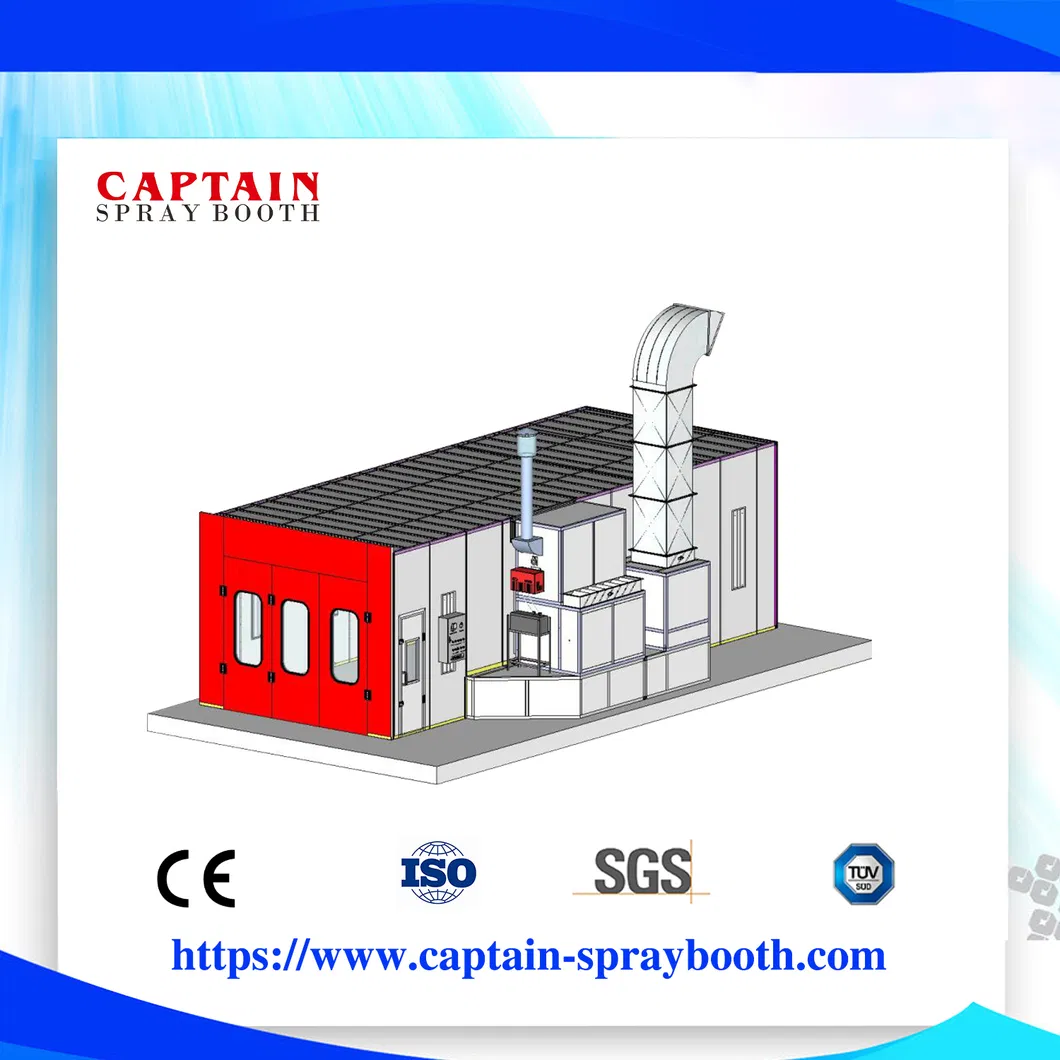

Basic Draw

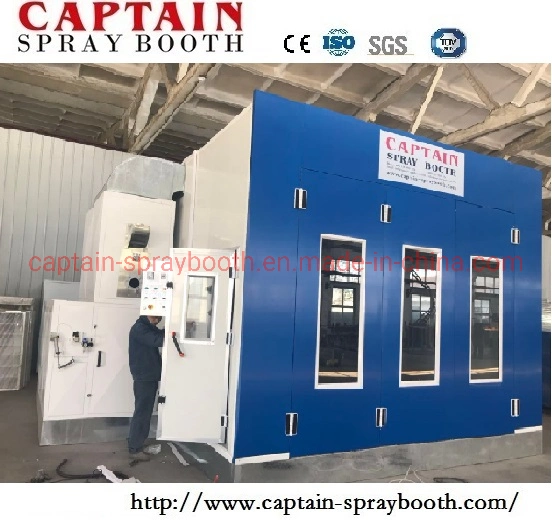

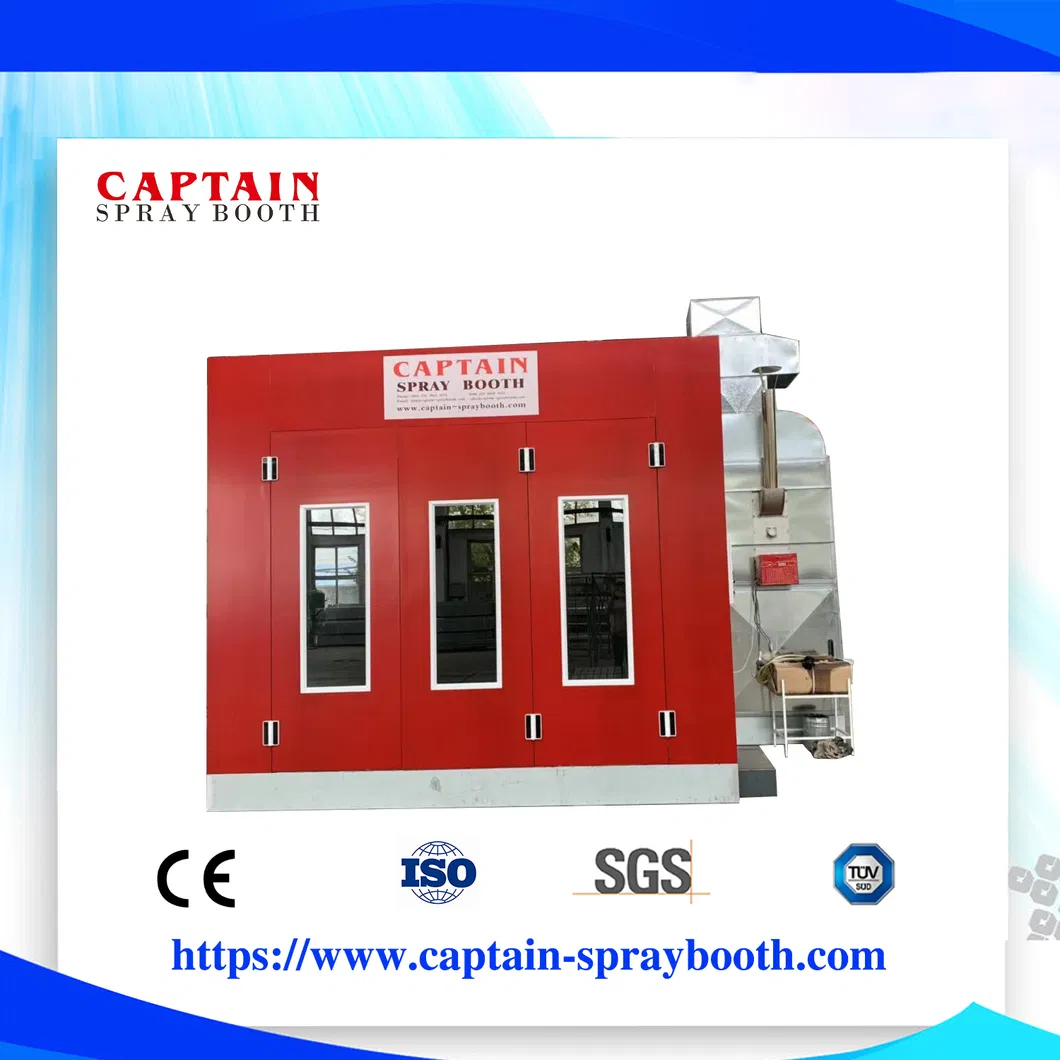

Front View

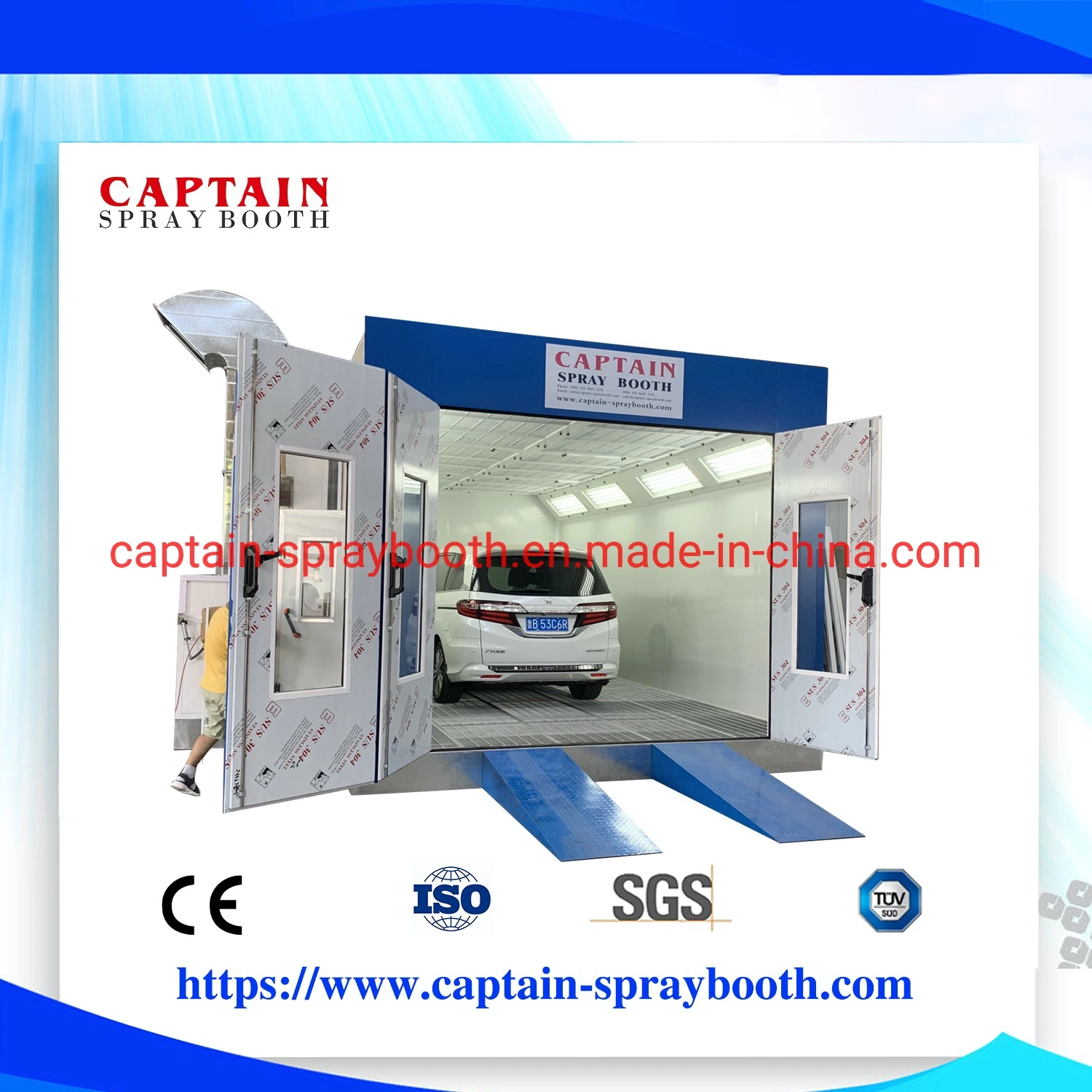

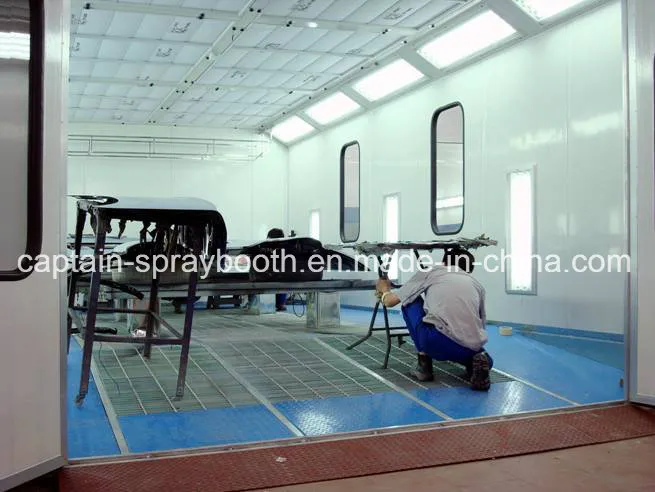

Inside view:

Product details:

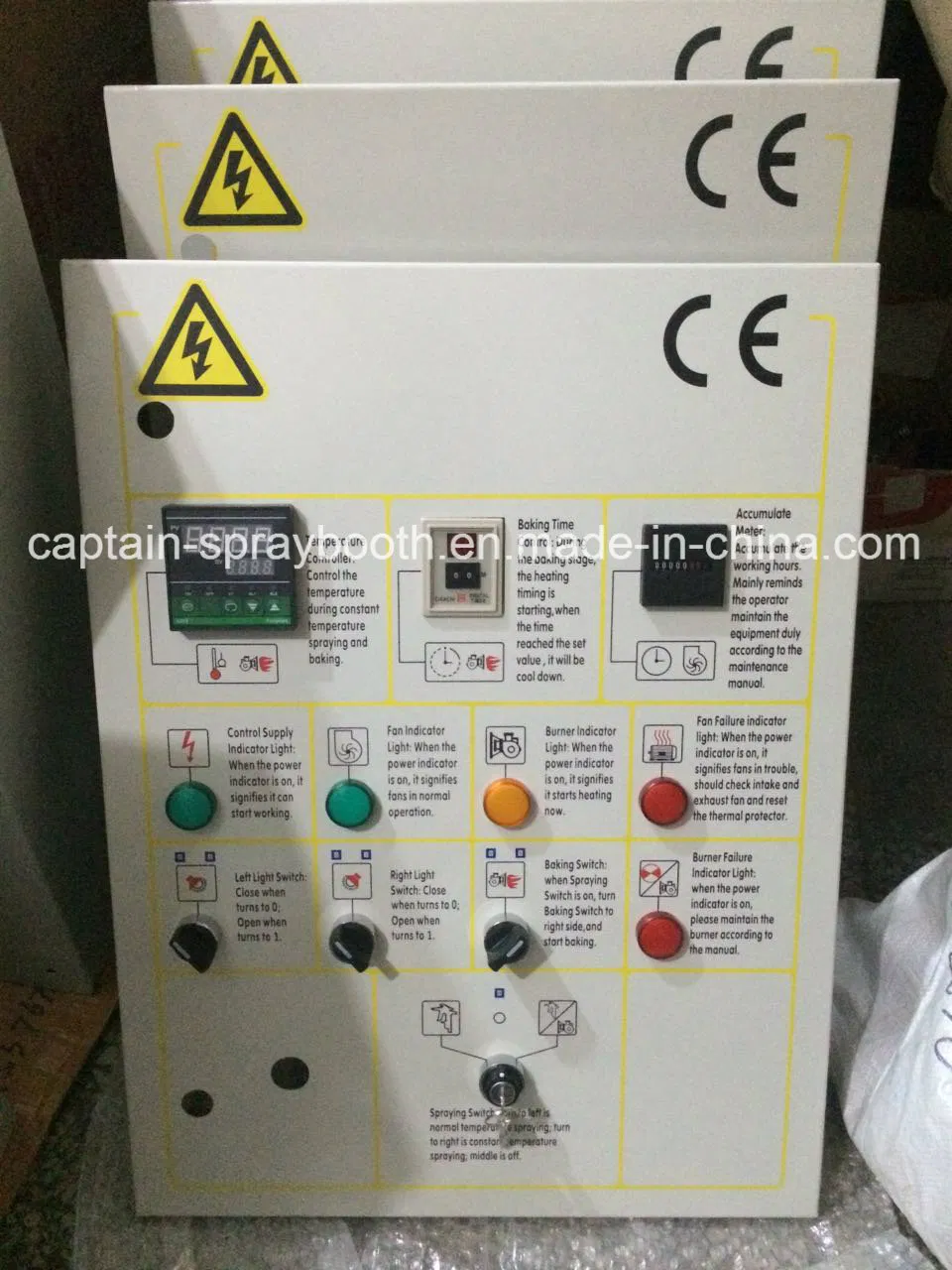

Control Box---main parts are from SCHNEIDER

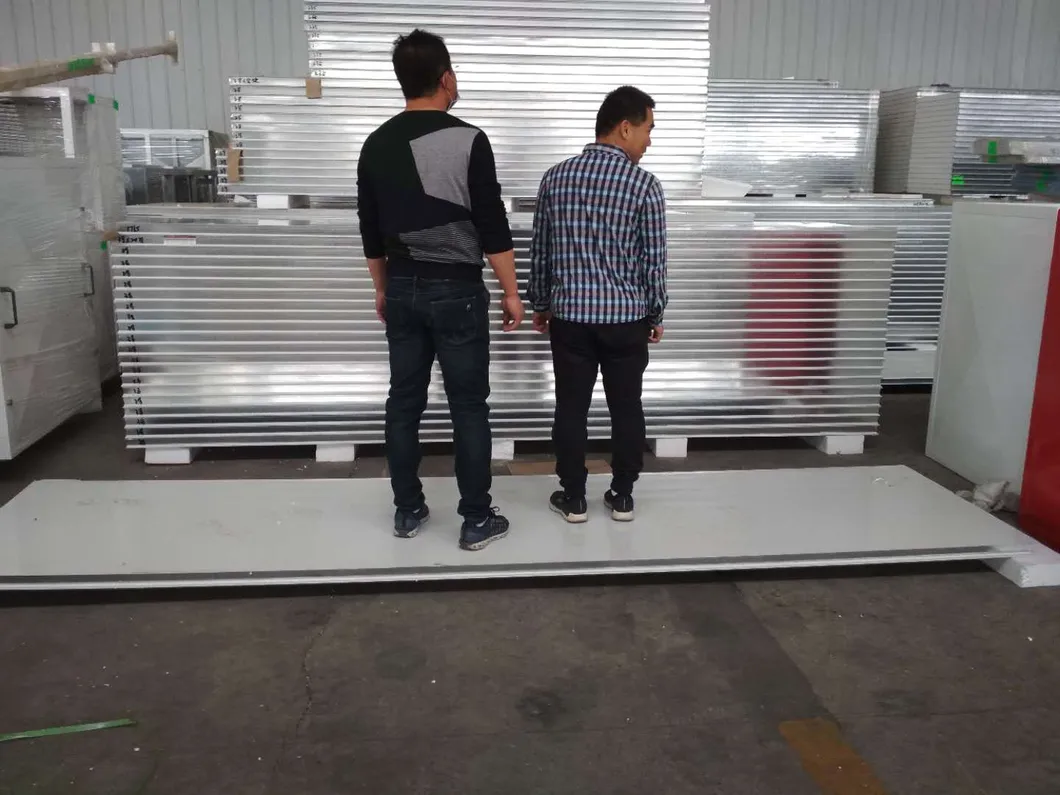

High Density Wall Panel

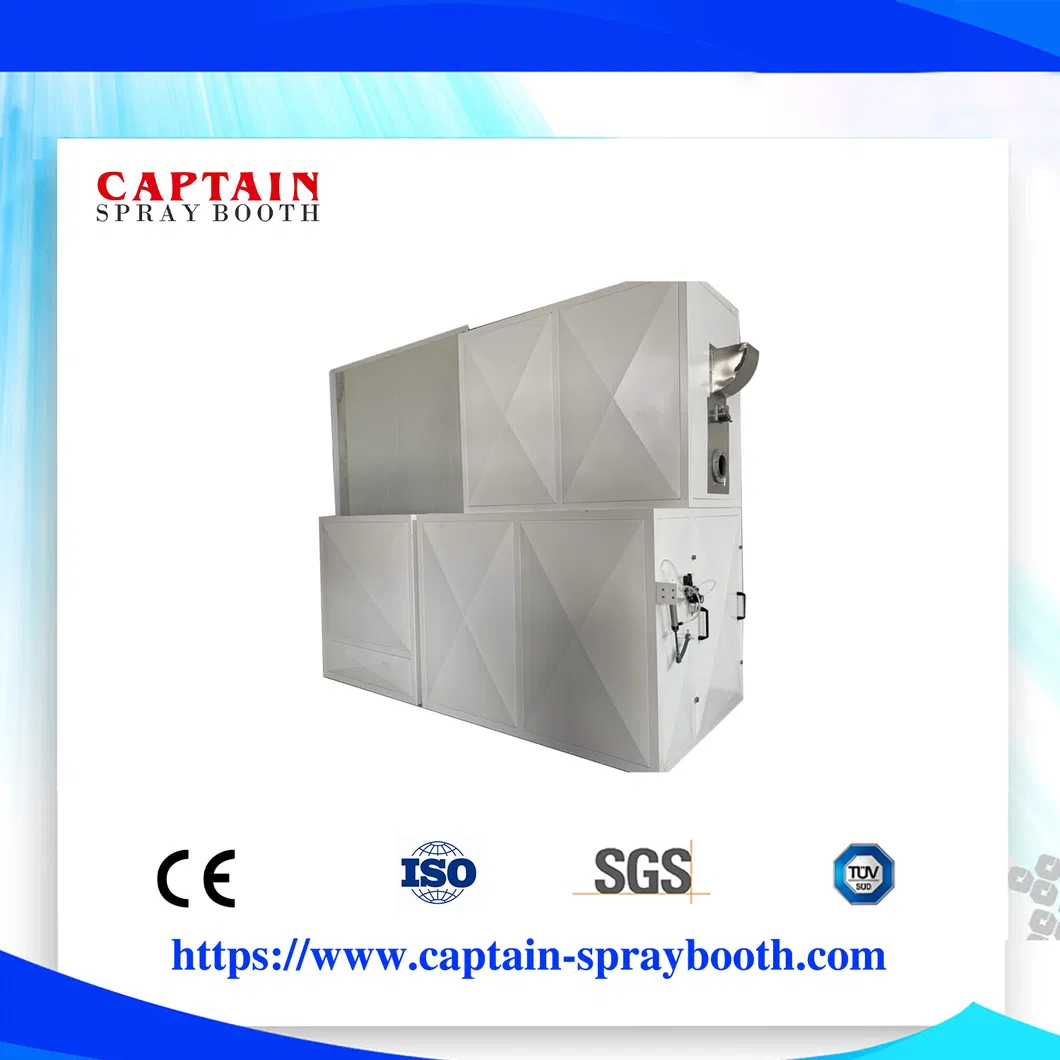

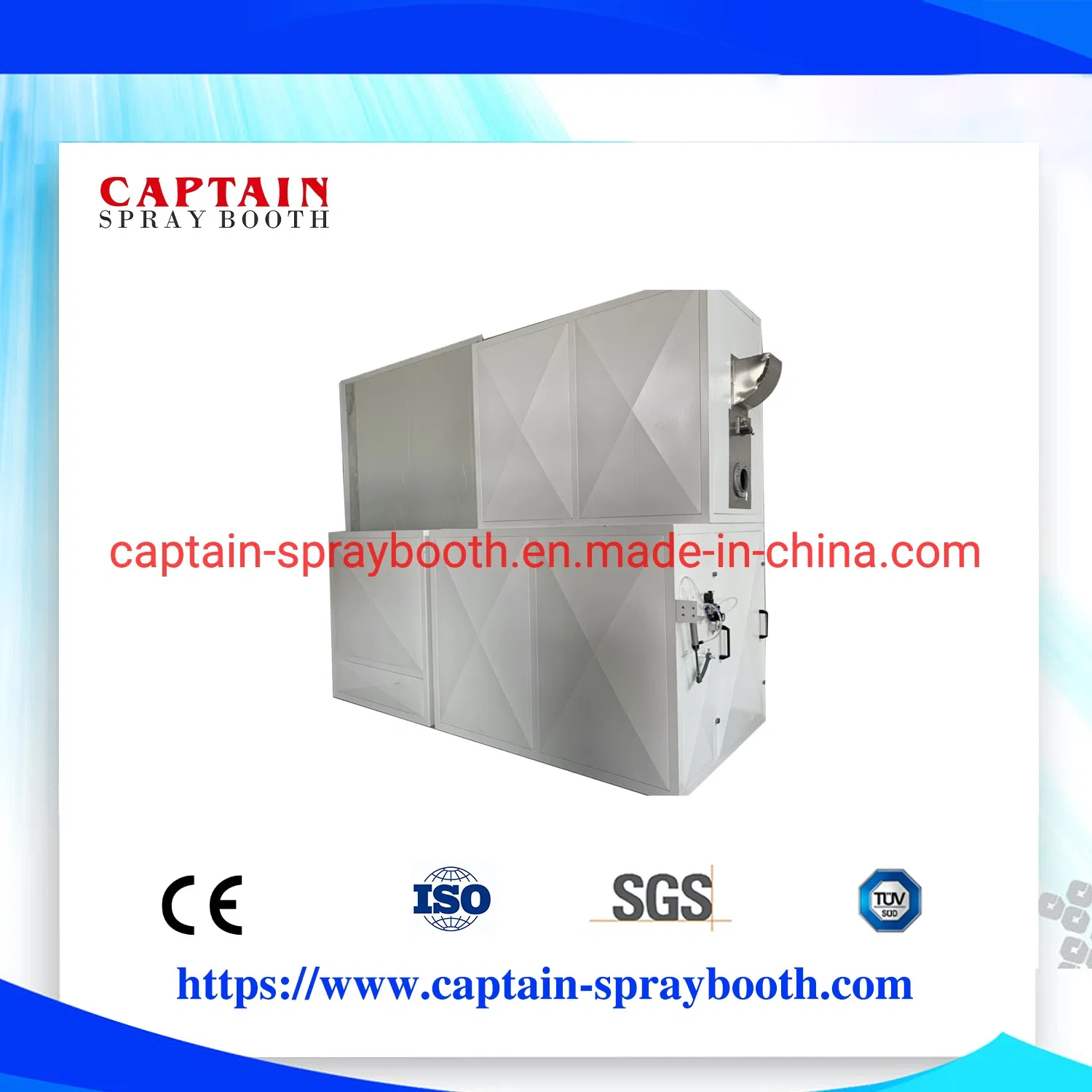

Fan Box--strong diamond shape with powder coating finishing

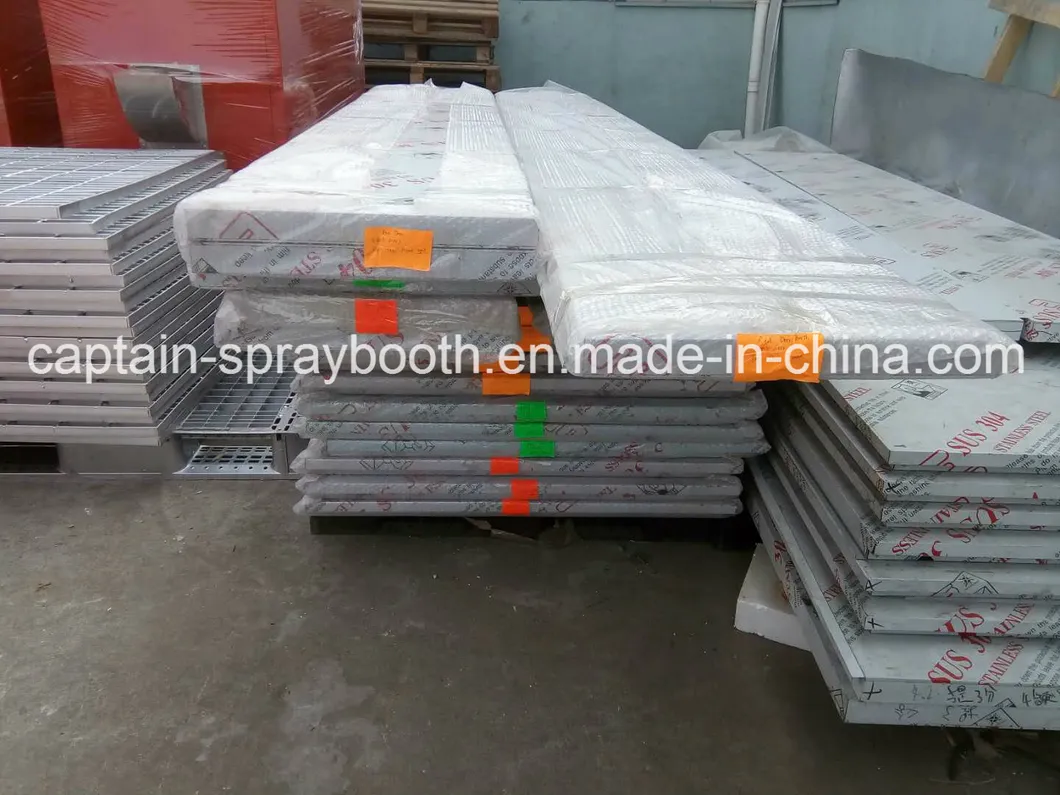

Package:

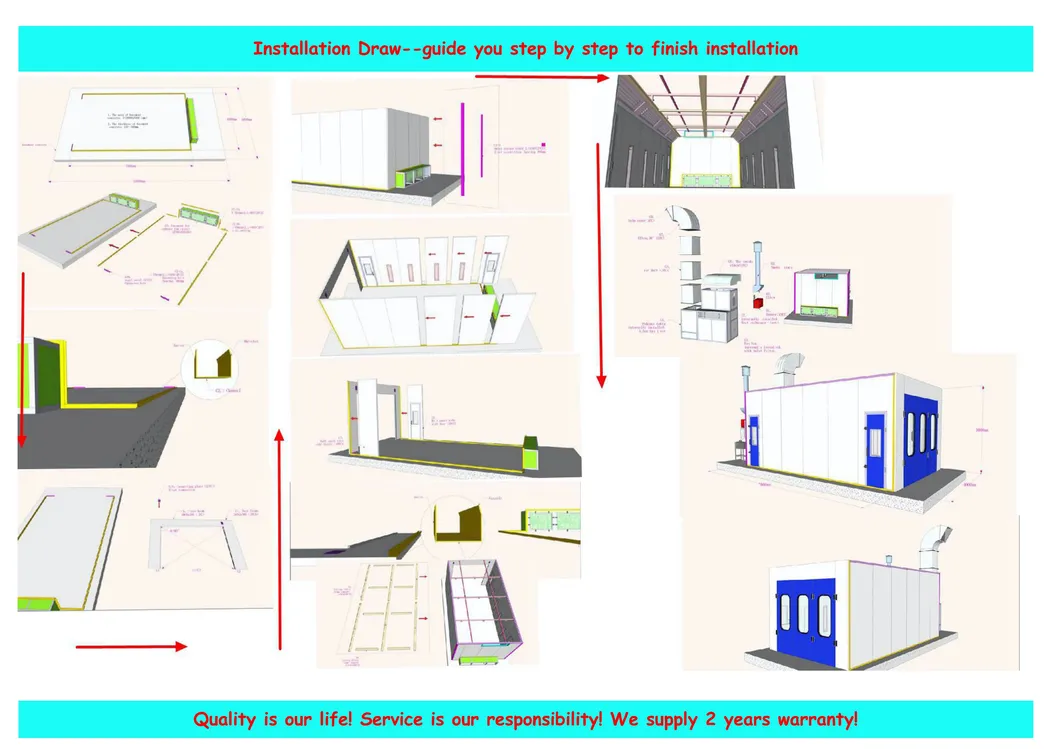

installation-we will give you installation draw to guide you

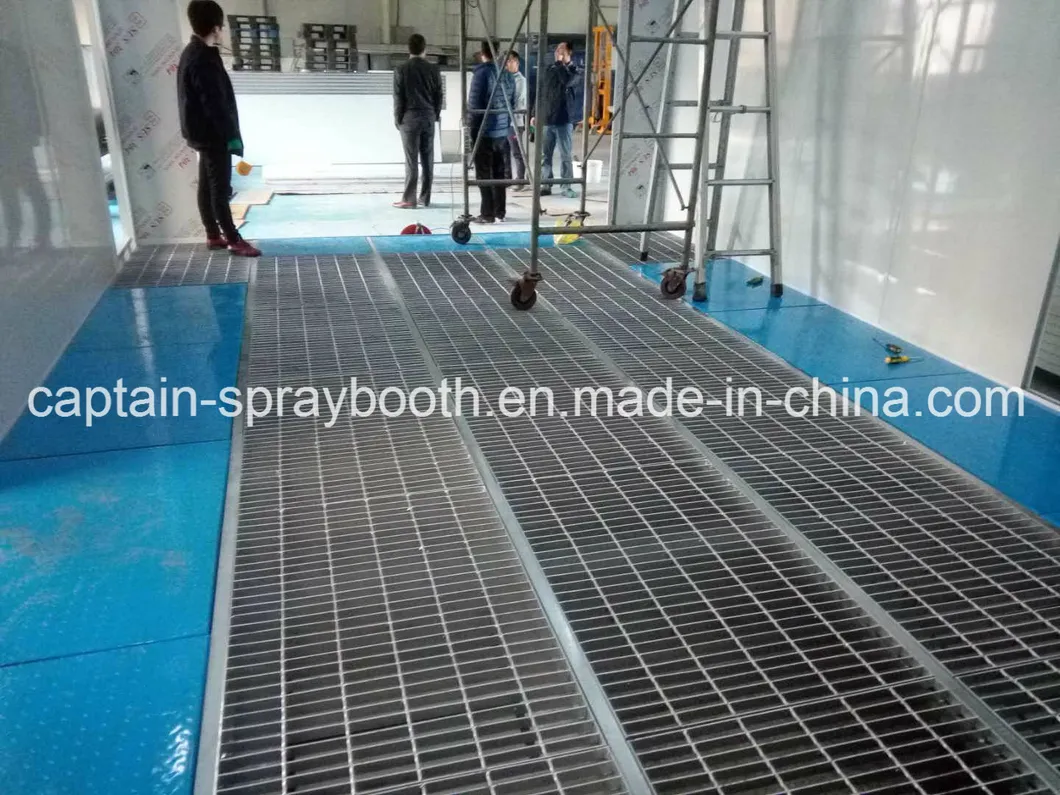

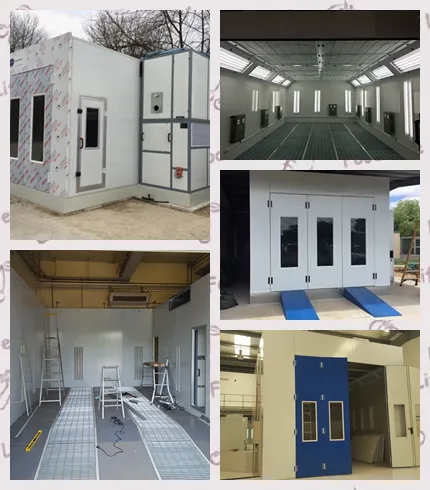

customer finished installation model

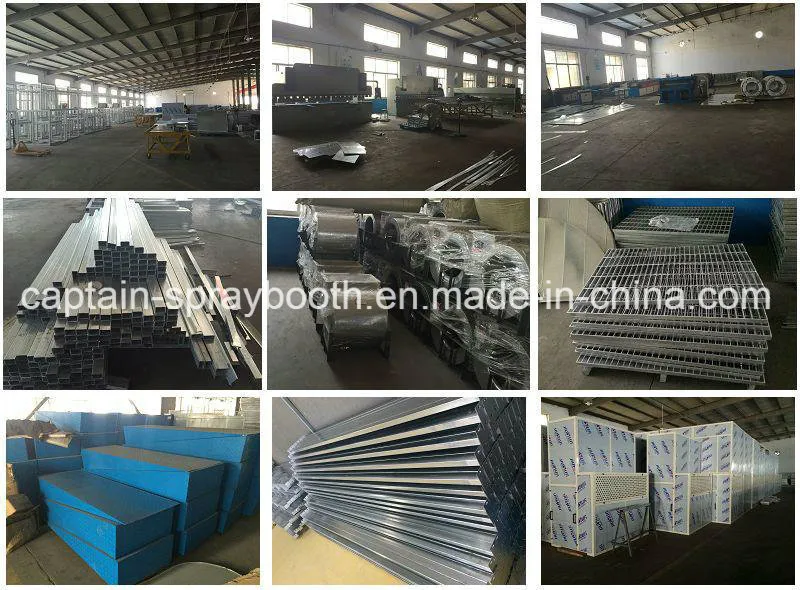

Workshop:

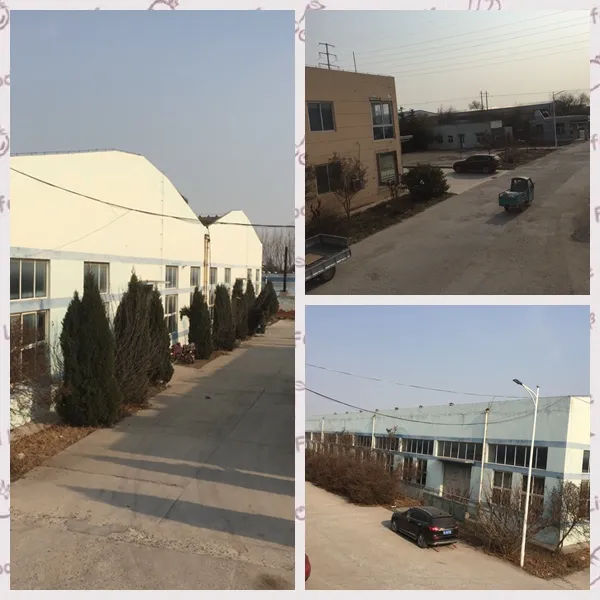

factory view

Delivery time : after received you payment ,we will produce , for this standard model ,
the delivery time is 2 weeks

Payment term: 30% TT IN ADVANCE , 70 % against copy of bill of lading

After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)

when your workers unloading the goods, If they find something damaged during transit by sea,
please take the pictures of the damage in the container and we will reissue you or give you some compensation.
(Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.
