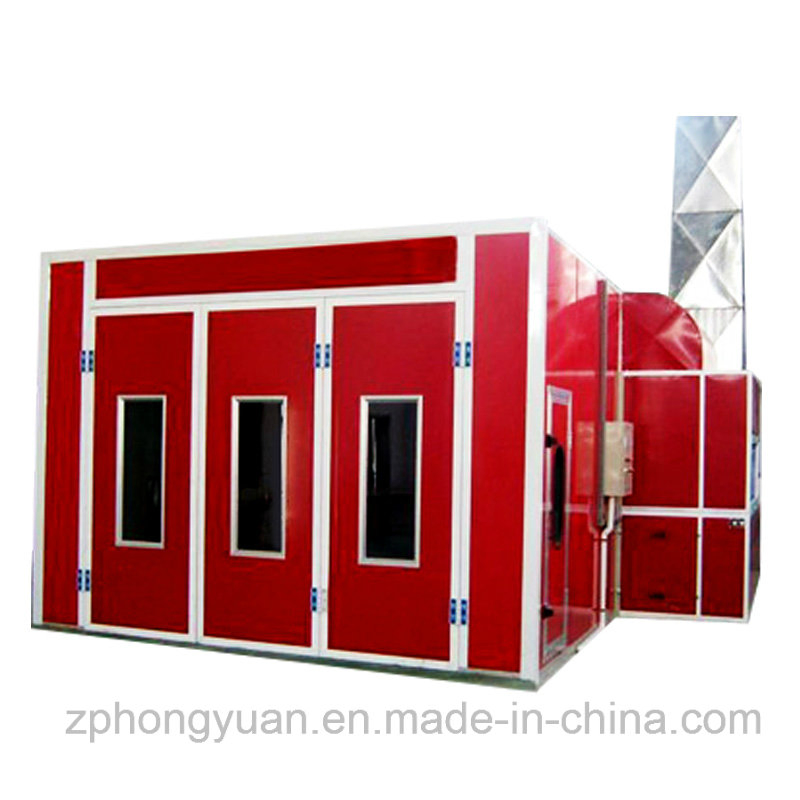

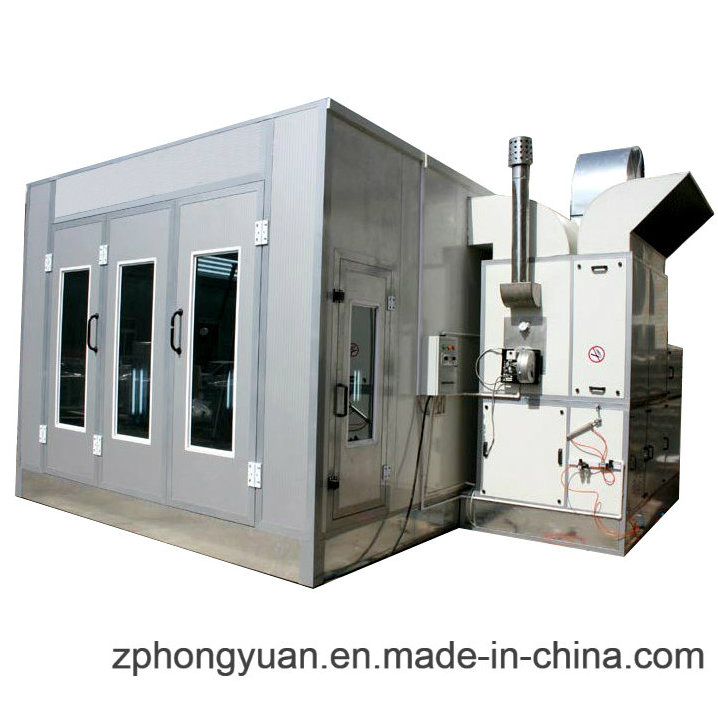

High Quality Car Bake Oven for Paint Spray Booth
Introduction of the High Quality Car Bake Oven for Paint Spray Booth1. full-down draft paint booth: 2. semi-down draft paint booth:3. side-down draft paint booth:4. cross-draft paint booth: Quick Specification of the High Quality Car Bake Oven for Paint Spray BoothModelHY-CB55AOutside Size(mm)7000(L......
Send Inquiry
Product Description
Introduction of the High Quality Car Bake Oven for Paint Spray Booth
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

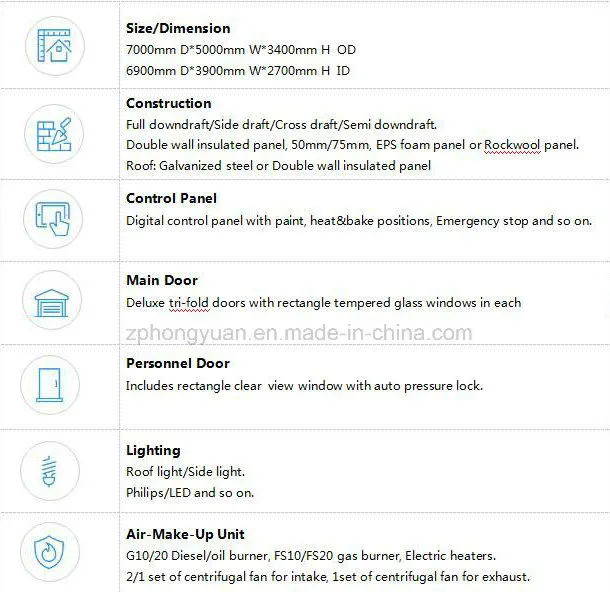

Quick Specification of the High Quality Car Bake Oven for Paint Spray Booth
details show of High Quality Car Bake Oven for Paint Spray Booth
parts show of High Quality Car Bake Oven for Paint Spray Booth
Production area and equipment for Baking Car Auto Paint Spray Booth Room for Sale
Package Show of Baking Car Auto Paint Spray Booth Room for Sale

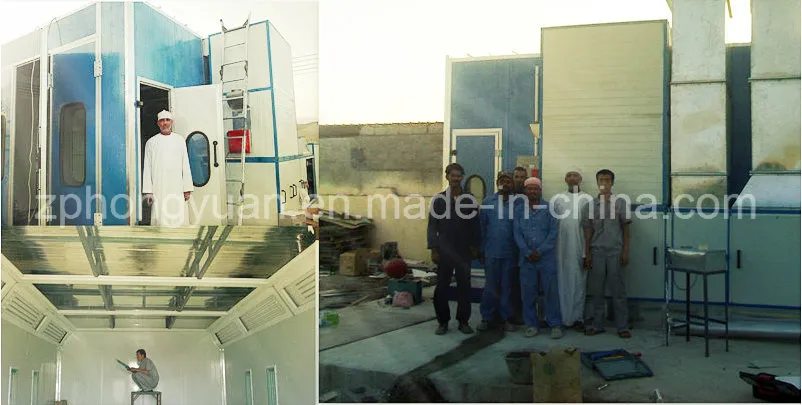

Installation abroad
Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time
Send us Inquiry about High Quality Car Bake Oven for Paint Spray Booth
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of the High Quality Car Bake Oven for Paint Spray Booth
| Model | HY-CB55A |
Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
Front Door(mm) | 3000*2600(W*H) |
Side Door(mm) | 650*1800(W*H) |
Total power | <15kW |
Voltage status | 380V/3ph&220V/1ph@50Hz |
Wall Panel | 50mm EPS foam panel |
Ceiling panel | Galvanized steel |
Basement&floor | Raised metal-base (300mm high) with 3rows of grates and 2rows of diamon plates. |
Intake | Two set of fan, motor: 4kW. |
Exhaust | One set of fan, motor: 5.5kW. |
By-pass | Pneumatic damper from spraying to baking cycle |
Heating System(Oil) | Italy Riello one-stage oil burner./gas burner/electricity. |
Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
Lighting | Upper lights, 8units, 4*36W each. |
Control System | 1set. |
details show of High Quality Car Bake Oven for Paint Spray Booth

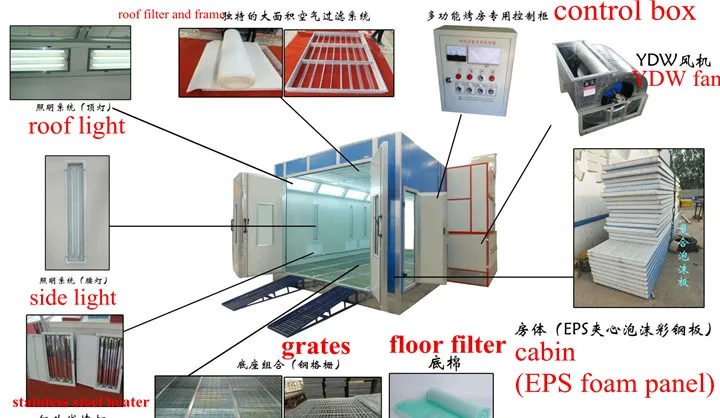

parts show of High Quality Car Bake Oven for Paint Spray Booth

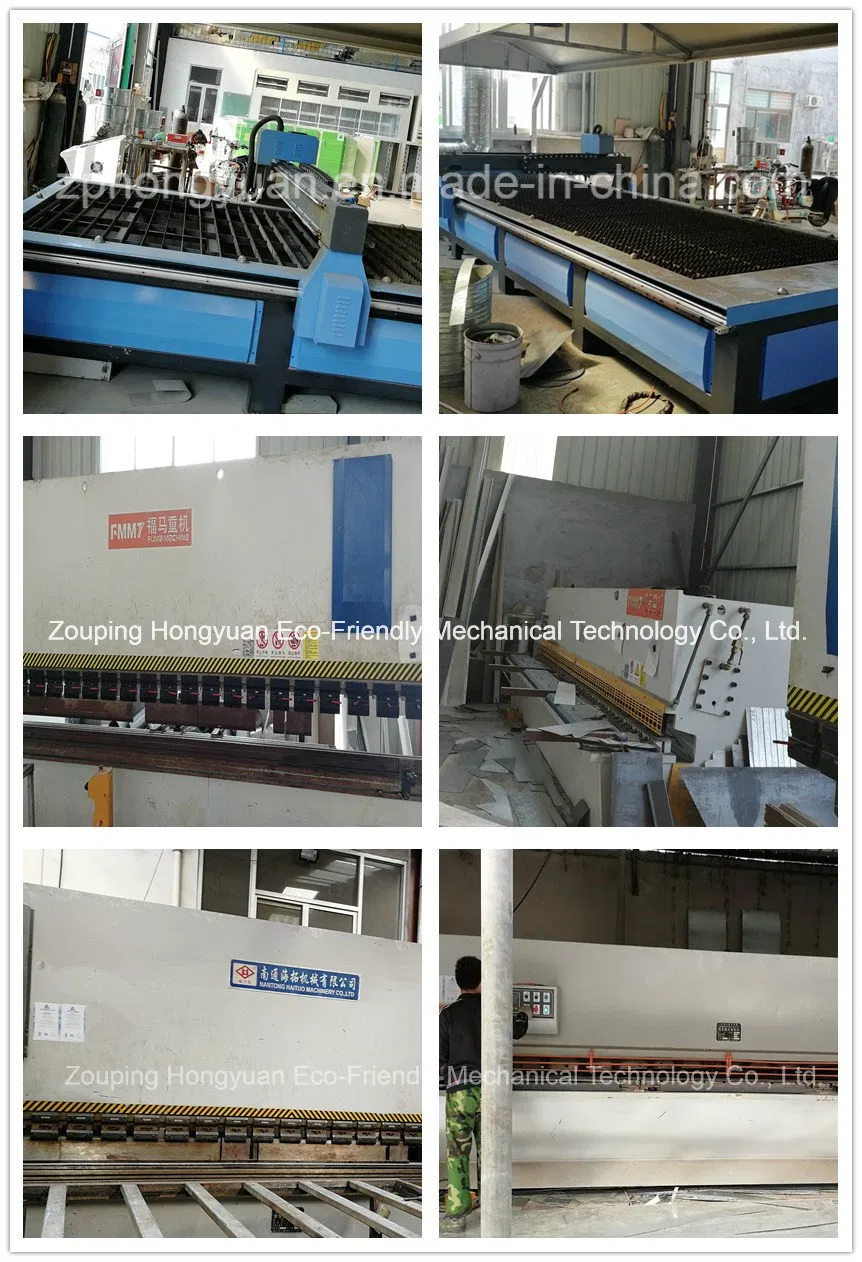

Production area and equipment for Baking Car Auto Paint Spray Booth Room for SalePackage Show of Baking Car Auto Paint Spray Booth Room for Sale
Installation abroad

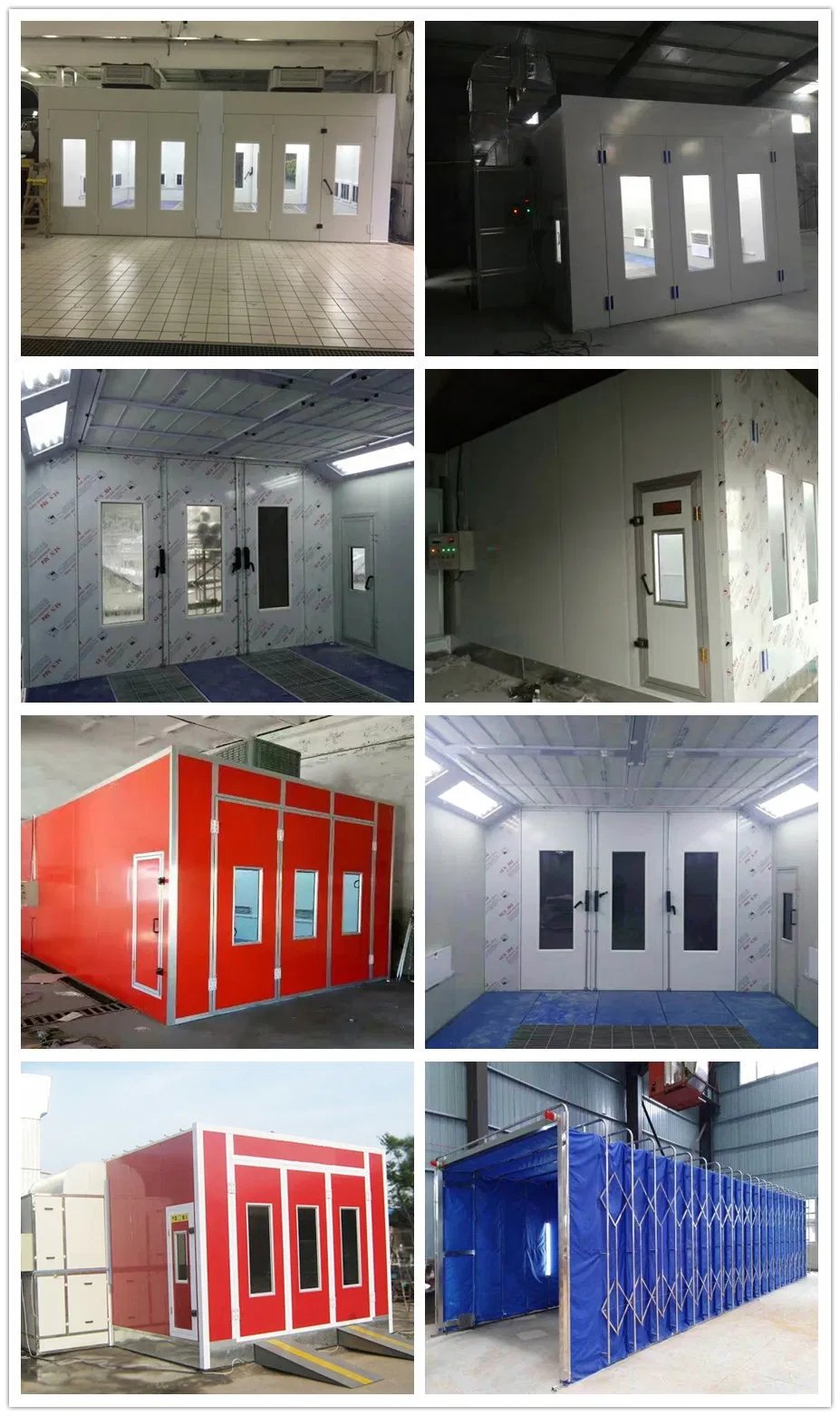

Project case for paint booth
Certificate of our product and company
Our Team is serving you at any time

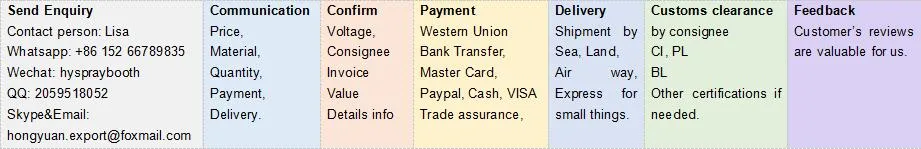

Send us Inquiry about High Quality Car Bake Oven for Paint Spray Booth
