Professional 1-10t Car Lift Elevator Car Parking System
Product DescriptionVRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving car from one foor to another, it is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size!Introducti......
Send Inquiry
Product Description
Product Description

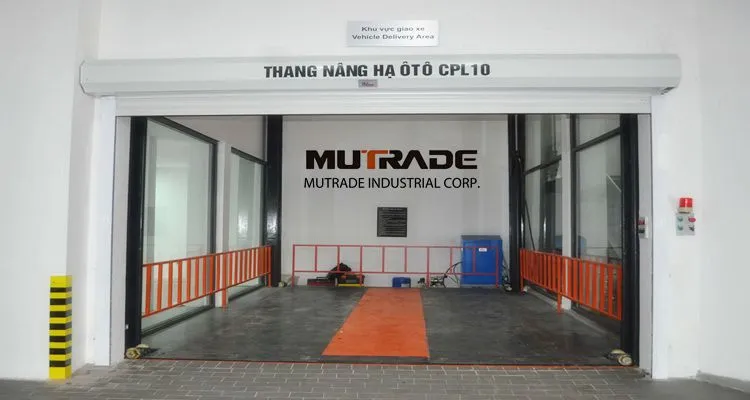

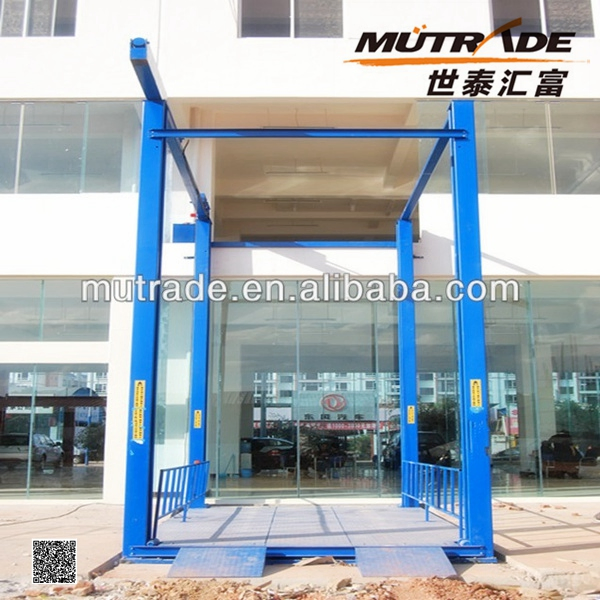

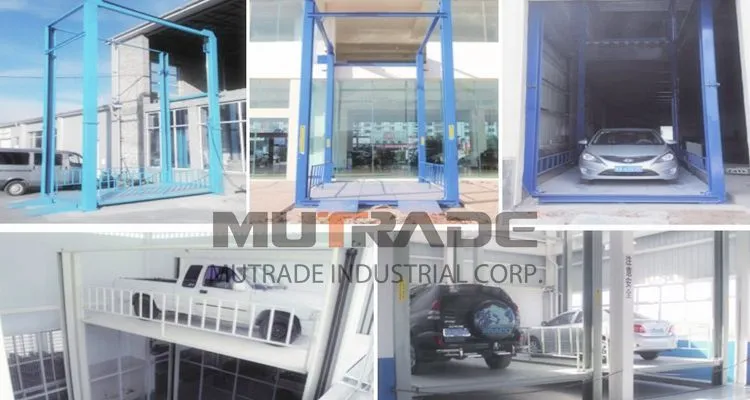

VRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving car from one foor to another, it is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size!
Introduction

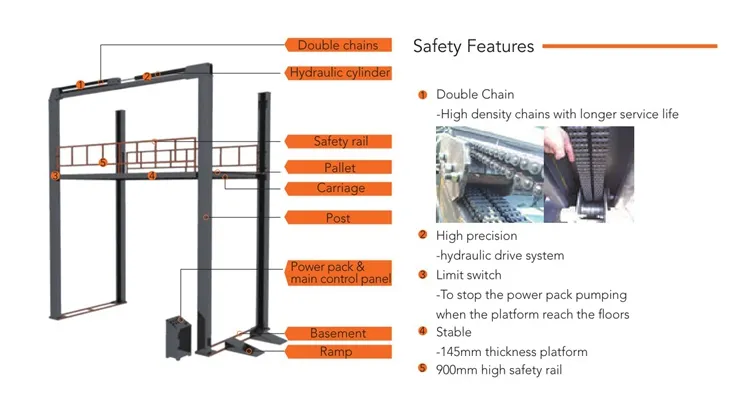

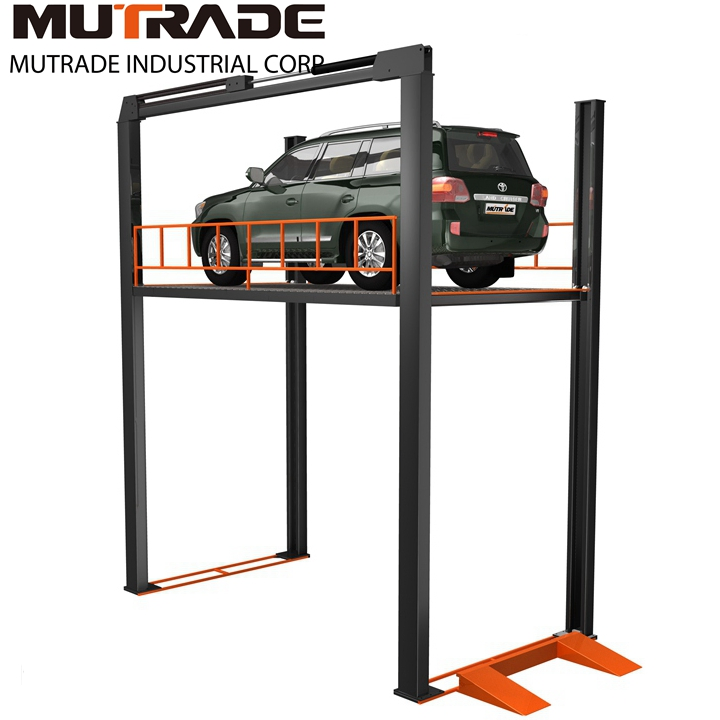

-FP-VRC is a kind of car or goods lift, and industry use vertical table lift
-Self-standing and self-support structure
-Hydraulic cylinder + steel chains drive system
-High precision and stable hydraulic drive system
-Automatic shut-off if operator releases the button switch
-Double chain design for higher safety
-High density chains with longer service lift
-Remote control is optional
-Top quality diamond steel plate
-Hydraulic overloading protection available
Packaging
At MUTRADE, we offer professional steel frame packaging for easy and stable container load. There are 2 types of different packaging:
Q & A
1. Is this product can be used indoor or outdoor?
FP-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and
looking.
3. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one
movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out.
4. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in
your city.
5. What is the warranty?
It's fve years for main structure and one year for moving parts.
6. What is the production time?
It's 30 days after prepayment and fnal drawing confrmed.
7. What is the shipping size? Is LCL acceptable, or it must be FCL?
As FP-VRC is a fully customized product, the shipping size depends on the specifcations you need.
As there are some electrical parts and hydraulic parts, and the packages for components are in different shapes, LCL cannot
be used. 20 feet or 40 feet container is necessary as per the lifting height.

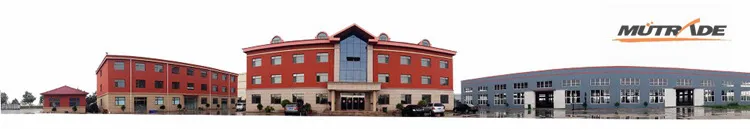

Our Company
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking equipment providers in China. We are committed to provide the most suitable and cost-effective parking equipment to our clients all over the world. We warmly welcome your visit.
Certifications
We have different certifcates for different markets.
Our Services
1. Three years guarantee for the whole machine and ten years for main structure.
2. Calling door to door service
3. Friendly English software, user manual or detailed drawing/CD.
4. To meet different user purposes, we provide customized service. Lifting capacity, lifting height, dimension of platform, color and so on is necessary. But, only quantities of order are available.

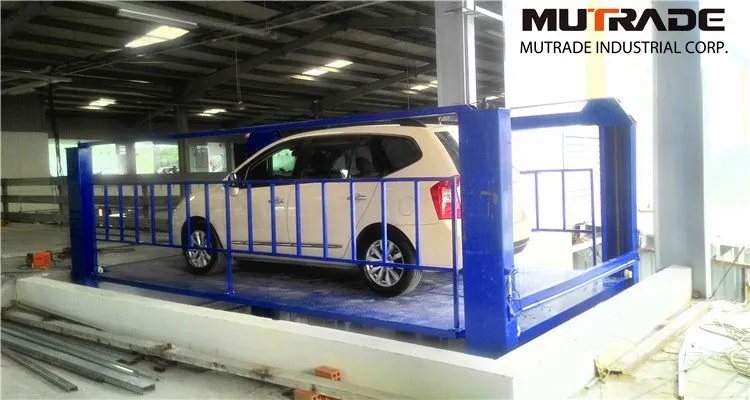

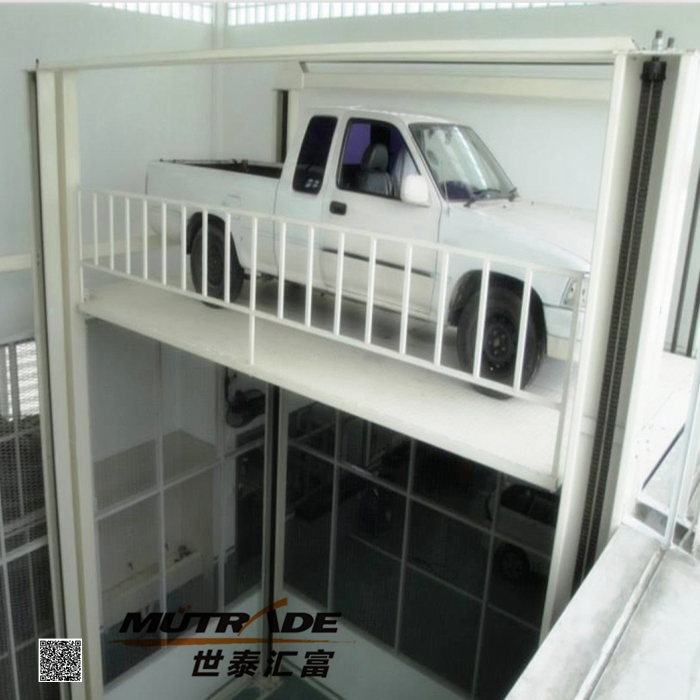

VRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving car from one foor to another, it is a highly customized product, which could be customized according to customers' different requirements from lifting height, lifting capacity to platform size!
Introduction
-FP-VRC is a kind of car or goods lift, and industry use vertical table lift
-Self-standing and self-support structure
-Hydraulic cylinder + steel chains drive system
-High precision and stable hydraulic drive system
-Automatic shut-off if operator releases the button switch
-Double chain design for higher safety
-High density chains with longer service lift
-Remote control is optional
-Top quality diamond steel plate
-Hydraulic overloading protection available
| Model | FP-VRC |
| Lifting capacity | 2,000-10,000 kg* can be customized according to your requirement |
| Lifting height | 2,000-13,500mm* can be customized according to your requirement |
| Platform length | 2000mm-6000mm* can be customized according to your requirement |
| Platform width | 2000mm-5000mm* can be customized according to your requirement |
| Platform material | Diamond steel sheet (standard) / 4mm Aluminum steel sheet (optional) |
| No. of level | according to your requirement |
| Drive mode | Hydraulic(cylinder with double steel chains) |
| Operation | button switch (standard) / remote controller (optional) |
| Power pack | 4 kw hydraulic power pump |
| Lifting speed | 4m/min |
| Safety device | Mechanical anti-falling lock |
| Finishing | Paint spray |
| Color | according to your requirement |
Packaging
At MUTRADE, we offer professional steel frame packaging for easy and stable container load. There are 2 types of different packaging:
Q & A
1. Is this product can be used indoor or outdoor?
FP-VRC can be installed both indoor and outdoor as long as the site dimensions are enough.
2. What is the surface fnishing for this product?
It's paint spray as standard treatment, and optional aluminum steel sheet can be covered above for better water-proof and
looking.
3. What is the power requirements? Is single phase acceptable?
Generally speaking, a 3-phase power supply is a must for our 4Kw motor. If the usage frequency is low (less than one
movement per hour), a single phase power supply can be used, otherwise it may lead to motor burnt out.
4. Can this product still operate if electricity failure happens?
Without electricity the FP-VRC cannot work, so a back-up generator may be needed if electricity failure happens often in
your city.
5. What is the warranty?
It's fve years for main structure and one year for moving parts.
6. What is the production time?
It's 30 days after prepayment and fnal drawing confrmed.
7. What is the shipping size? Is LCL acceptable, or it must be FCL?
As FP-VRC is a fully customized product, the shipping size depends on the specifcations you need.
As there are some electrical parts and hydraulic parts, and the packages for components are in different shapes, LCL cannot
be used. 20 feet or 40 feet container is necessary as per the lifting height.
Our Company
Qingdao Mutrade Co., Ltd. is one of the earliest professional mechanical parking equipment providers in China. We are committed to provide the most suitable and cost-effective parking equipment to our clients all over the world. We warmly welcome your visit.
Certifications
We have different certifcates for different markets.
Our Services
1. Three years guarantee for the whole machine and ten years for main structure.
2. Calling door to door service
3. Friendly English software, user manual or detailed drawing/CD.
4. To meet different user purposes, we provide customized service. Lifting capacity, lifting height, dimension of platform, color and so on is necessary. But, only quantities of order are available.
