Product Description

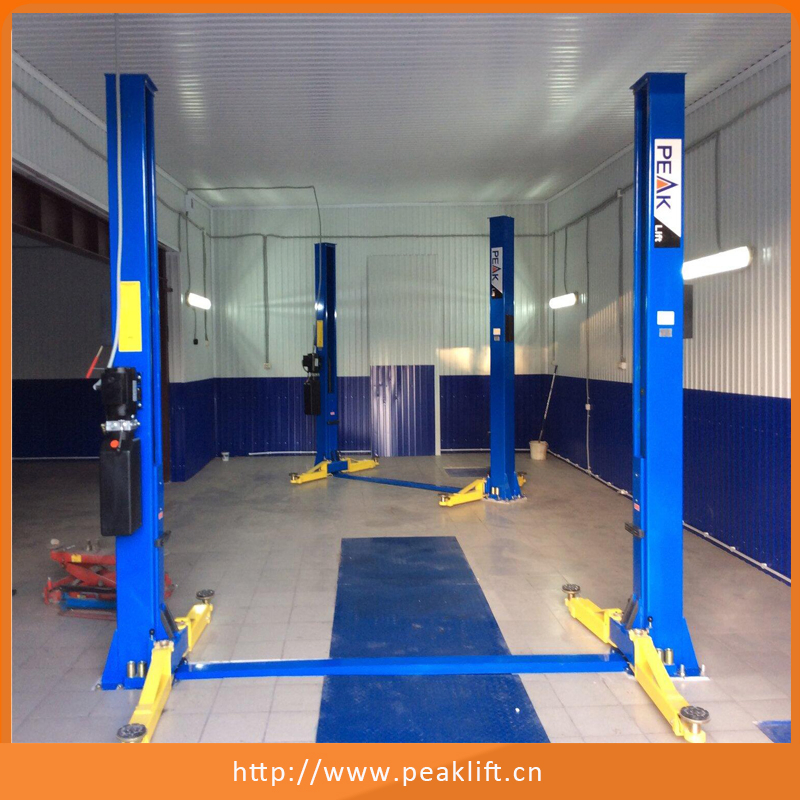

Heavy Duty Base Plate Two Post Auto Car Lift with CE
Feature
• 12,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.

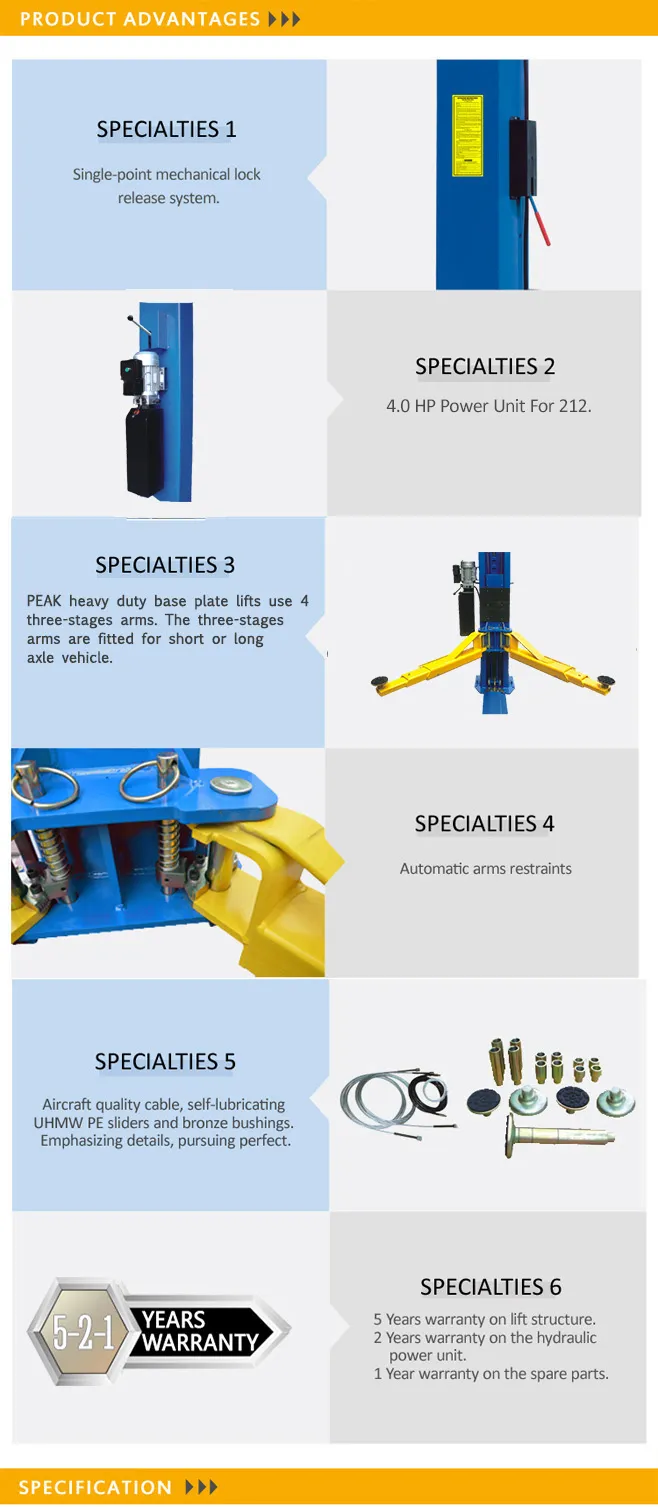

• Single-point safety release, and dual safety design.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.

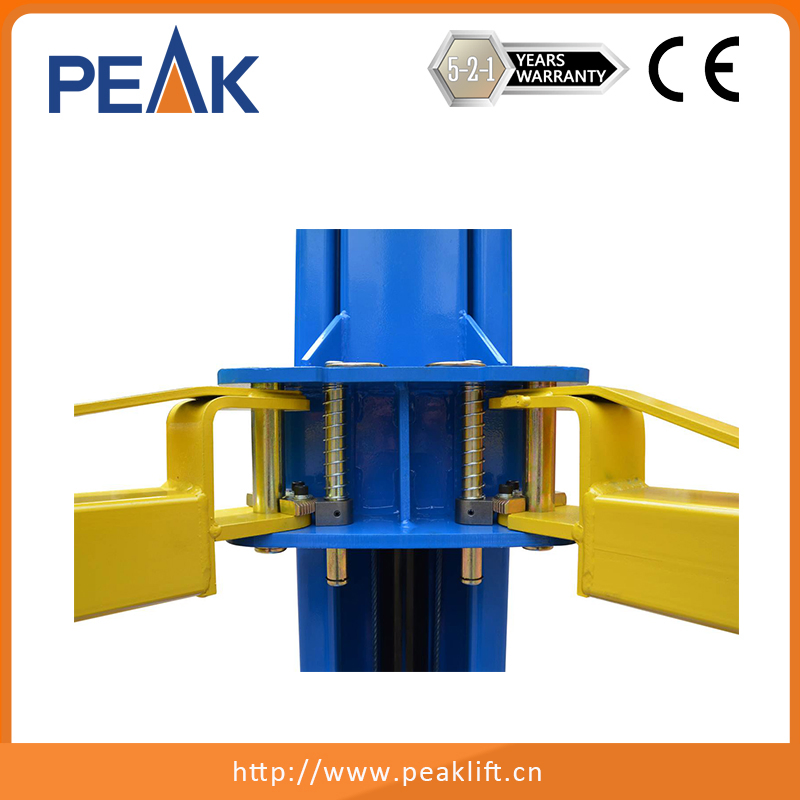

• Automatic arms restraints.
• Width adjustment: Distance between columns 3137mm(123 1/2") and 3000mm(118 1/8")

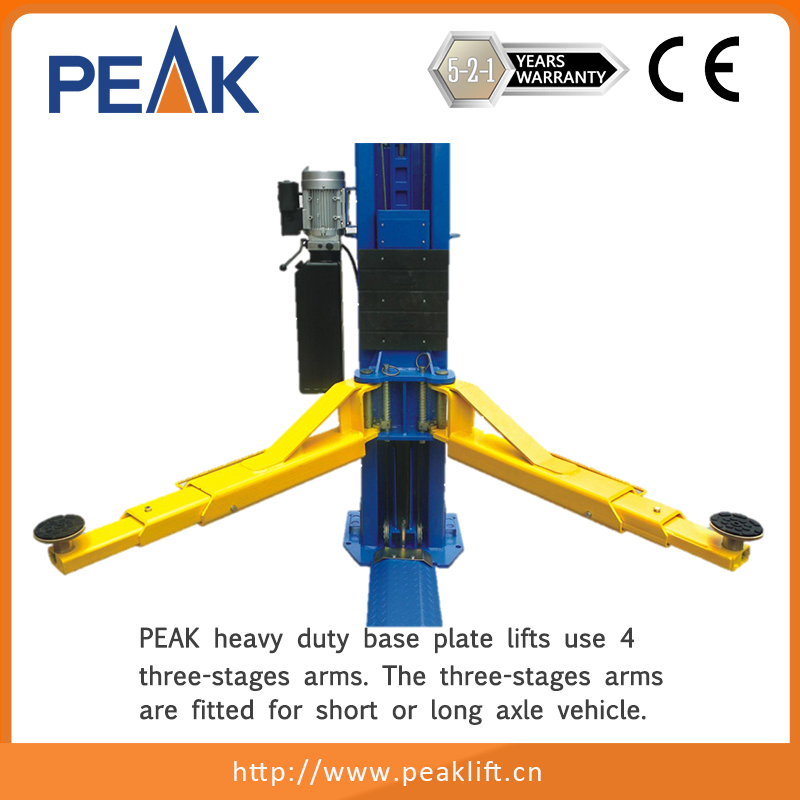

• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Heavy Duty Base Plate Two Post Auto Car Lift with CE
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
Feature
• 12,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
• Automatic arms restraints.
• Width adjustment: Distance between columns 3137mm(123 1/2") and 3000mm(118 1/8")
• Hydraulic power unit.
•Long warranty period: 5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
Heavy Duty Base Plate Two Post Auto Car Lift with CE

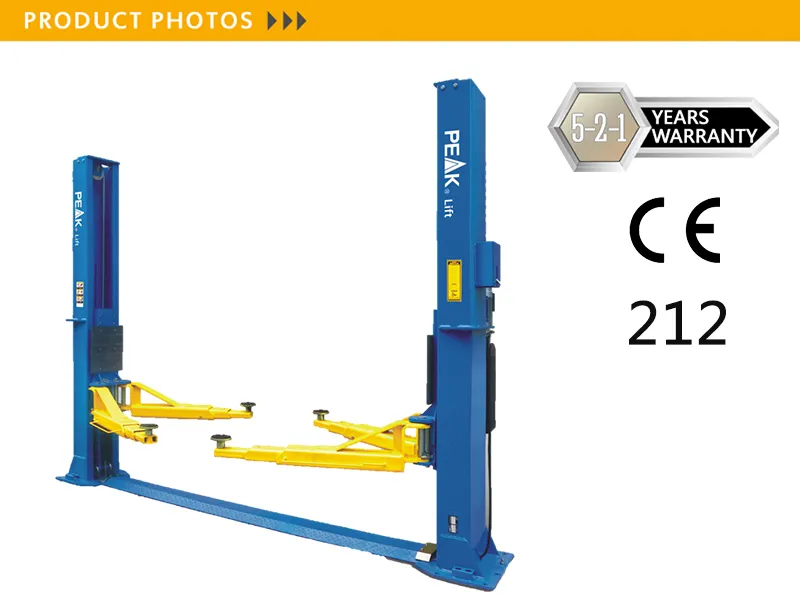

| Model | 212 | ||
| Style | Thin Plate Type Chain-drived | ||
| Lifting Capacity | 5.5T (10,000lbs) | ||
| Lifting Time | 55 Seconds | ||

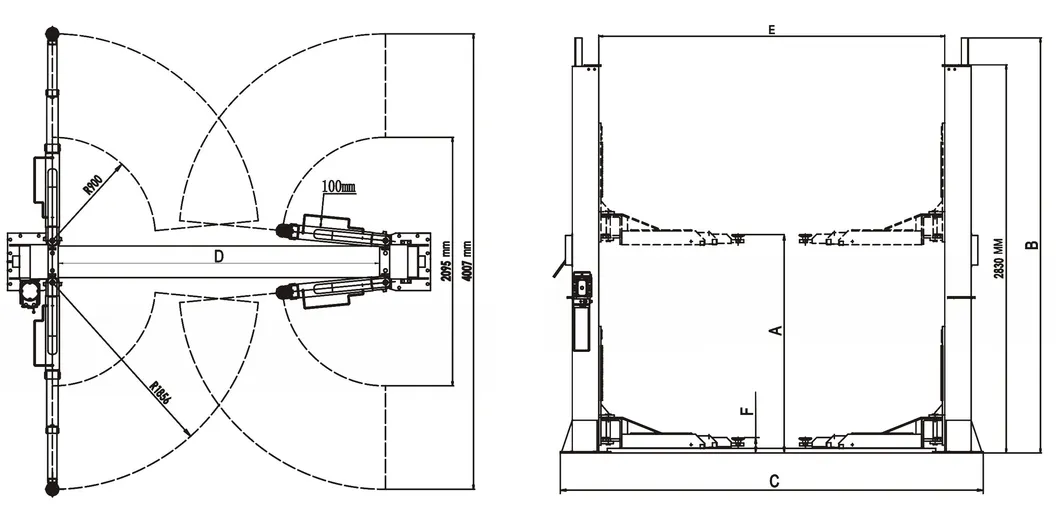

| A | Lifting Height | 1860-2089mm(73 1/4" - 82 1/4") | |
| B | Overall Height | 3065mm(120 5/8") | |
| C | Overall Width | 3692/3829mm(145 3/8"- 150 3/4") | |
| D | Drive-Thru Clearance | 2790/2927mm(109 7/8" - 115 1/4") | |
| E | Width Between Columns | 3000/3137mm(118 1/8"-123 1/2") | |
| F | Minimum Pad Height | 105mm(4 1/8") | |
| Gross Weight | 1034kg(2279lbs) | ||
| Motor | 4.0HP | ||
| Packing Dimension | 2920 X 570 X 975 mm | ||
| QTY of Container | 16 Units/20'GP | ||
| 32 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
