Car Scissor Lift Platform/Underground Scissor Lift Table
Car scissor lift paltform/Underground parking spaces Application:- The hydraulic scissor lift with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.- Operation is easy. There are 2 sets control system installed on the Hydrauli......
Send Inquiry
Product Description
Car scissor lift paltform/Underground parking spaces
Application:
- The hydraulic scissor lift with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the Hydraulic car lift portable garage , 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The hydraulic scissor lift can be customized as your detailed size. | |||||
Configuration:
| Load capacity | 3000kgs (below platform) 3000kgs (upper platform) |
| Platform size | 5.2m x 2.6m (below platform) 5.2m x 2.6m (upper platform) |
| Lift height | 2.89m |
| Height between platforms | 2.89m |
| Platform Material | 120mm*60mm rectangular tube +6mm checkered iron |
| Scissor material | 200mm*100mm*15mm high strength Manganese Steel |
| Hydraulic system | 380V/5.5Kw |
| High Precision Hydraulic Cylinder | 110*4sets |
| Piston Rod | 70*4 hard chromium plating surface |
| Hydraulic oil | summer 46#, winter 32# |
| Controller | 1 control box below, 1 control panel above platform |
| We can according to your request for your custom. | |
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps hydraulic scissor lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the hydraulic scissor lift are passed 1.2 times loading test before leaving factory.

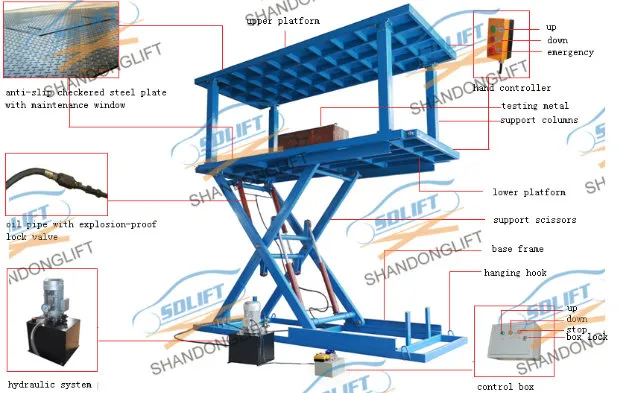

Parts Showing:
Our services:
1) User-friendly English manual for machine installation using and maintenance.
2) 2 sets spare parts as additional and free for you together with lift in shipment.
3) 2 years warranty for whole machine without man-made faults.
4) We will send you parts for free if there are any non-human factors faults during warranty time.
5) Supply 24-hours technical assistance by email, telephone or other communication online.
6) Engineers are available to your country if necessary.
