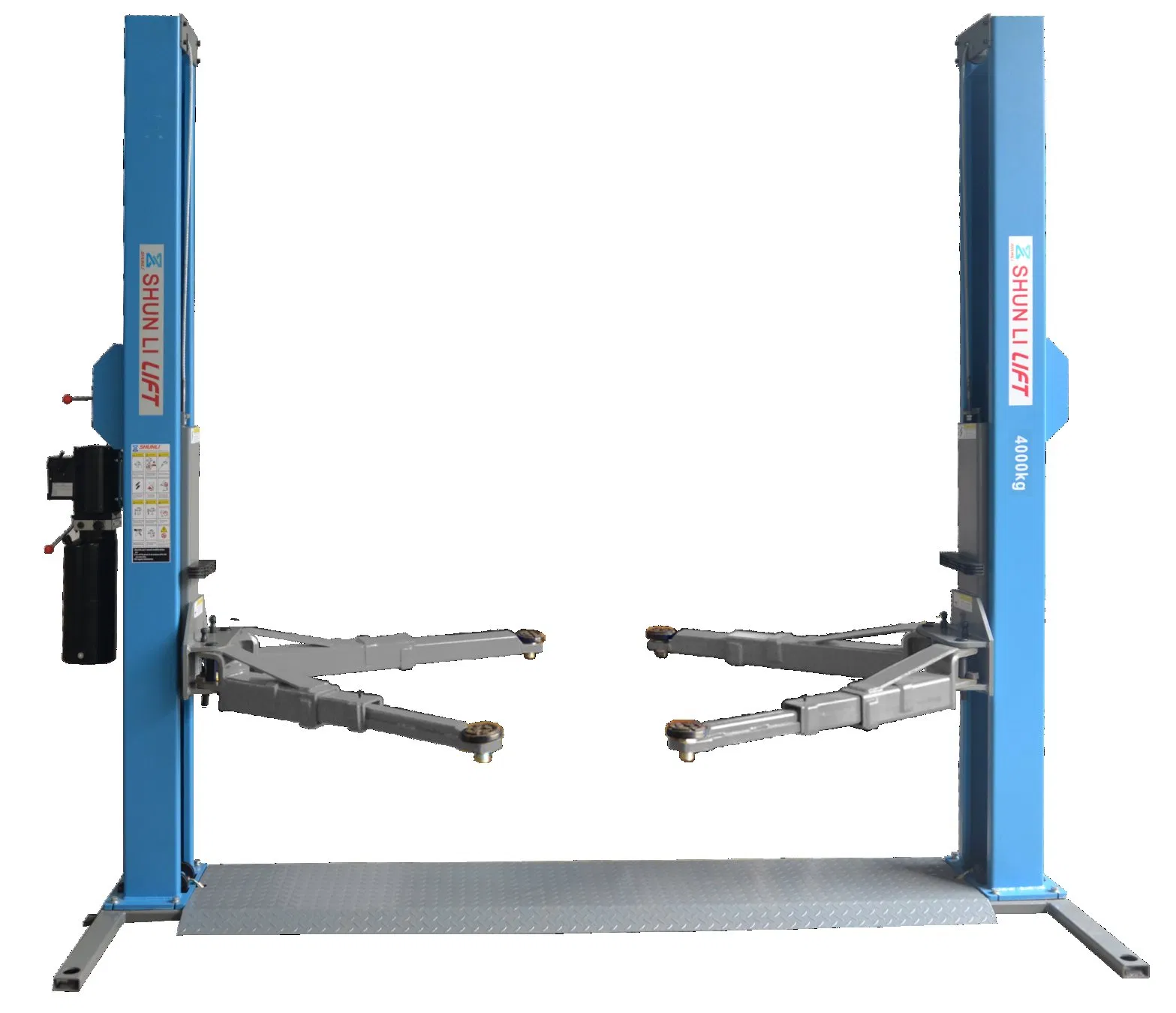

4.0t Electrical Release Floorplate 2 Post Car Lift 240d
Product Features: 1.Driven......
Send Inquiry
Product Description
Product Features:
1.Driven by double hydraulic cylinders, steel wire chain-type elevating system.
2. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.

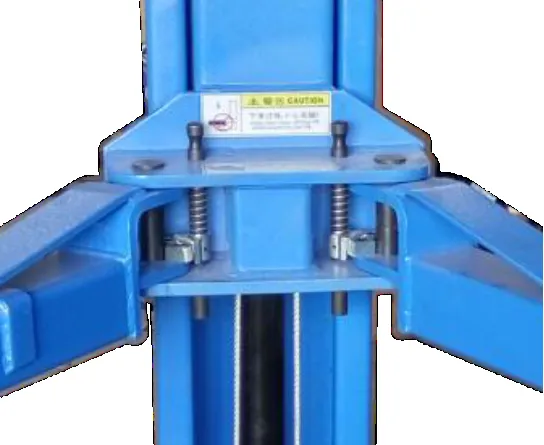

3.Automatic arm safety lock and hook type post lock.

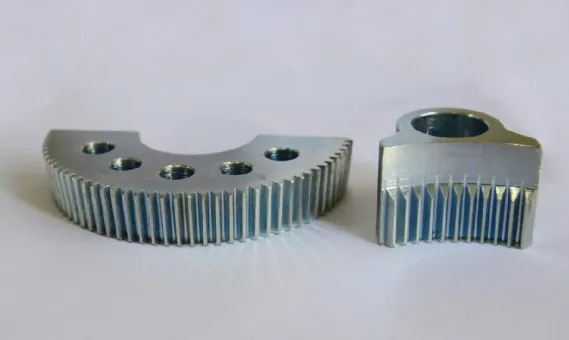

4. Single side control both side unlocked safety, arm locks with tooth type ratchet,multi-safety device,more reliable. 5.Shot blasting and high temperature baking powder coated surface finish.

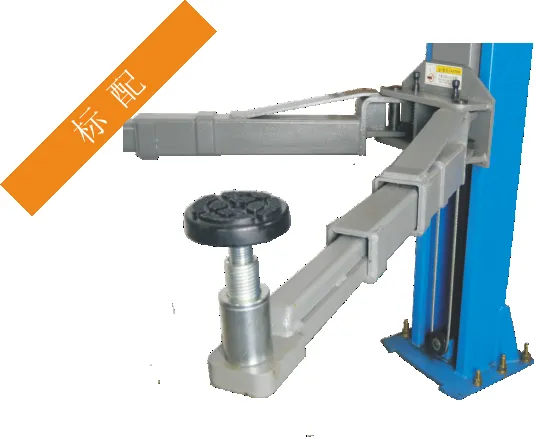

6.3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
7.Pass CE 6T static test and 4.6T dynamic test.

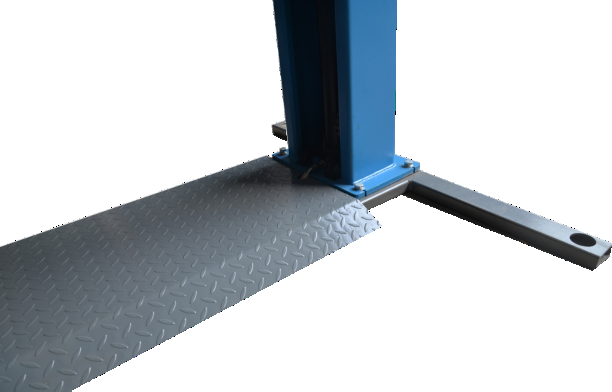

8.Reinforced floor.
About SHUNLI Company
SHUNLI Company is professional car lift factory. Standard model Two post car lift, 4t, 5T, Four post car lift, 4T, 5T, Car scissor lift including the lower rise scissor lift 3.5T, 4T, 4.5T, 5T, 5.5T and so on is our standard model. And we can do the nonstandard model also. We have more than 10 model pass CE test and have CE certification.
The factory more than 20000M2, We have a world-class production equipment, including several Laser cutting machine, Robot welding machine, more than 20 sets punching machine and so on, the worker more than 130,each month we can production more than 1000 sets. Our users including the Mercedes-Benz 4S Shop, BMW 4S, VOLKSWAGEN 4S Shop and so on, CONTITRAC TR TIRES company, and the beauty car shop.
1.Driven by double hydraulic cylinders, steel wire chain-type elevating system.
2. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentricity.
3.Automatic arm safety lock and hook type post lock.
4. Single side control both side unlocked safety, arm locks with tooth type ratchet,multi-safety device,more reliable. 5.Shot blasting and high temperature baking powder coated surface finish.
6.3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
7.Pass CE 6T static test and 4.6T dynamic test.
8.Reinforced floor.
| MODEL | TON | DESCRIPTION OF GOODS | PRODUCT DETAILS | |
| SHL-2-240D | 4T | Min. height | 130mm | Arm: 2*2 stage arm,2*3stage arm 3-stage ultra-low arm |
| Lifting height | 1880mm | Aluminumn motor+oil tank | ||
| Rise Time | 50s | Japanese oil seals | ||
| Descending Time | 30s | Steel core wire rope | ||
| Motor Power | 2.2kw | Reinforced floor and 8 blasting screws | ||
| Total height | 2865mm | 3stage lifting pad + higher extension | ||
| Inner width | 2860mm | The EU test standard | ||
| Total width | 3860mm | High precision laser cutting | ||
About SHUNLI Company
SHUNLI Company is professional car lift factory. Standard model Two post car lift, 4t, 5T, Four post car lift, 4T, 5T, Car scissor lift including the lower rise scissor lift 3.5T, 4T, 4.5T, 5T, 5.5T and so on is our standard model. And we can do the nonstandard model also. We have more than 10 model pass CE test and have CE certification.
The factory more than 20000M2, We have a world-class production equipment, including several Laser cutting machine, Robot welding machine, more than 20 sets punching machine and so on, the worker more than 130,each month we can production more than 1000 sets. Our users including the Mercedes-Benz 4S Shop, BMW 4S, VOLKSWAGEN 4S Shop and so on, CONTITRAC TR TIRES company, and the beauty car shop.
