4.0 Tonne Capacity with Extension Columns Auto Lift (209CH)
209CH 4.0 Tonne Capacity With Extension Columns Auto LiftPEAK's Series of 2 Post Lift for Hydraulic Direct-DrivedModelLifting Capacity209C4.0T (9,000 lbs)209CH4.0T (9,000 lbs) * "C" is planer-type style. * 209CH is higher than 209C. Feature 9,000 Lbs Capacity Dual hydraulic cylinders......
Send Inquiry
Product Description

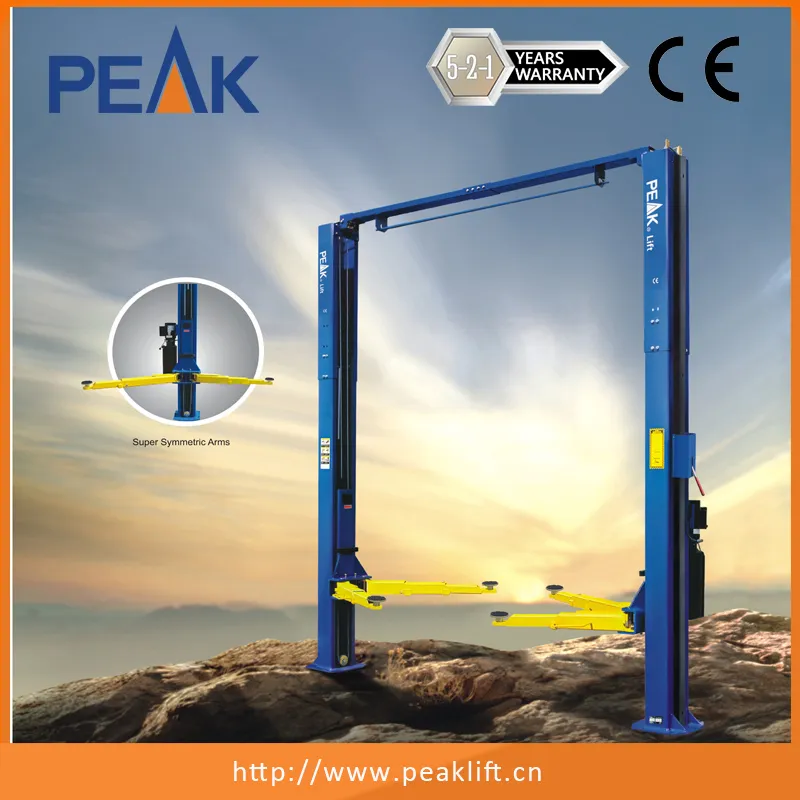

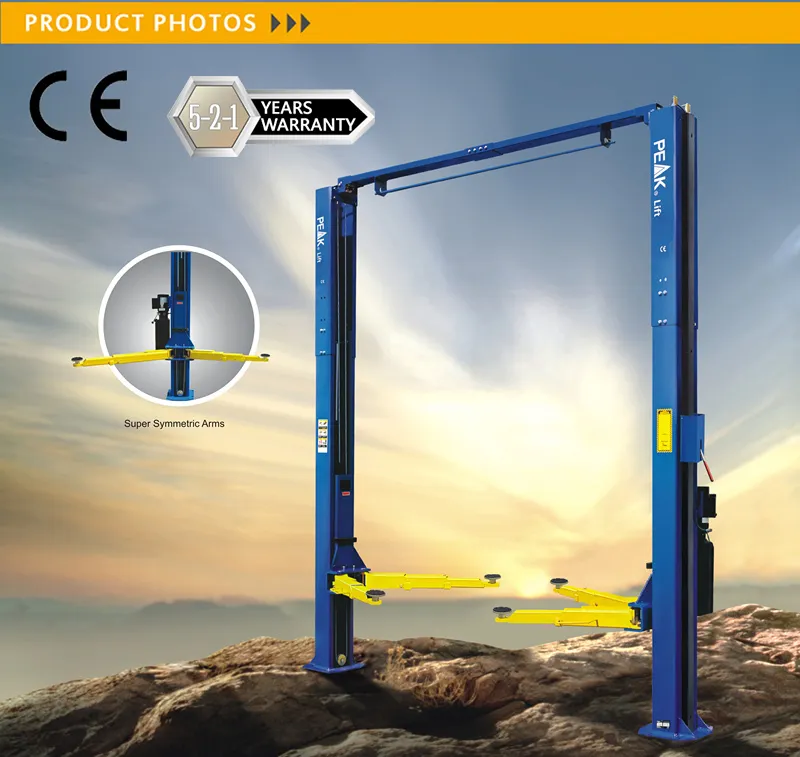

209CH 4.0 Tonne Capacity With Extension Columns Auto Lift
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
* "C" is planer-type style.
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.

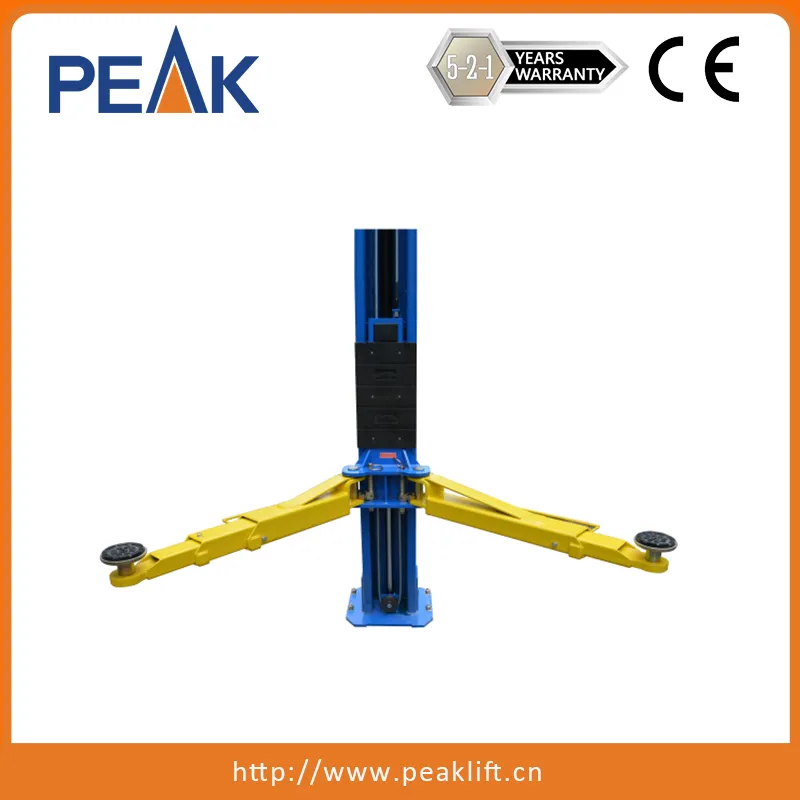

• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209CH 4.0 Tonne Capacity With Extension Columns Auto Lift
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
PEAK's Series of 2 Post Lift for Hydraulic Direct-Drived
| Model | Lifting Capacity |
| 209C | 4.0T (9,000 lbs) |
| 209CH | 4.0T (9,000 lbs) |
* 209CH is higher than 209C.
Feature
• 9,000 Lbs Capacity
• Dual hydraulic cylinders, designed and made on ANSI standard, high quality NOK seals.
• 3/8" aircraft quality cable is used for synchronization.
• Supersymmetric arms design with three-stages front arms and two-stages rear arms.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release, and dual safety design.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shutoff device.
• Stackable rubber pad with 1.5", 2.5" and 5" extension adaptors.
•Automatic arms restraints.
• Hydraulic power unit.
•Long warranty period:
5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.);
2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.);
1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
209CH 4.0 Tonne Capacity With Extension Columns Auto Lift

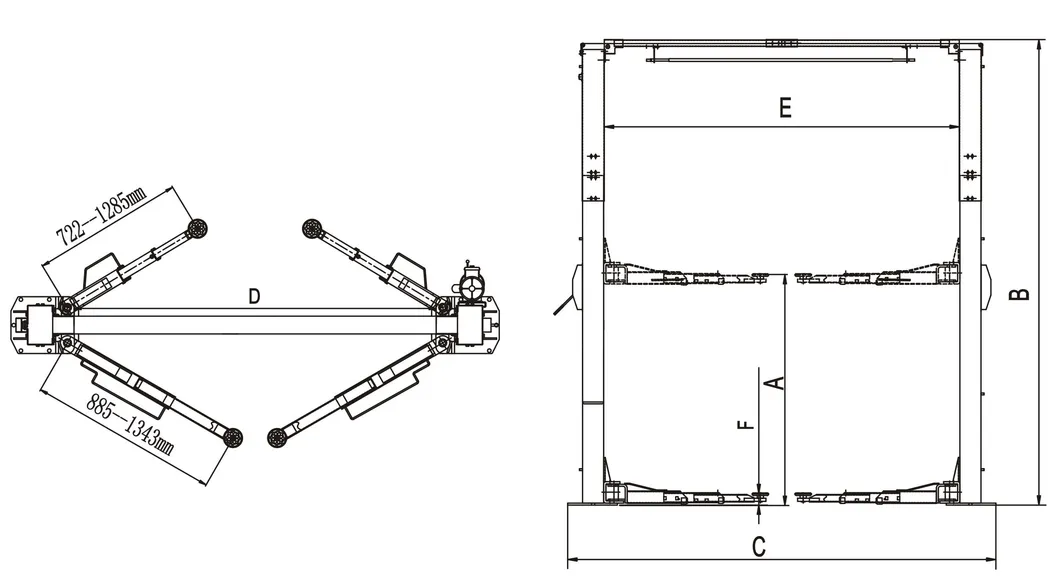

| Model | 209CH | ||
| Style | Planer-type Direct-drived | ||
| Lifting Capacity | 4.0T (9,000lbs) | ||
| Lifting Time | 52 Seconds | ||
| A | Lifting Height | 1815-2044mm(71 1/2"- 80 1/2") | |
| B | Overall Height | 4231mm/4431mm(166 1/2" / 174 1/2") | |
| C | Overall Width | 3428mm(135") | |
| D | Drive-Thru Clearance | 2528mm(99 1/2") | |
| E | Width Between Columns | 2850mm(112 1/4") | |
| F | Minimum Pad Height | 90mm(3 1/2") | |
| Gross Weight | 701kg(1,545lbs) | ||
| Motor | 2.0/3.0HP | ||
| Packing Dimension | 2815 X 450 X 755 mm | ||
| QTY of Container | 23 Units/20'GP | ||
| 46 Units/40'GP | |||
EVERY PEAK LIFT IS FOR THE CUSTOMERS WHO NEED GOOD QUALITY PRODUCTS AT COMPETITIVE PRICE!
