Waterproof 40mm Camera Head for 2.5inch to 25inch Pipe

Wholesale endoscope inspection camera with built-in 512hz transmitter V8-3388T

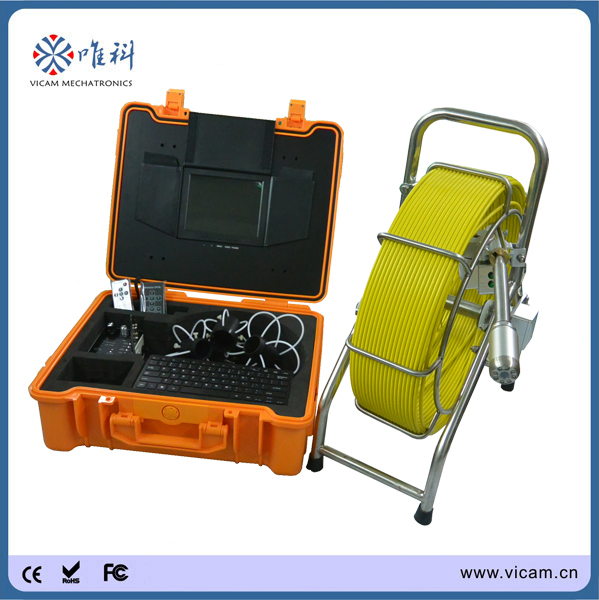

Endoscope inspection system Head
* Camera size Φ 40mm x 100mm for pipe Φ 55-600mm;
* 600 TV Lines CCD self-levelling camera with 512 Hz transmitter
* Aluminum Camera case;
* Sapphire glass lens;
* Sensor size 1/3 inch;
* Viewing angle 90° ;
* 18 pcs white LEDs;
* Total Pixels PAL 720X576 NTSC 720X 480

Endoscope inspection system Monitor
*8 inch LED color monitor
* Power supply DC 12V
* OSD language: English
* mirror image
* Sunshade included

Endoscope inspection system DVR Control Box
* 12V DVR work current 200mA;
* Storage medium SD card (max 64G);
* LED brightness adjustment;
* Audio / video / photo function;
* On/off microphone control button;

Cable Reel with meter counter
* 120m Φ 7mm fiberglass push rod cable (60m optional) with meter counter;
* Reel size L51 x W25 x H64 cm;

USB Keyboard
* Removable waterproof keyboard;
* 2m lead wire;
* USB plug for DVR control box;

Carrying case
* ABS engineering carrying case size: 520 x 435 x 200mm
* Unit operating temperature: -10 to 50 degrees Celsius, RH 95% maximum
* Storage temperature: - 20 to 70 degrees Celsius, RH 95% maximum

Payment Terms
* Payment terms: T/T, Western Union 30% deposit, balance before shipment;
* Trade term: FOB, CIF & EXW are available;

Packing & Shipping
* Durable ABS carrying case 520 x 440 x 200mm
* 2 pieces cases in one carton
* DHL express
* All products will be tested & inspected before delivery
* Tracking No. Will be sent after delivery

Warranty
* One year warranty, whole life service;
* Any problem, freely return within one week;

Why Vicam
* We as a leading manufacturer specialize in pipe inspection systems & cameras.
* Rich experience of 8 years to design, produce and export.
* France CYBERIA SAS, and Shenzhen Institutes of Advanced Technology support.
* Professional engineers guarantee the reliable products.
* Strong production line provide best price, good quality and fast delivery.
* Inquiry will be replied within 24 hours
