Original Vgate Powerscan PT150 as PS100 Electrical System Circuit Tester Same Function as Autel Powerscan PS100 DHL Free

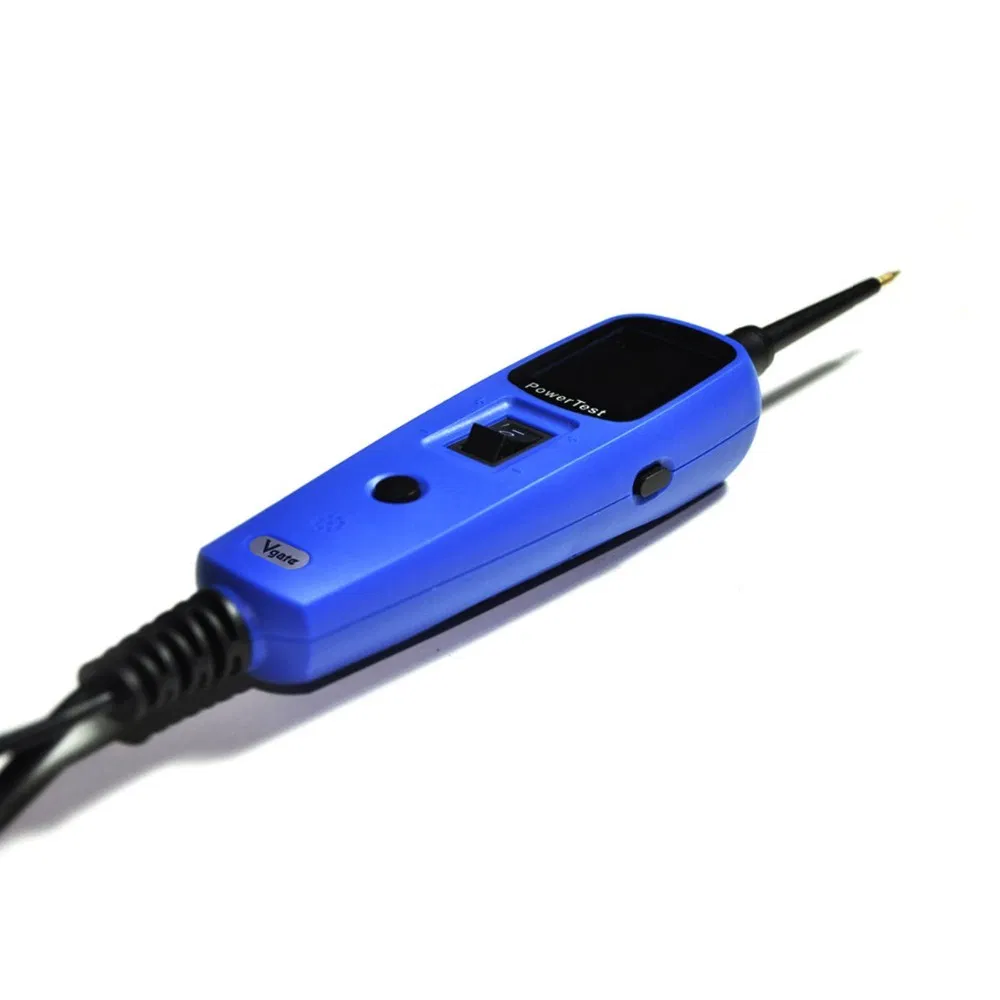

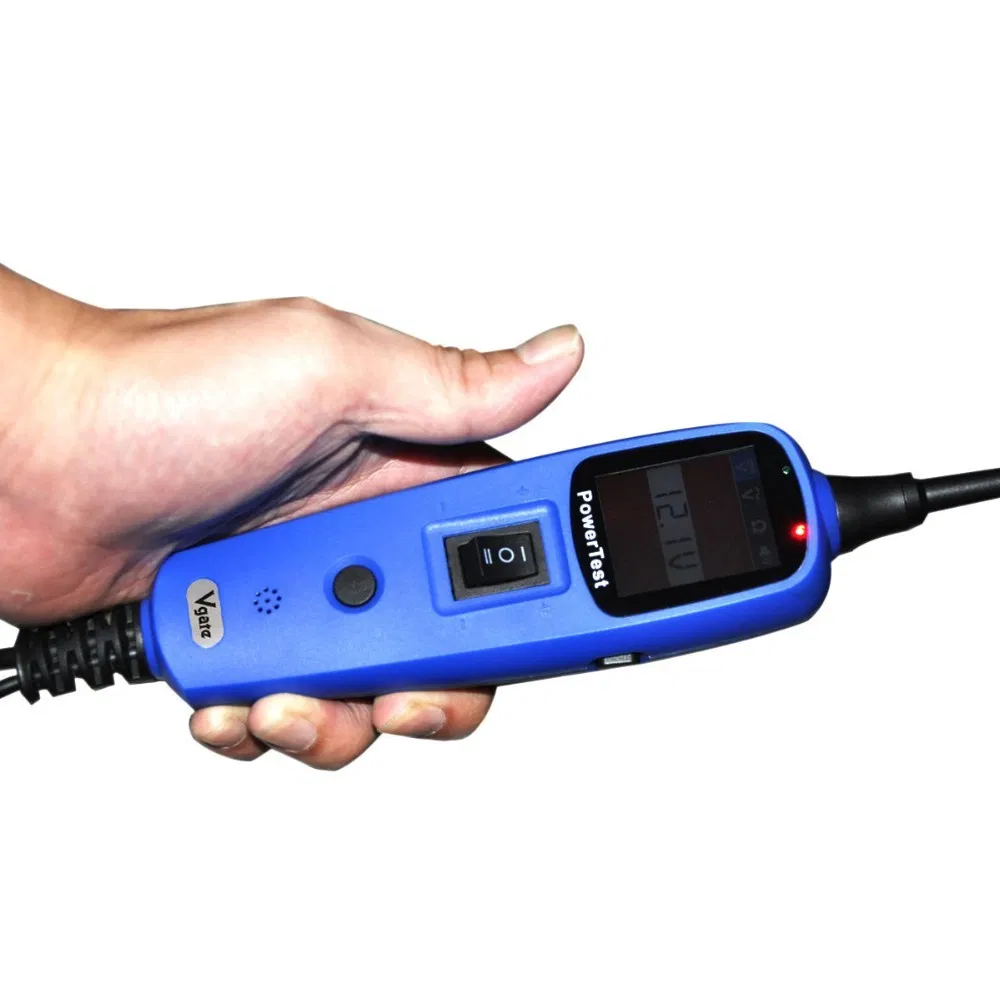

Vgate PowerTest PT150 Electrical System Diagnostic Tool

The PowerTest Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerTest is truly the ultimate in power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.

Top 3 Reasons to Get PowerTest PT150

1.Extremely easy to use and highly reliable
2. Built-in Flashlight enables you to work in the dark
3.Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip

PowerTest PT150 Features:

Performs every type of service including power injection, measurement, ground testing, polarity checks, continuity testing and components activation
With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans, relays, etc.
Simultaneously uses the hot lead and the ground lead to activate components right in your hand
Instantly identifies positive, negative and open circuits
Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
Instantly checks continuity of switches, relays and diodes
Circuit breaker protected
Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
20ft (extendable) cable provides excellent accessibility to test along the vehicle

Vgate PowerTest PT150 Specifications:

Display: TFT color display (160 x 128 dpi)

Operating Temperature: 0 to 60°C (32 to 140°F)

External Power: 12.0 or 24.0 V power provided via vehicle battery

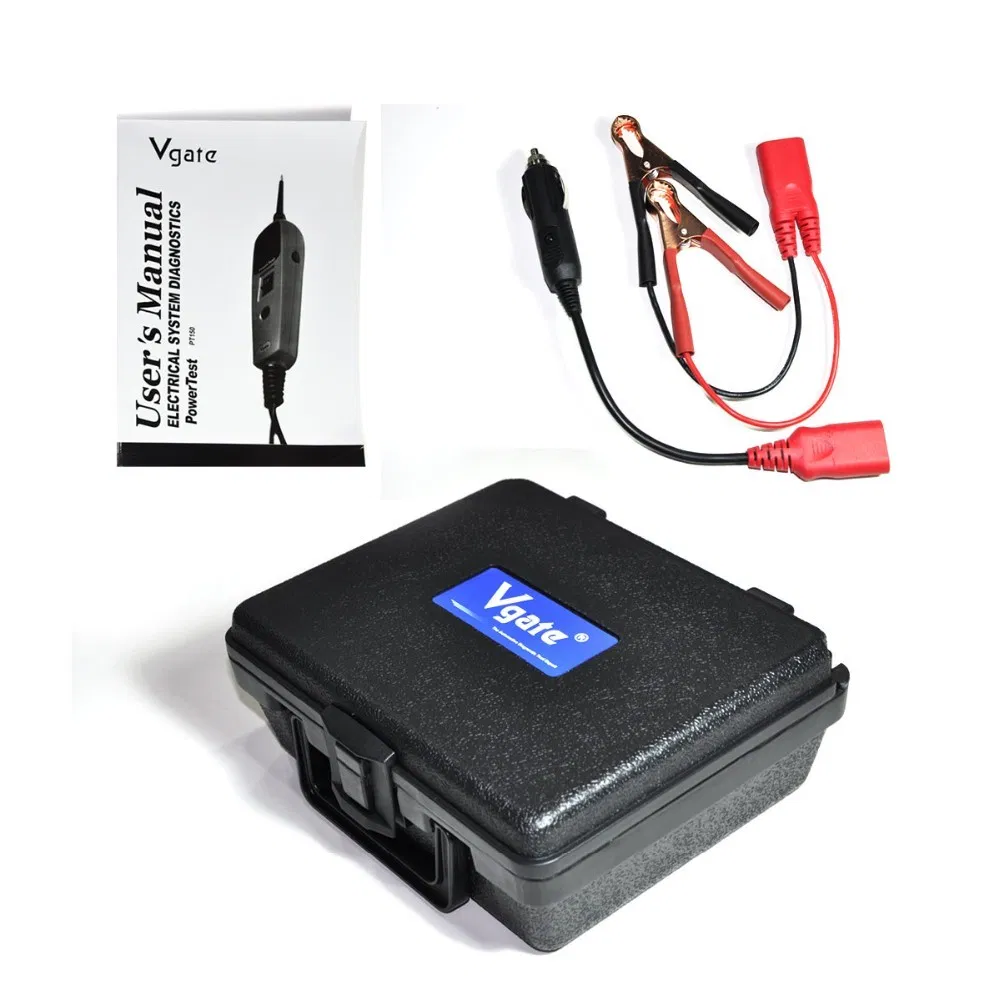

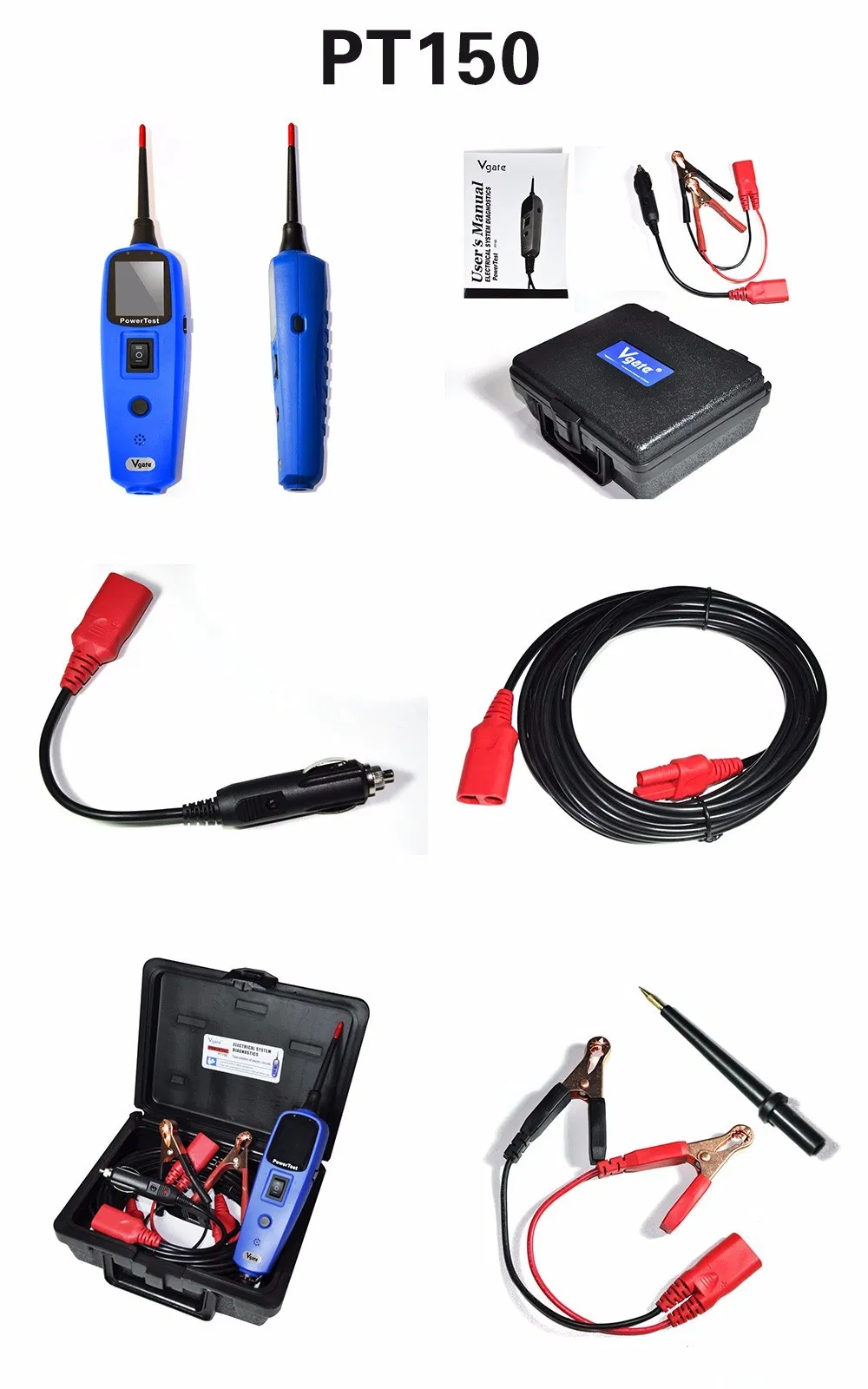

Vgate PowerTest PT150 Package List:

1 × PowerTest PT150
1 × Rugged Blow Molded Case
1 × 20ft. Extension Cable

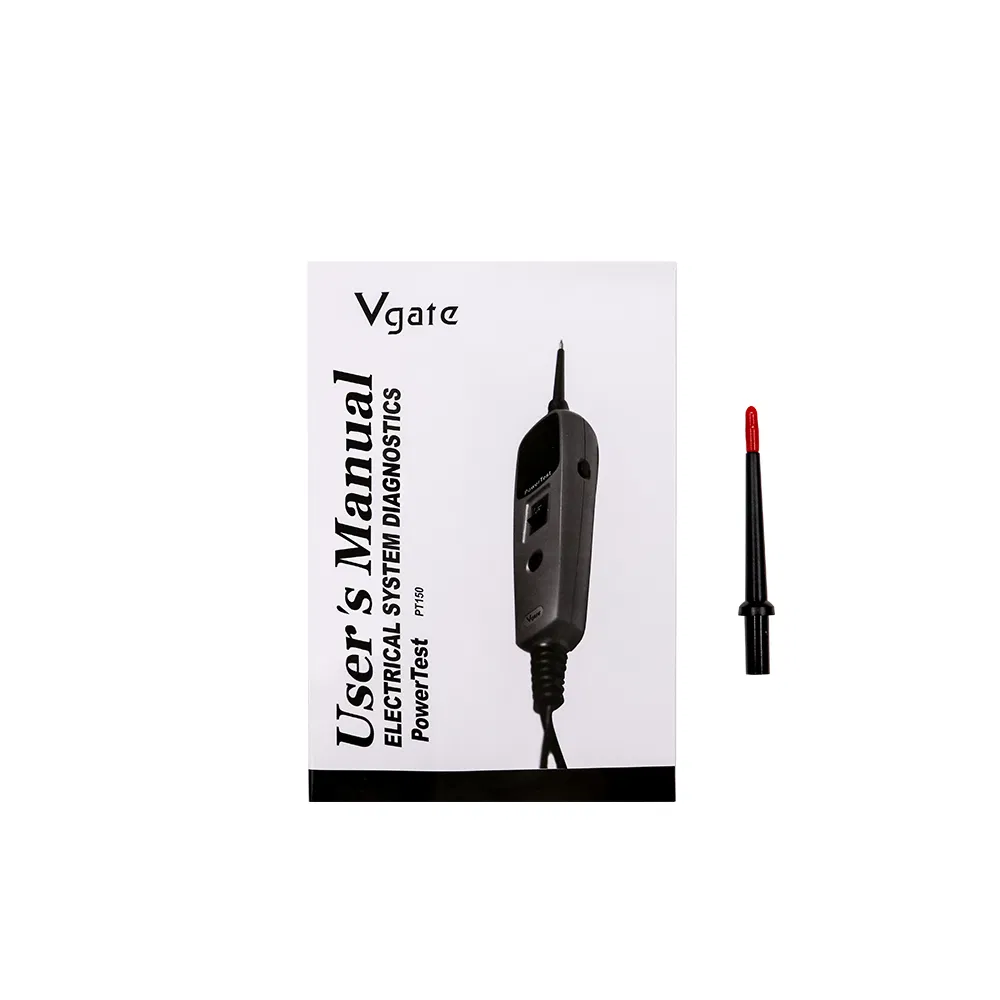

1 × Probe Tip

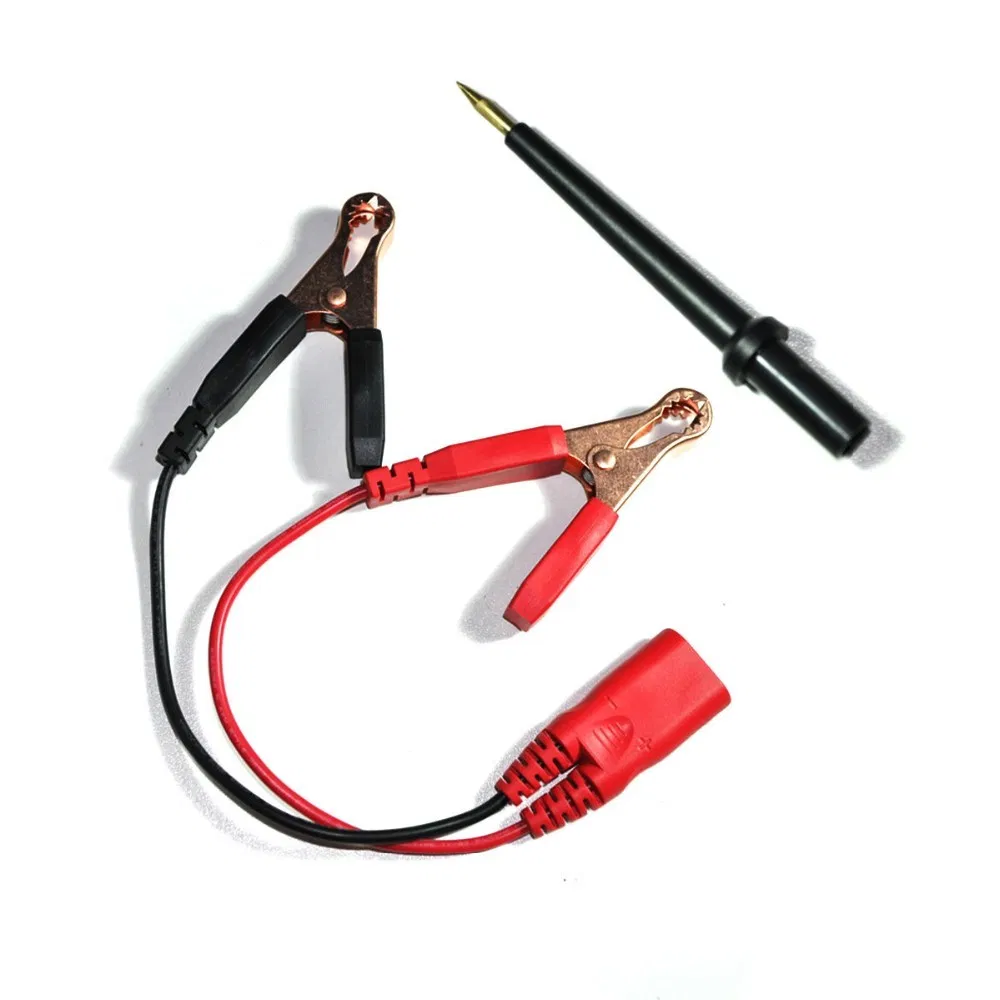

1 × Battery Hookup Clips
1 × Cigarette Lighter Adapter
1 × User Manual
