China Nti 700 Nts700 Common Rail Injector Test Bench 4 Injectors Test at The Same Time Qr Coding Dci 700

Product Description

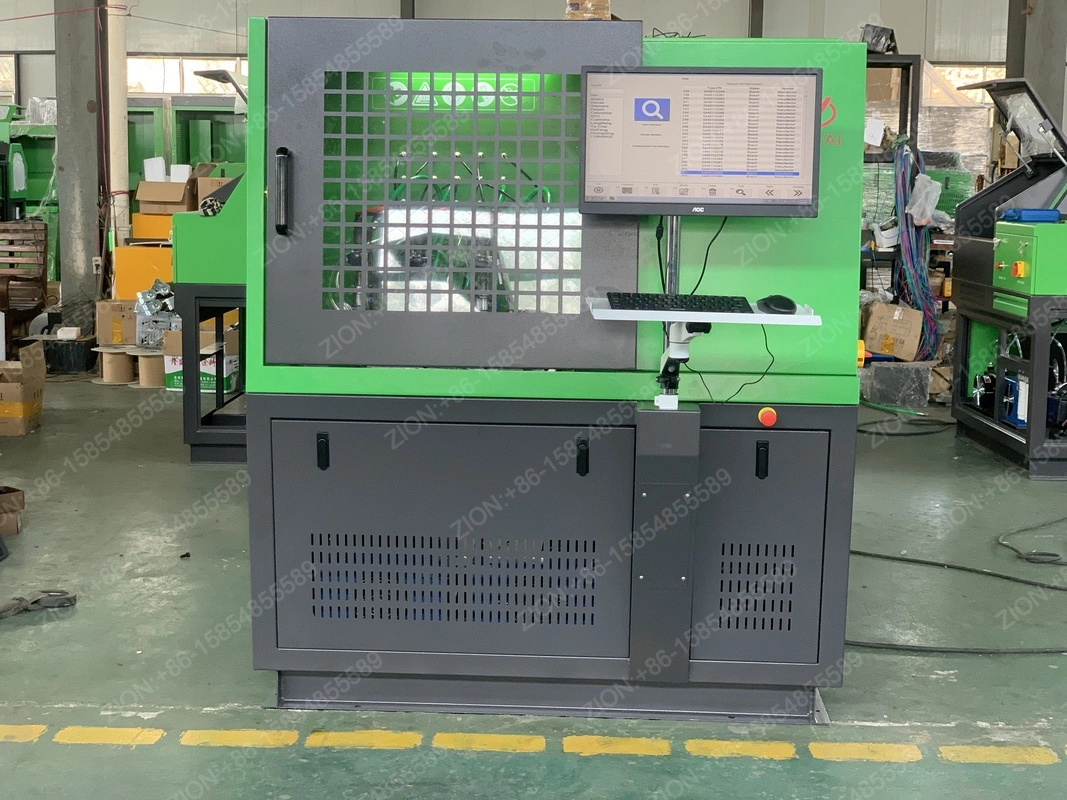

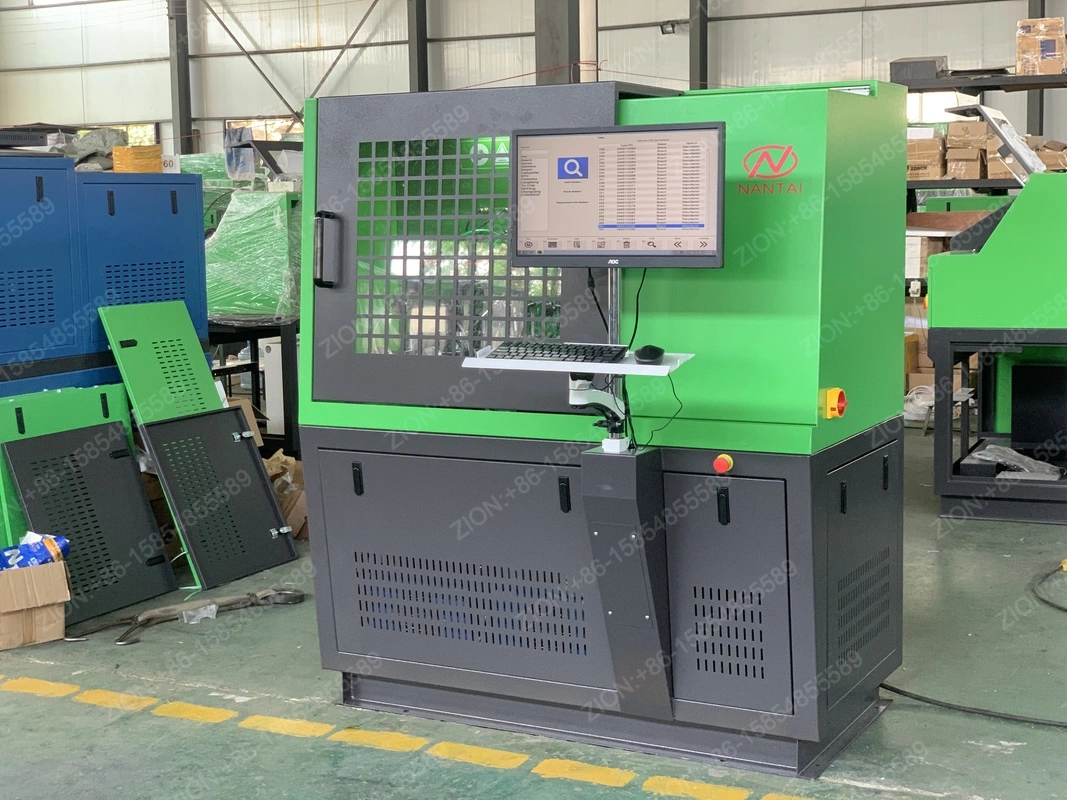

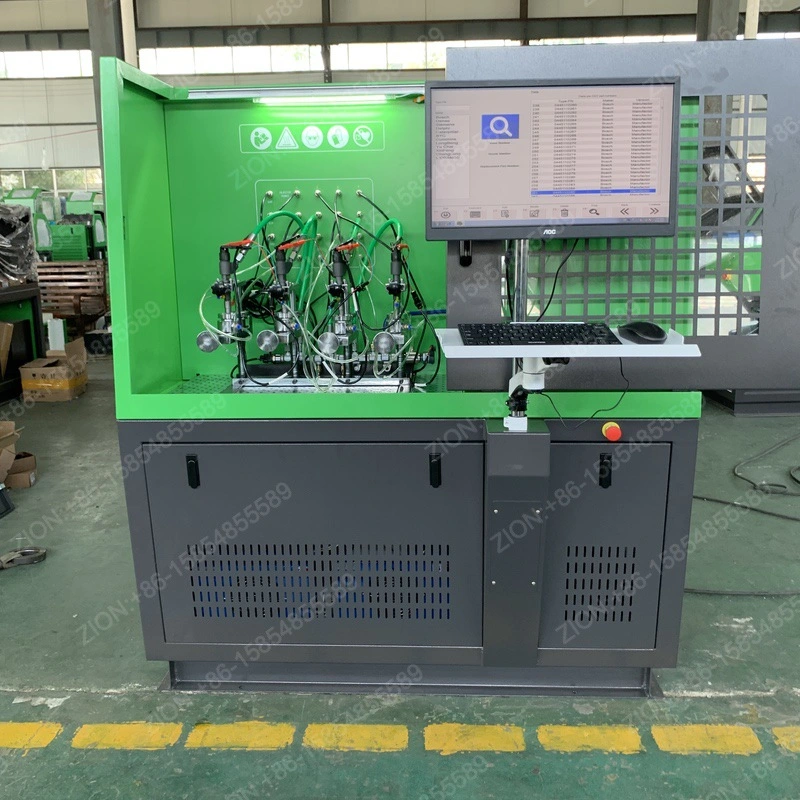

NTS700 Common Rail Injector Test Bench

FUNCTION

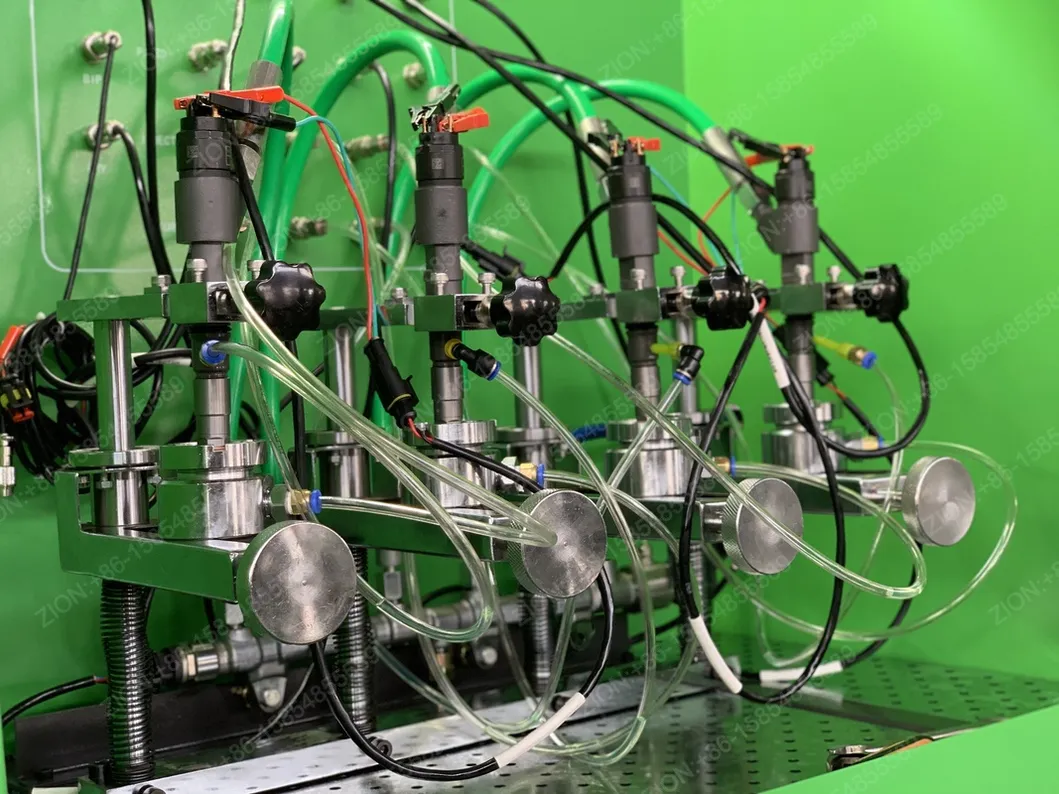

1. Test common rail injector
* 4pcs at the same time.
2, Test piezo injector.
3, Test common rail injector

(BOSCH,DENSO,SIEMENS,

DELPHI,CUMMINS,CAT, etc,

include CUMMINS ISG/XPI injector, 4pins injector).
4, Test the injector's

inductance and resistance .
5, QR code(injector coding for Bosch,Denso,Siemens,delphi

,cummins).

NTS300 Common Rail Injector Test Bench Introduction

NTI700 is from Bo-sch -diesel test bench with the future in mind.For high-precision and fast testing of nearly all common rail injectors(CRI/CRIN).Precision that pays off - ability to test the latest and future technologies(VCC/NCC).

Speed that inspires-reduced mounting and testing time(~15 min).

High-pressure hose assemblies are no longer required thanks to the patented rotatin rail.This reduces costs and is easy tomaintain.

The injector backflow hoses and electrical connection can be attached intuitively and quickly.Thanks to different connector shapes and codings,it is virtually impossible to mix up the connections.

The ergonomic design allows comfortable working on the test bench.

Experts know:no quantity measurement without prior leak test.If the test was successful,position the injection chambers and fix them into place.

Now the actual testing begins with up to 70% testing time savings.

Thanks to the new quantity measurement system this is the fastest diesel injector test bench from Nantai.

The latest technologies also require a high level of testing precision.

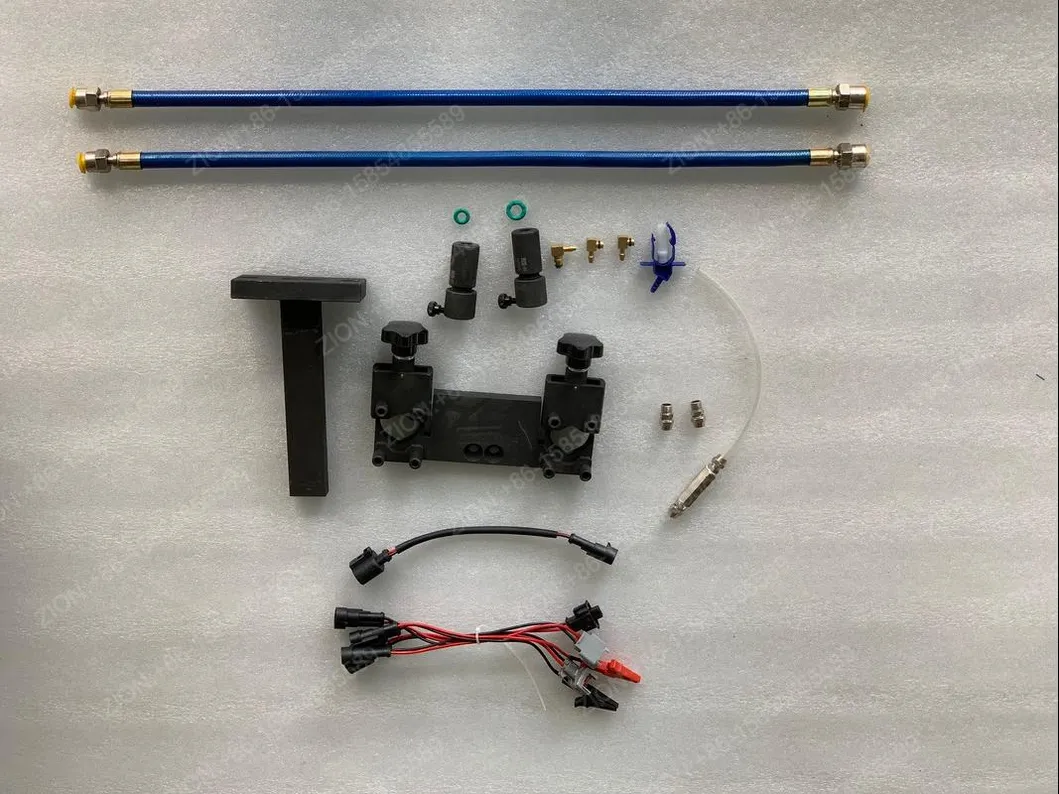

Suitable accessory kits enable upgrading,also for CRIN testing.

The flexible patented rotating rail facilitates and accelerates the conversion.

After a quick assembly,the CRIN test also includes a leak check and subsequent flow measuring.

Regular online updates ensure working with current data.

Future-proof your workshop with the NTI700 from Nantai.

NTS700 Common Rail Injector Test Bench Parameters

1.	Pulse width	0.1~20ms
2.	Continuous injection times	0~1000
3.	Fuel temperature	40±2°C
4.	Rail high pressure	0~2000 bar
5.	Test oil filtered precision	5μ
6.	Power Voltage	380V 3 Phase/220V 3 Phase
7.	Rotation speed	0~3000RPM
8.	Oil tank capacity	16L
9.	Overall dimension(MM)	865x775x1430 mm
10.	Weight	150KG
