HD Truck Diagnostic Scanner for Foton Auman, FAW Jiefang, Shaanxi Shacman, JAC, Sinotruk, Dongfeng, Mac, Renault, Kama, Benz, Scannia, Iveco, Volvo

ECU ,HD truck scanner,truck diag scanner,,automotive diagnostic instrument,truck scanner,diagnostic tool,super scanner,car fault detector,on-board computer,vehicle holding computer

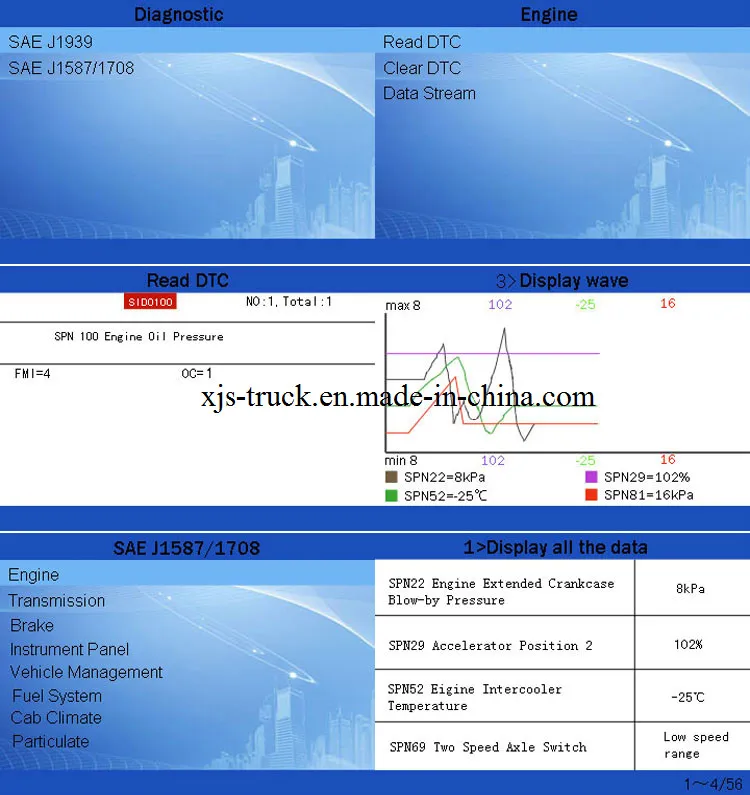

HD-Scanning is the latest development of the first heavy reading card, the equipment for the hand-held device, which solves the inconvenience in using PC machine. it is a collection of the basic function of J1939 and J1708 in diagnosis of heavy truck two standard protocols of the vehicle, a 2.8 inch color display, color gorgeous, beautiful interface, equipped with 6PIN, 9PIN accessory diagnosis connector, provides heavy diagnosis, most efficient, best quality service for you the most professional. Since then, the heavy truck has small diagnostic tools themselves!

The main function of product:
1,fault code reading
2,Erase fault code;
3,reads the data flow information;
4, support multiple vehicle electronic control system (engine, gearbox, dashboard, particle, transmission system, braking system, suspension, ABS, vehicle stability system, electronic power steering system, fuel system)
5,support 6PIN, 9PIN,16PINdiagnostic interface
6,support J1939, J1708,J1587 vehicle communication protocol
7,support multiple languages such as: English, French, Chinese, German, Spanish, Italy, Japanese etc.
8,support online software upgrade (USB2.0), can enhance the function of the product according to the customer demand.
9,diagnosis; products with storage function, users can real-time diagnostic data stored in EEPROM, data can also be copied to the computer for analysis by USB interface.



Specification:
Screen: 2.8 inch, 262K true color LCD display, 320*240
Input voltage range: 8~36V
Working current: typical ; 100mA
Typical power: ; 1.2W
The line connections: 6PIN, 9PIN diagnostic interface
Working temperature: 0 ºC ~ 50 ºC
Size: L*W*H=121*82*26mm
Lifting weight: ; 500g


Support vehicle list (Heavy truck)
Foton Auman,FAW Jiefang,Shaanxi Shacman,JAC,Sinotruk,Dongfeng,Mac,Cummins,,Renault,KAMA,Benz,Scannia, Iveco,Volvo,etc(not include all)
(pls offer us your car model to check )
