Eup /Eui Cambox Tester
Cambox EUP/EUI Repair Test Kits (EUS-2000)Cambox, repair test kits for electronic unit pumps (eups) and electronic unit injectors (euis)The repair tester is designed to perform repair tests for different type of electronic unit injectors (eui) and electronic unit pumps (eup). The tester consists of ......
Send Inquiry
Product Description
Cambox EUP/EUI Repair Test Kits (EUS-2000)
Cambox, repair test kits for electronic unit pumps (eups) and electronic unit injectors (euis)

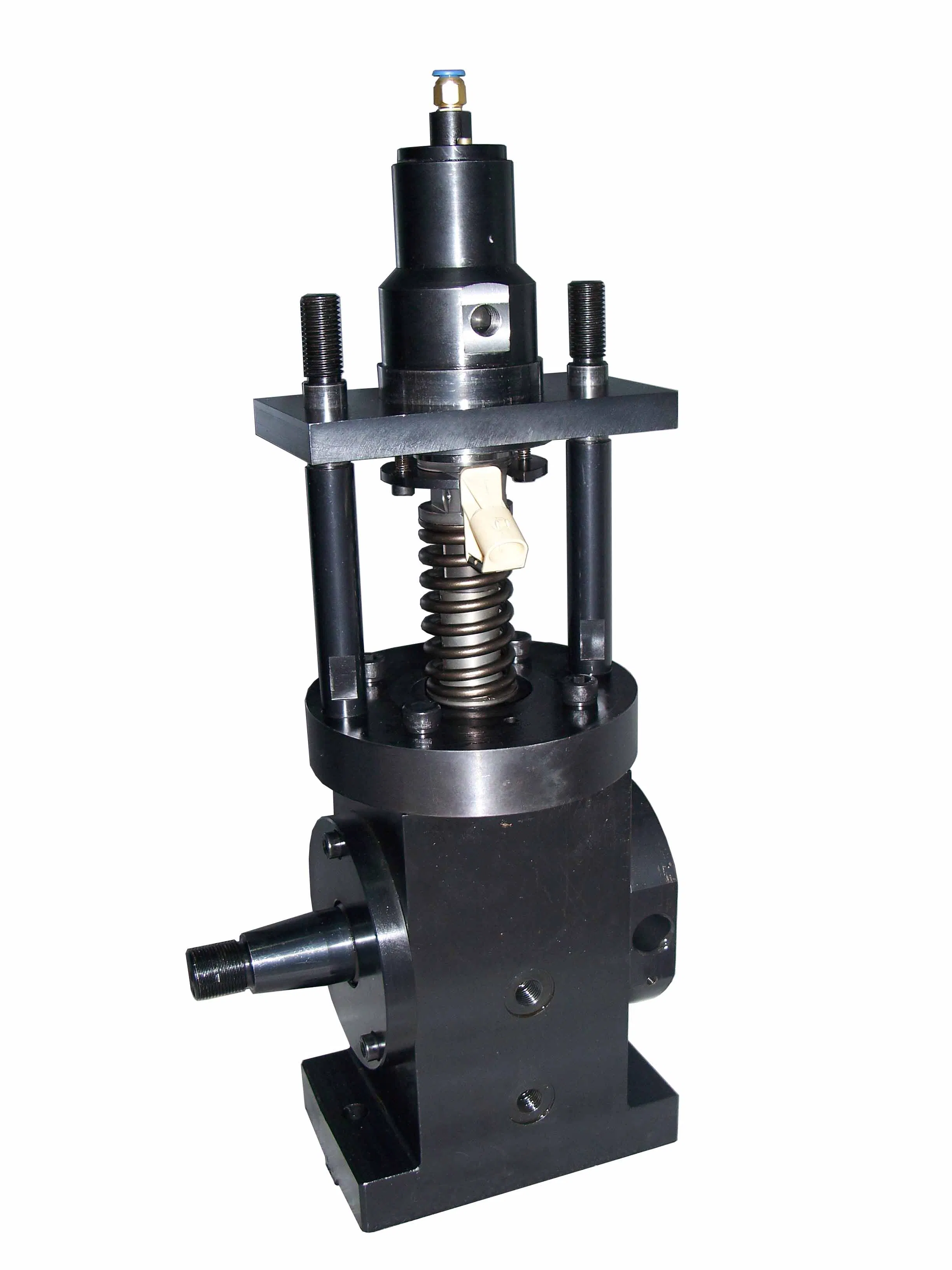

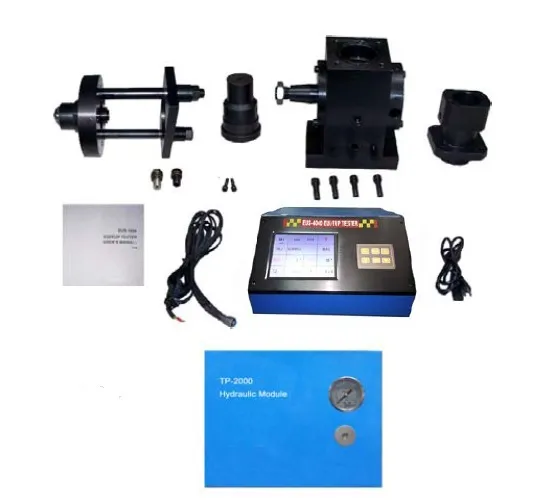

The repair tester is designed to perform repair tests for different type of electronic unit injectors (eui) and electronic unit pumps (eup). The tester consists of a mechanical cam box with specified eui/eup adapter kits and an electronic controller. The cam box will be driven by a standard high pressure fuel injection pump test stand.
The tester is capable to test eui/eup products for following brands of manufacturers:
Bosch, cummins, cat, Benz, scania, Volvo, deutz, Iveco, land rover, vw, daf, Renault, mack, mtu, delphi, etc.
Cambox, repair test kits for electronic unit pumps (eups) and electronic unit injectors (euis)
The repair tester is designed to perform repair tests for different type of electronic unit injectors (eui) and electronic unit pumps (eup). The tester consists of a mechanical cam box with specified eui/eup adapter kits and an electronic controller. The cam box will be driven by a standard high pressure fuel injection pump test stand.
The tester is capable to test eui/eup products for following brands of manufacturers:
Bosch, cummins, cat, Benz, scania, Volvo, deutz, Iveco, land rover, vw, daf, Renault, mack, mtu, delphi, etc.
| Item no. | Part number | Products name |

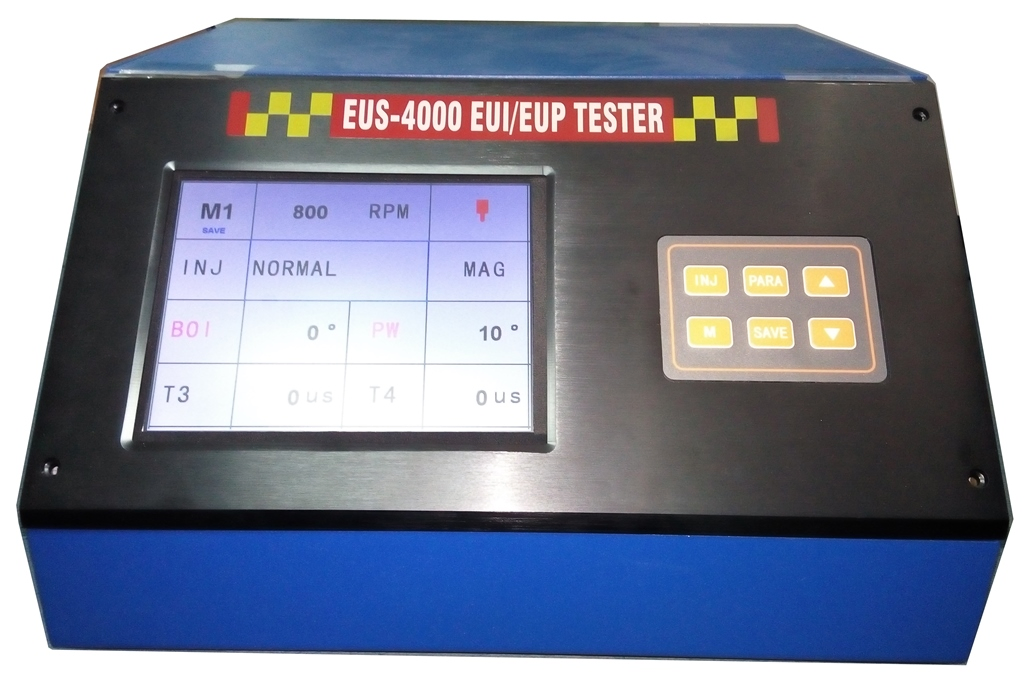

| 1 | 614400 | EU-4000 Base Controller |
| 2 | 614004 | Piezo Module for VW PIEZO EUI |
| 3 | 614005 | Dual-Solenoid Module for Delphi E3 dual-solenoid |
| 4 | RT Module (BIP Module) | New! Response time testing kit, include: a main control board and a testing sensor |
| 5 | 940000 | Cummins HPI-TP Kits, ISX |
| 6 | 900695 | Cambox assembly |
| 7 | 900696 | EUI Mounting Base and Pillar Assembly |
| 8 | 900628 | Camshaft Assembly |
| 900631 | Camshaft Assembly | |
| 900633 | Camshaft Assembly | |
| 900635 | Camshaft Assembly | |
| 9 | 900750 | EUI adapting kits for Detroit Diesel Series 50/60 N2 |
| 900757 | EUI adapting kits for Detroit Diesel Series 60 N3 | |
| 900765 | EUI adapting kits for Cummins L10,M11 Celect, LSM | |
| 900785 | EUI adapting kits for Cummins N14 Celect | |
| 901700 | EUI adapting kits for Caterpillar 3196/3176A/3176B | |
| 901710 | EUI adapting kits for Caterpillar 3176C/C10/ C12 | |
| 901800 | EUI adapting kits for DDC92 | |
| 901720 | EUI adapting kits for Caterpillar 3406E, C15 | |
| 901730 | EUI adapting kits for Delphi A3, E1 Volvo 420-460 | |
| 901740 | EUI adapting kits for Iveco Cursor 8 | |
| 901750 | EUI adapting kits for Iveco Cursor 10/13, Iveco Stralis, BOSCH EUI for Volvo D12A, D12C, FH12, 420-460 | |
| 901760 | EUI adapting kits for Scania DC/DSC | |
| 901770 | EUI adapting kits for Audi/VW Seat, Skoda | |
| 901775 | EUI adapting kits for Siemens Piezo for Audi | |
| 901780 | EUI adapting kits for Land Rover | |
| 901790 | EUI adapting kits for John Deer | |
| 902350 | EUI adapting kits for CAT3500 | |
| 10 | 902360 | MUI adapting kits for CAT3500 |
| 901810 | MUI adapting kits for CAT3116 | |
| 11 | 900920 | EUP adapting kits for DDC/MTU S2000, Mercedes Benz Actros,MBE4000 |
| 900930 | EUP adapting kits for Mecedes Benz OM900/MBE900,Axor,Atego,Econic | |
| 900940 | EUP adapting kits for Mack,Renault DAF,Deutz 2015 | |
| 900950 | EUP adapting kits for Delphi EUP | |
| 900900 | EUP adapting kits for Deutz 1013 |
