Electronic Control Common Rail Injector Test Bench
Product IntroductionJZ-2000 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.Functions ......
Send Inquiry
Product Description
Product Introduction

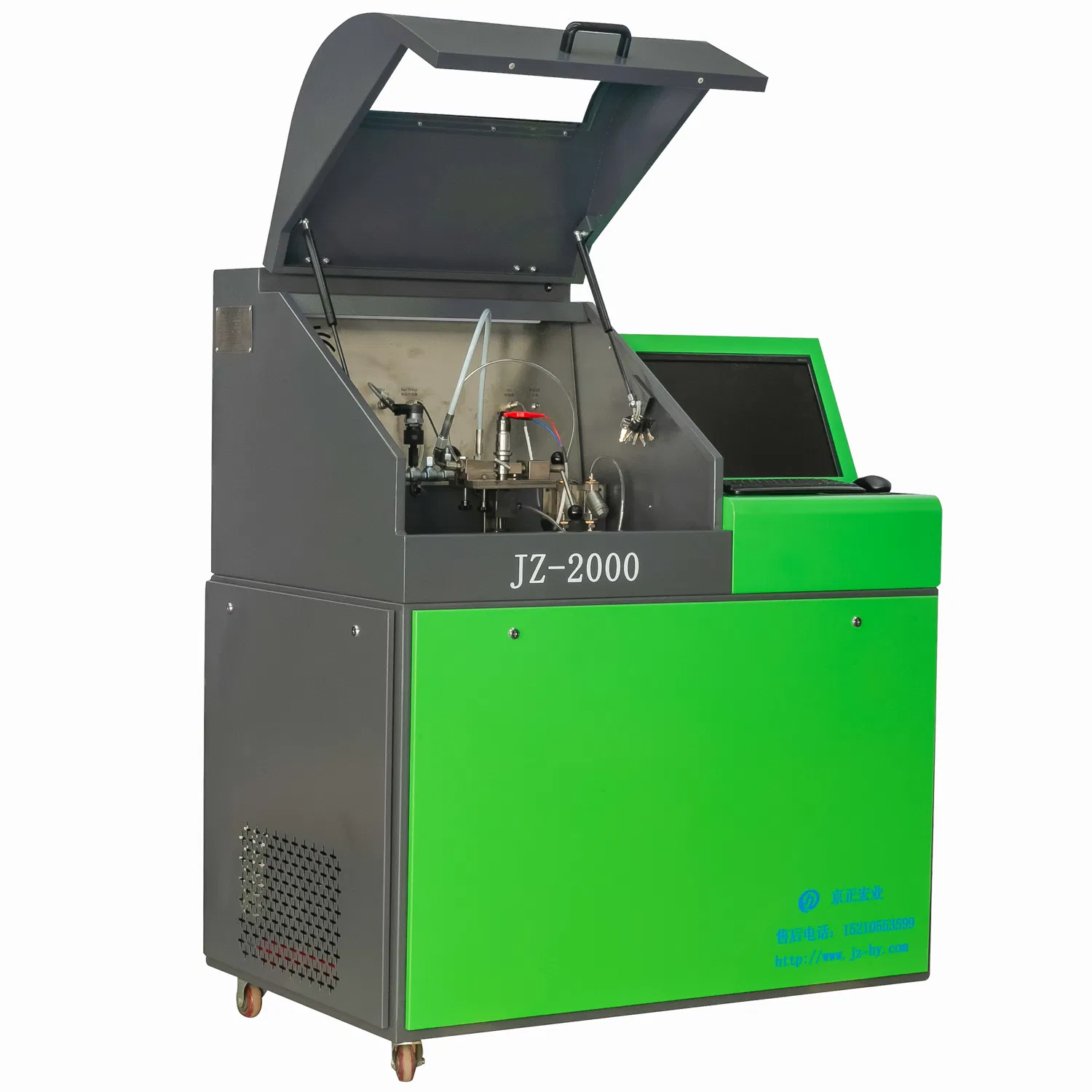

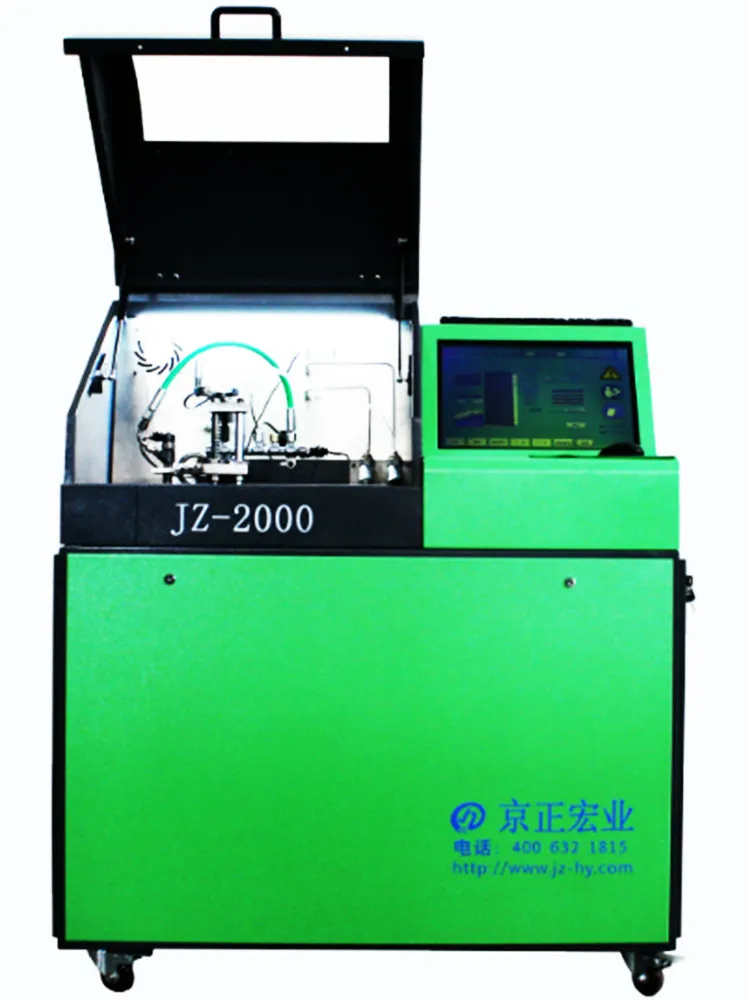

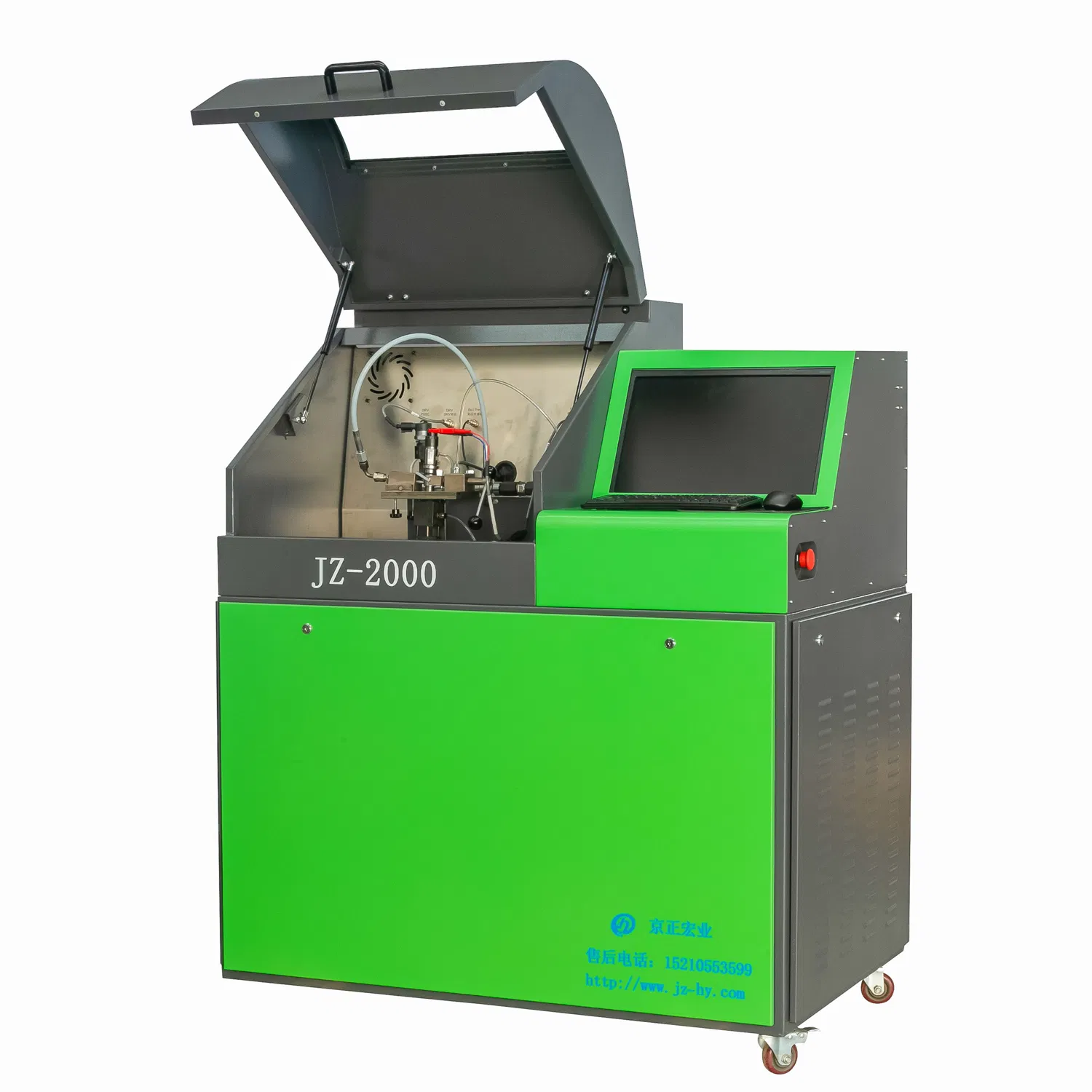

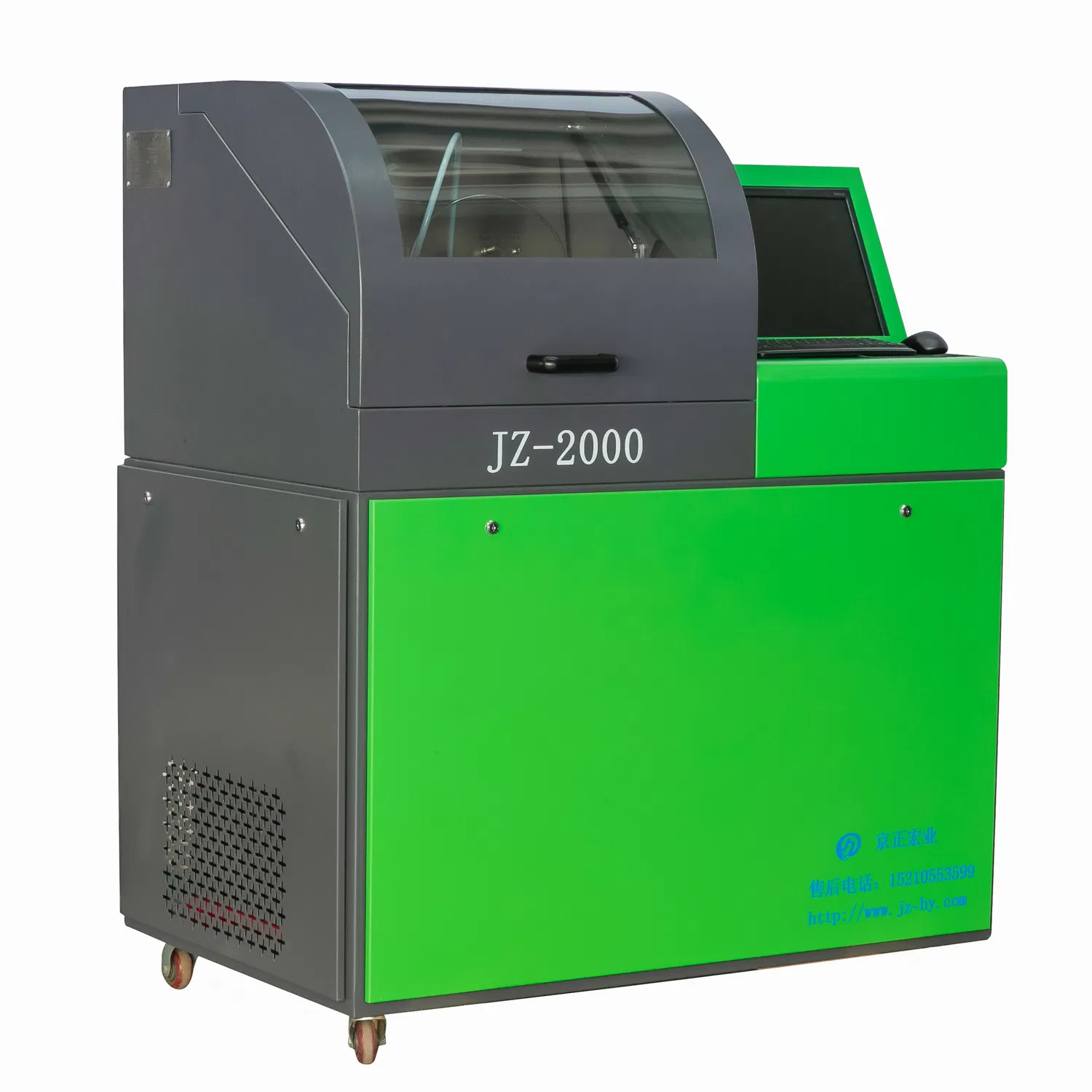

JZ-2000 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.

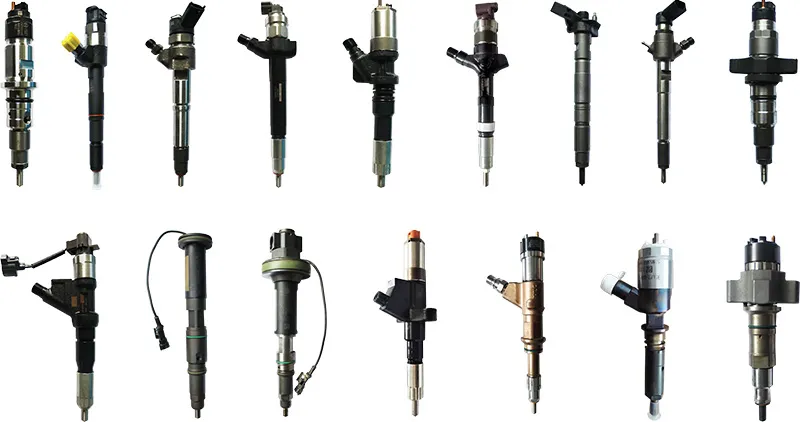

It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description and Testing Scope
JZ-2000 common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4 injectors.
It can test thousands of injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
Functions Description and Testing Scope
| 1. Test piezo injectors |
| 2. Test common rail injectors |
| 3. Test fuel feeding pressure |
| 4. Displaying the fuel delivery graph in real-time |
| 5. Automatically heating/cooling control for test oil |
| 6. Test items: preheating emptying; tightness; full load; fuel return; discharge volume; pre-injection volume; idle oil volume |

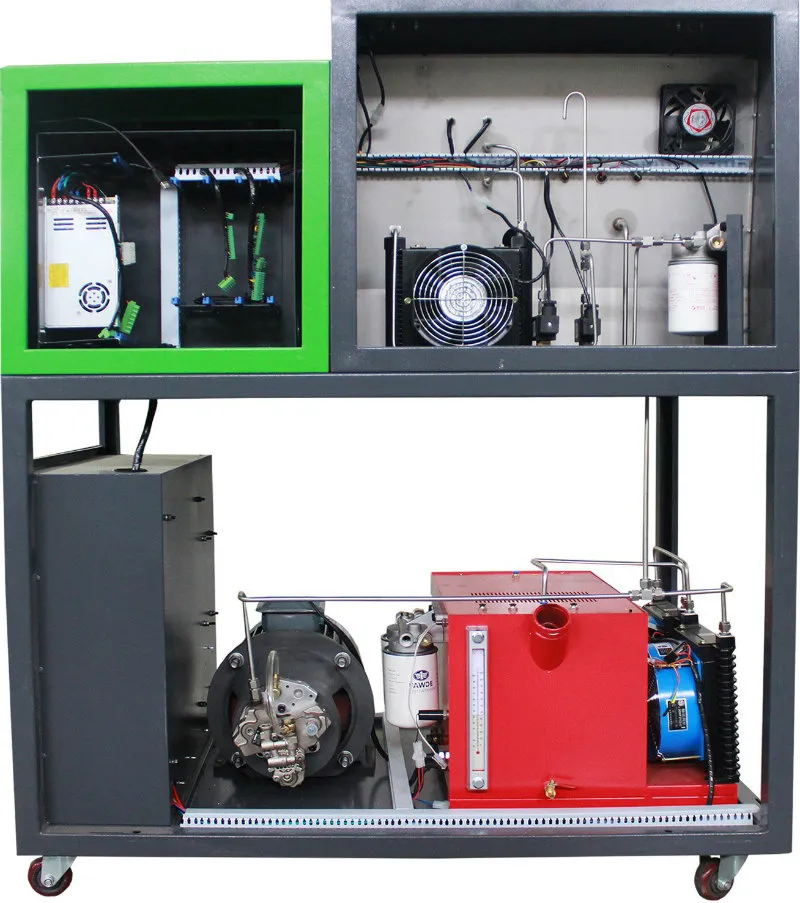

Product Details and Hardware Advantage
| 1. Motor power is 22 KW |
| 2. Air-cooled heat dissipation kit |
| 3. Metering valve detect the fuel flow |
| 4. Imported flow sensor from Germany |
| 5. Equipped with Bosch genuine DRV |
| 6. Equipped with Bosch genuine CP3 pump |
| 7. Equipped with Bosch genuine common rail tube |
| 8. Oil tank (including heating,refrigeration,liquid level detection,temperature detection) |
| 9. Short-circuit protection, ground protection, over-pressure protection during the testing |

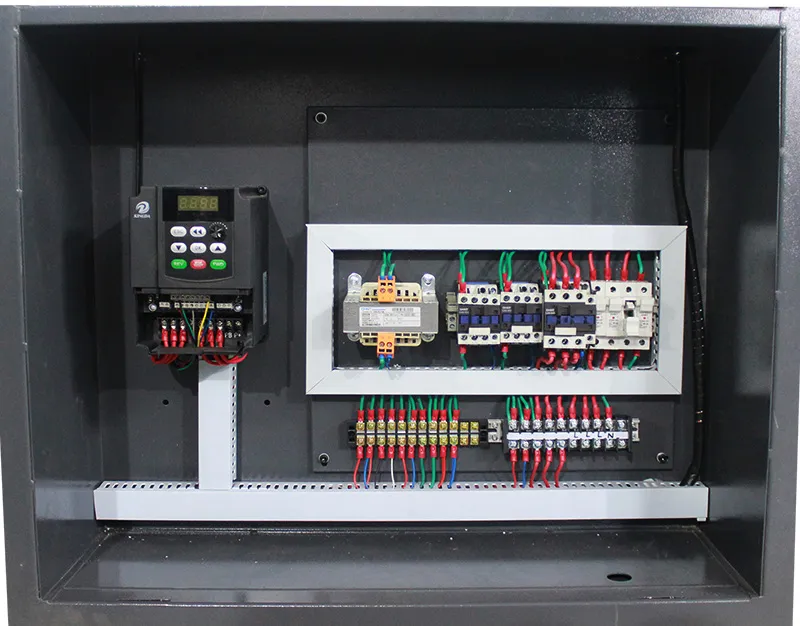

| 10. Equipped frequency converter to achieve testing function under different speed conditions |
| 11. Equipped precise filter before flow sensor, which can effectively keep the sensor clean and extend the flow sensor usage life |
Software Advantage
| 1. Many language interfaces can be switched |
| 2. Bosch datas are from the orginal equipment of EPS708 |
| 3. Denso, Delphi, Siemens data are calibrated from by the latest injectors |
| 4. More than 3000 test data used for different brands injectors calibrations |
| 5. Data backup, system software and database upgrade free charge all the time |
| 6. Automatic testing the fuel quantity of all working conditions, automatic generate report after testing |
| 7. Automatic test injectors under different working conditions, automatic analysis results, and generate report after testing |
| 8. Intelligent algorithm is used to automatically calibrate the fuel quantity of the new injector, and generate reports after testing |
Technical Parameters
| Technical Parameters | |
| Output | 5.5 KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~1450 RPM |
| Rail Pressure | 0~2200 Bar |
| Rail Pressure Precision | ±5 Bar |
| Tank Volume | 18 L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 400 kg |
| Packing Size | 1390×1000×1560 mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40%Deposit, the rest paid before delivery |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

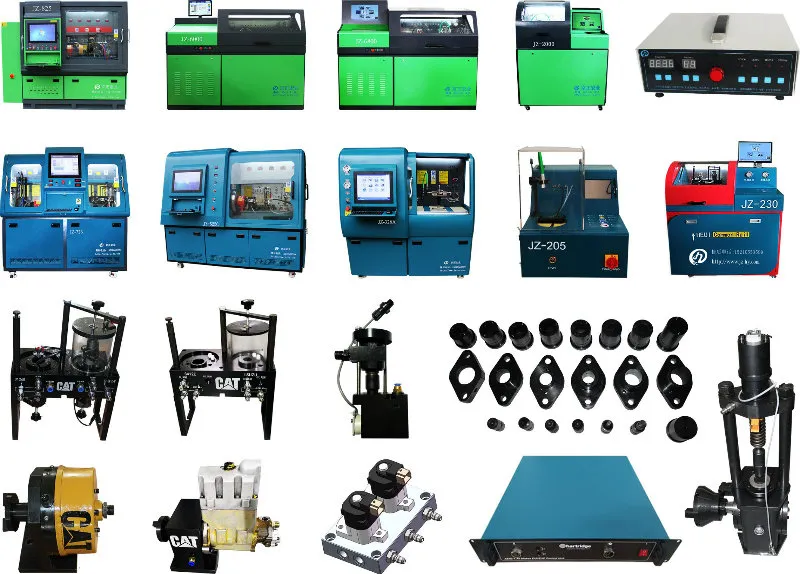

Related Products and Fixtures
Packing and Delivery

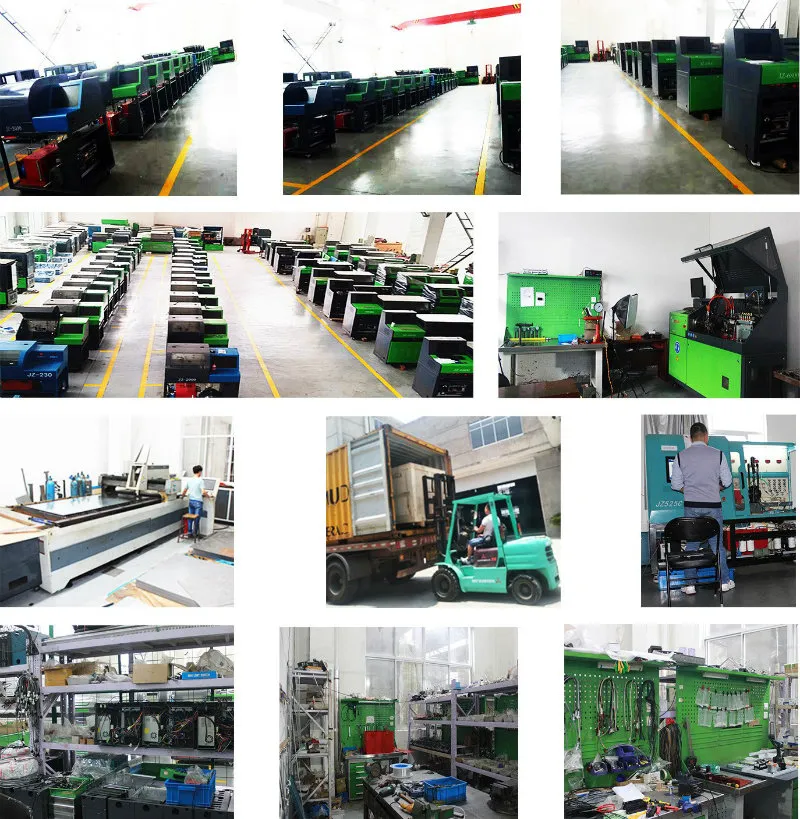

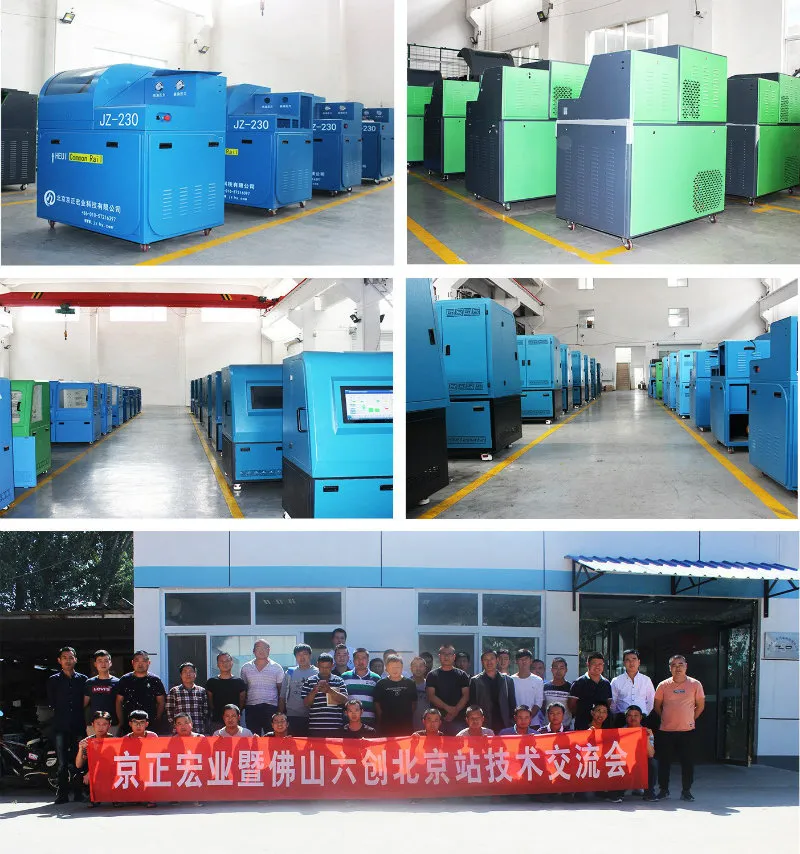

Our Company
Exhibition
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years.
Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, are all from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
