Cr926 Factory Wholesale Heui Eui Eup Diesel Common Rail Piezo Injector Vp37 Vp44 HP0 Cat 320d Pump Test Bench
Automotive CR926 Test Bench Common Rail Test Bench for CRI CRP BIP HEUI HEUP EUI EUP Customized Color CR-926 CR 926 CR925 Product Description CR926 COMMON RAIL TEST BENCH/EUP EUP TEST BENCH/HEUI TEST BENCHCR926 test bench, use import the flow sensor for the measurement means, it can test common rai......
Send Inquiry
Product Description
Automotive CR926 Test Bench Common Rail Test Bench for CRI CRP BIP HEUI HEUP EUI EUP Customized Color CR-926 CR 926 CR925

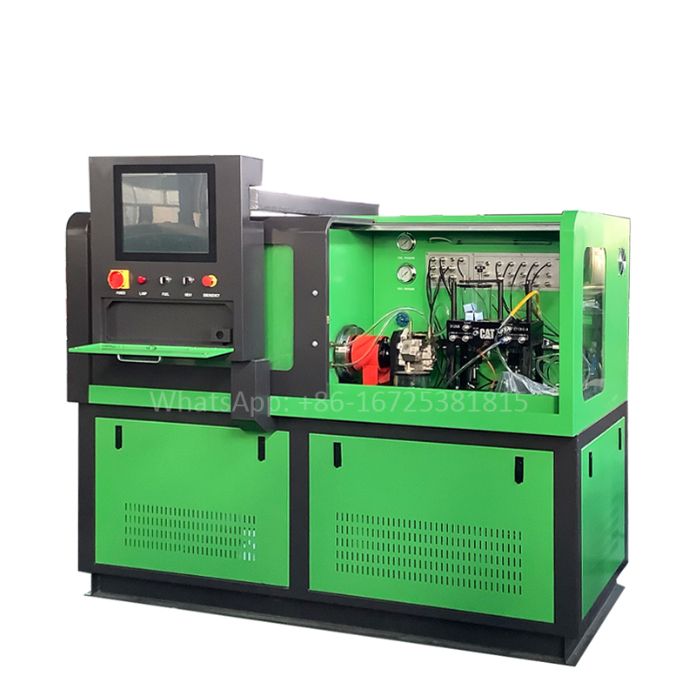

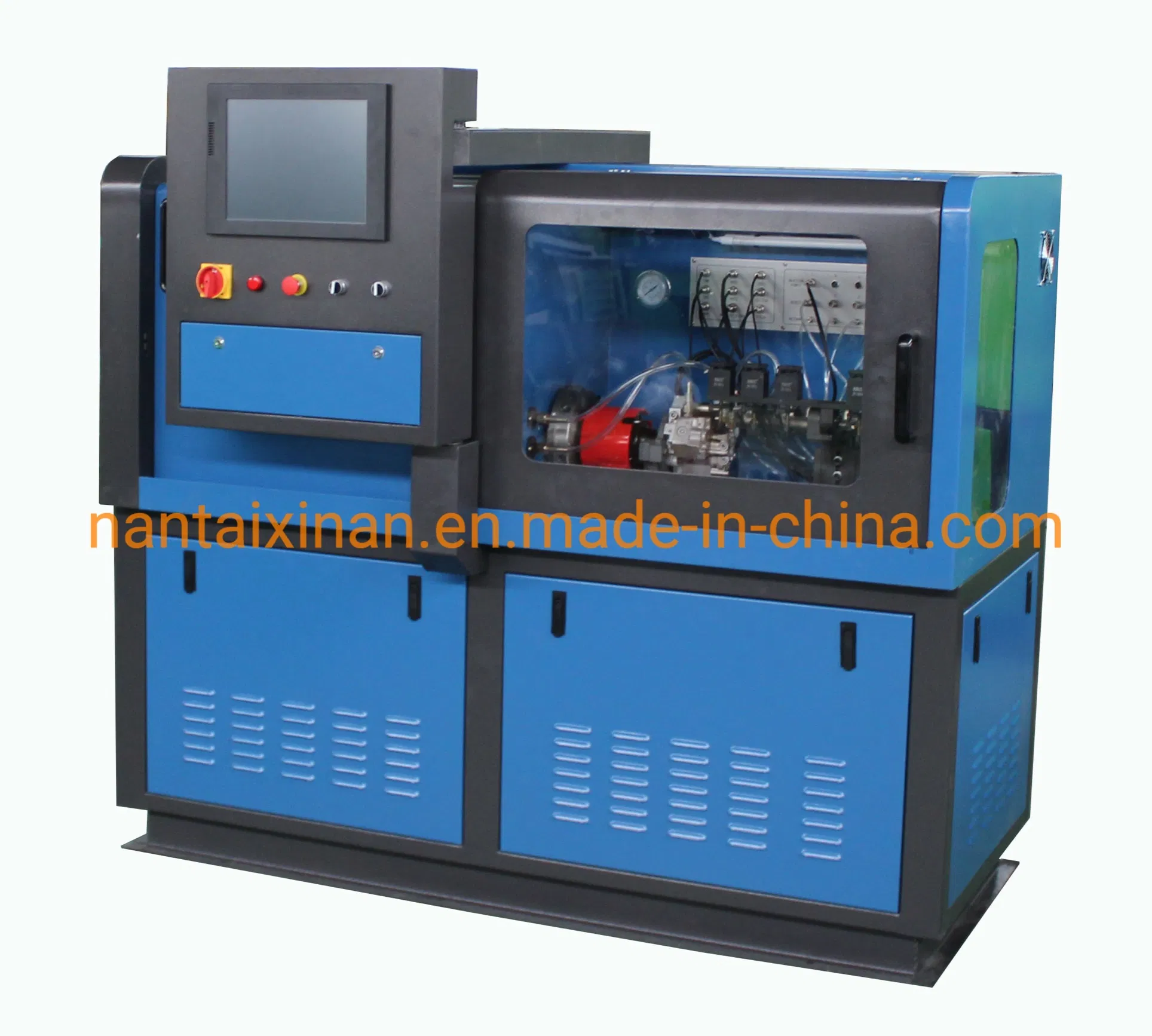

CR926 COMMON RAIL TEST BENCH/EUP EUP TEST BENCH/HEUI TEST BENCH
CR926 test bench, use import the flow sensor for the measurement means, it can test common rail injector and common rail pump,it can add EUI/EUP and HEUI testing function.
Function
1. High-precision flow measurement, it use imported flow sensor, high precision, good repeatability.
2. Test a comprehensive, test injector full load, medium speed, idle, pre-spray and other conditions of the fuel injection.
3. It can test BOSH, DENSO, DELPHI, SIEMENS, CAT etc injector
4. Machine low noise, it is using frequency control, speed prefabricated, low noise, no impact.
5. Advanced control, a key selection, the whole process of detection.
6. Massive data
7.Open data management, the user can add the injector data itself, especially for the new fuel injector standard oil calibration.
8.It with pump flow sensor, it works with high pressure rail sensor to test common rail pumps.
9.It can test CP1, CP2,CP3 ,HP0 etc high pressure common rail pumps.
10. It with Cambox can test EUI EUP and HEUI
Technical parameter
| Power | 7.5KW, 11KW, 15KW, 18.5KW or 22KW |
| Voltage | 380V/50hz/3phase or 220V/60hz/3phase |
| Rotation speed | 0~3000RPM |
| Rail high pressure | 0~2000 bar |
| Test oil filtered precision | 5μ |
| Oil tank | 60L |
| Size | 1900*900*1500 |
| Weight | 800kg |
1. Outside package: Standard marine export plywood case for test bench.
2. Inner package: Stretch film and and plastic film for humidity.
Shipping Details:
We will delivery in 10 working days after received the payment.

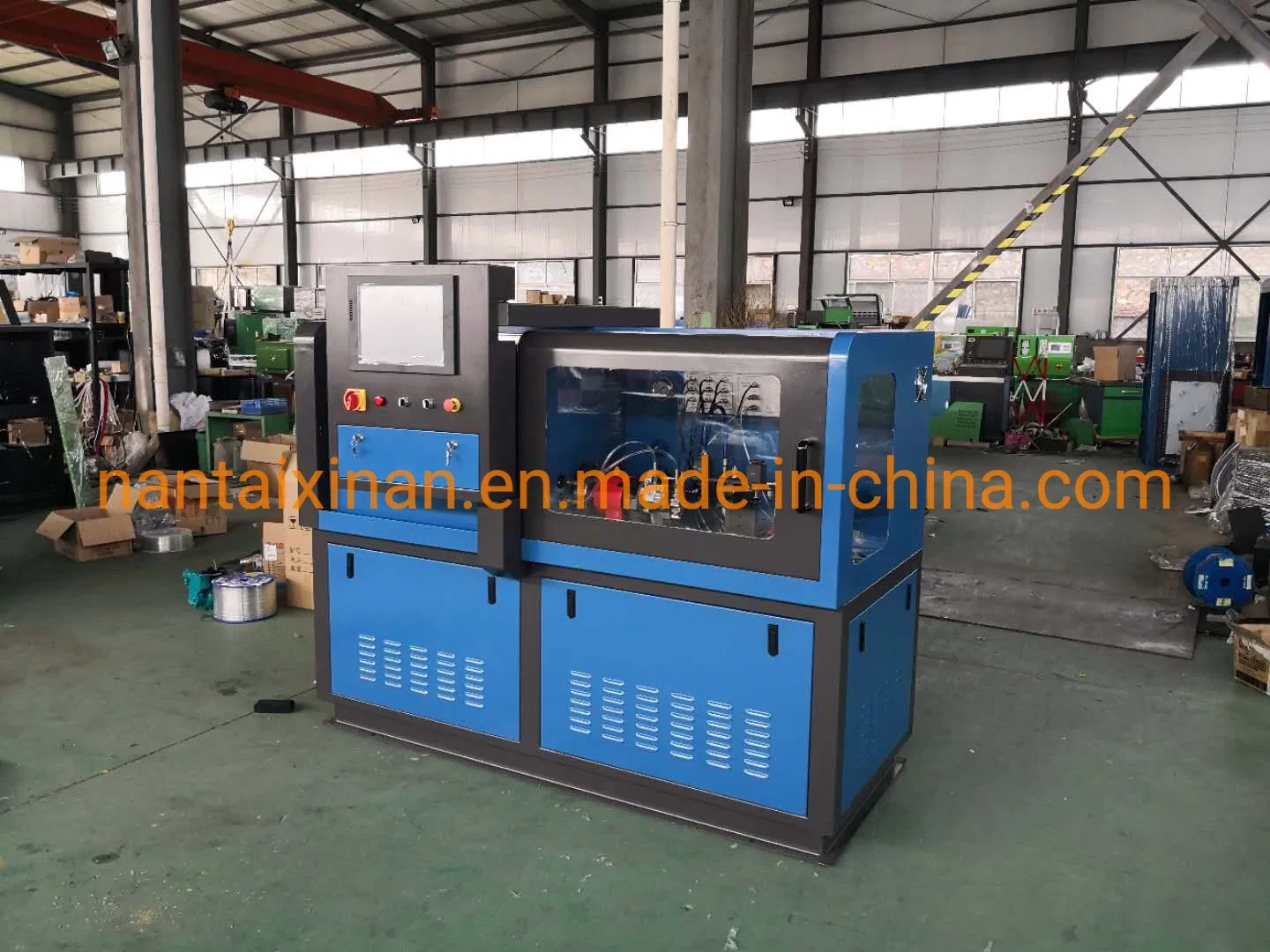

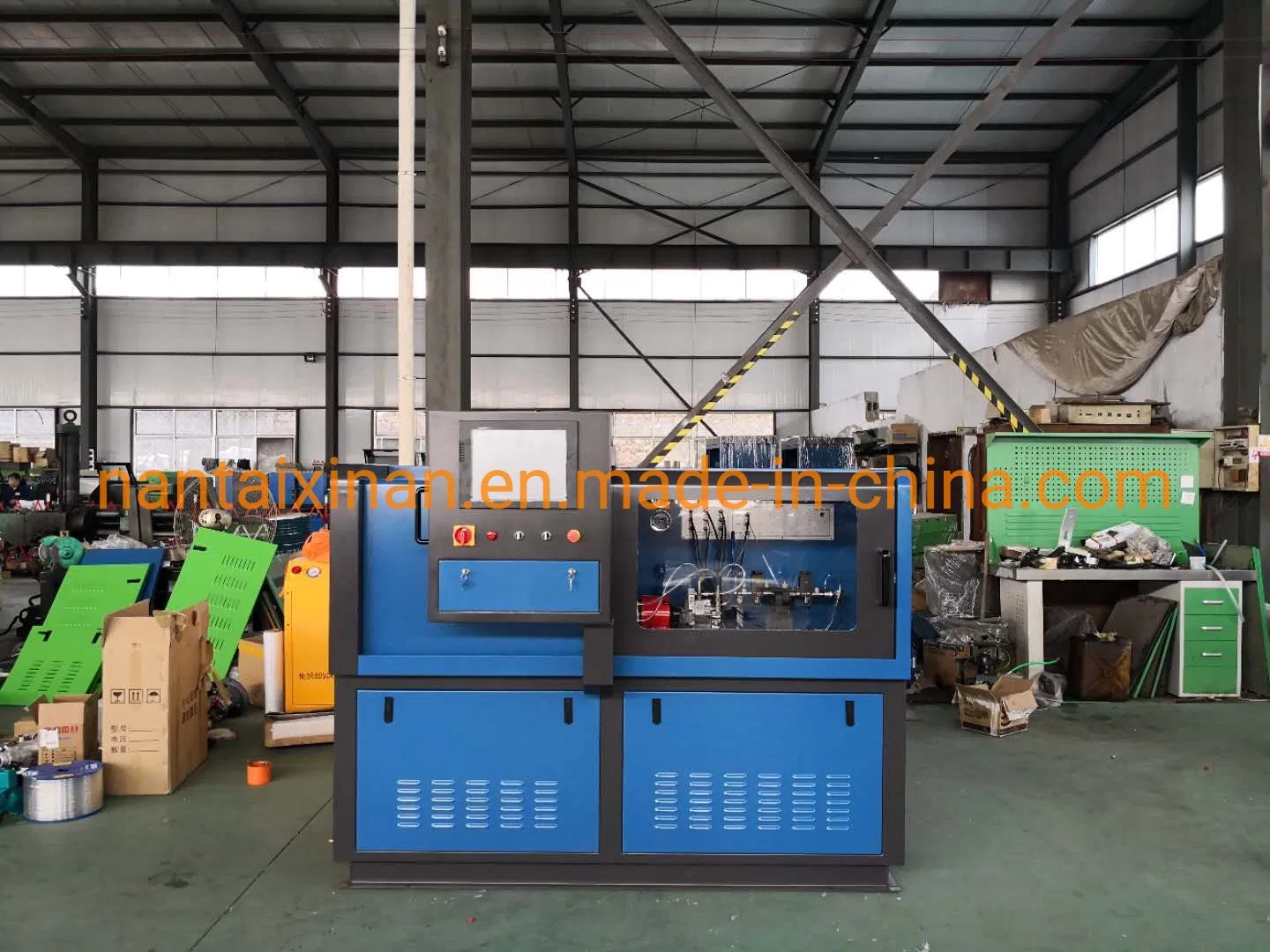

Our Factory:
- TAIAN XINAN PRECISION MACHINERY CO.,LTD. is the leading manufacturer specializing in producing the Diesel Fuel Injection System Tester in the world. available for traditional diesel fuel injection pump test bench, high pressure common rail system test bench , and various kinds of fuel electronic controller pumps test system. Also available the nozzle spare parts and special assemble and disassemble tools for the different pumps.The company has strict internal management and established a complete and reliable quality assurance system, and rewards the ISO9001-2000 CERTIFICATE and CE CERTIFICATE.
- The company's product sale network has spears all over the world, which can provide the best service for users timely.
