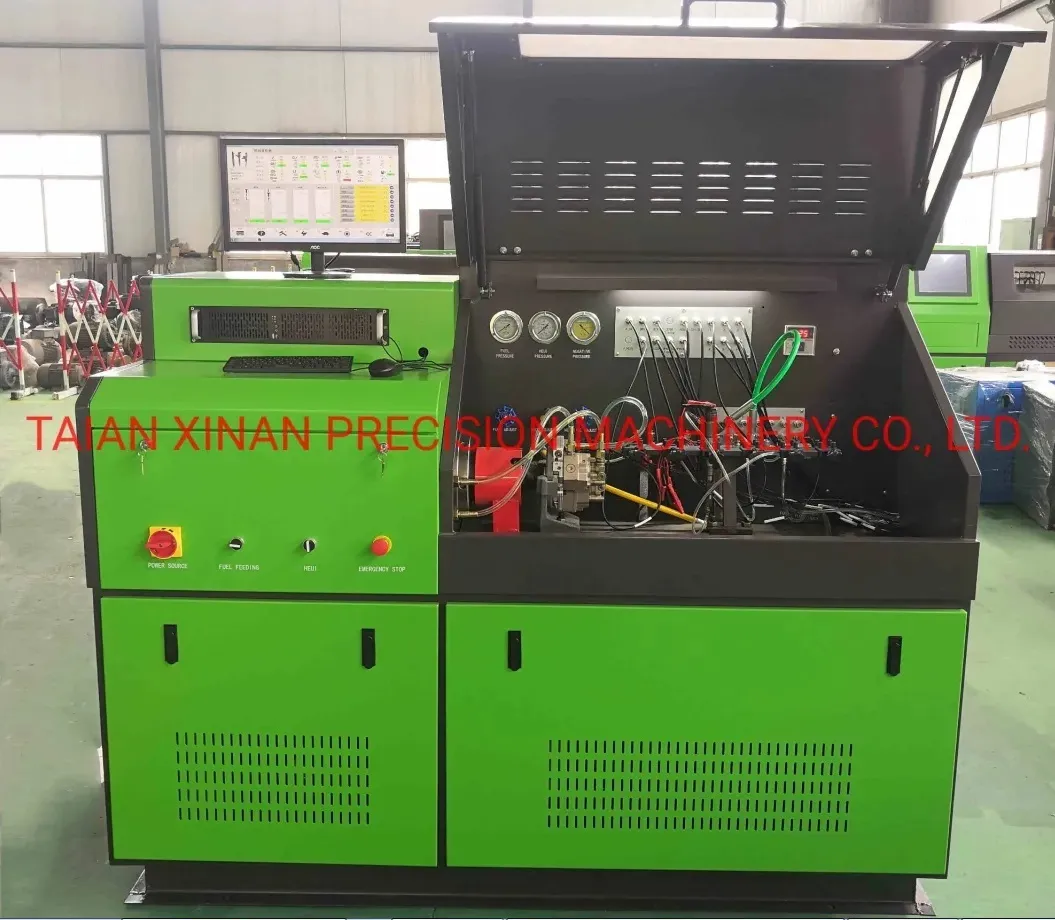

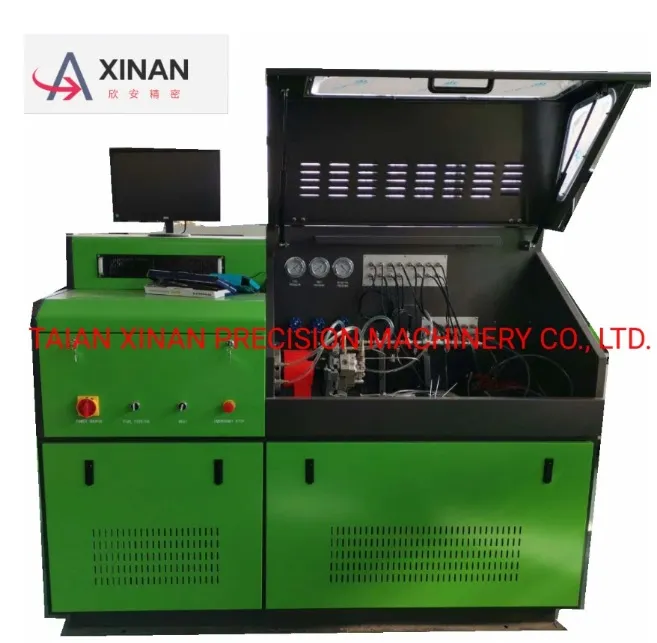

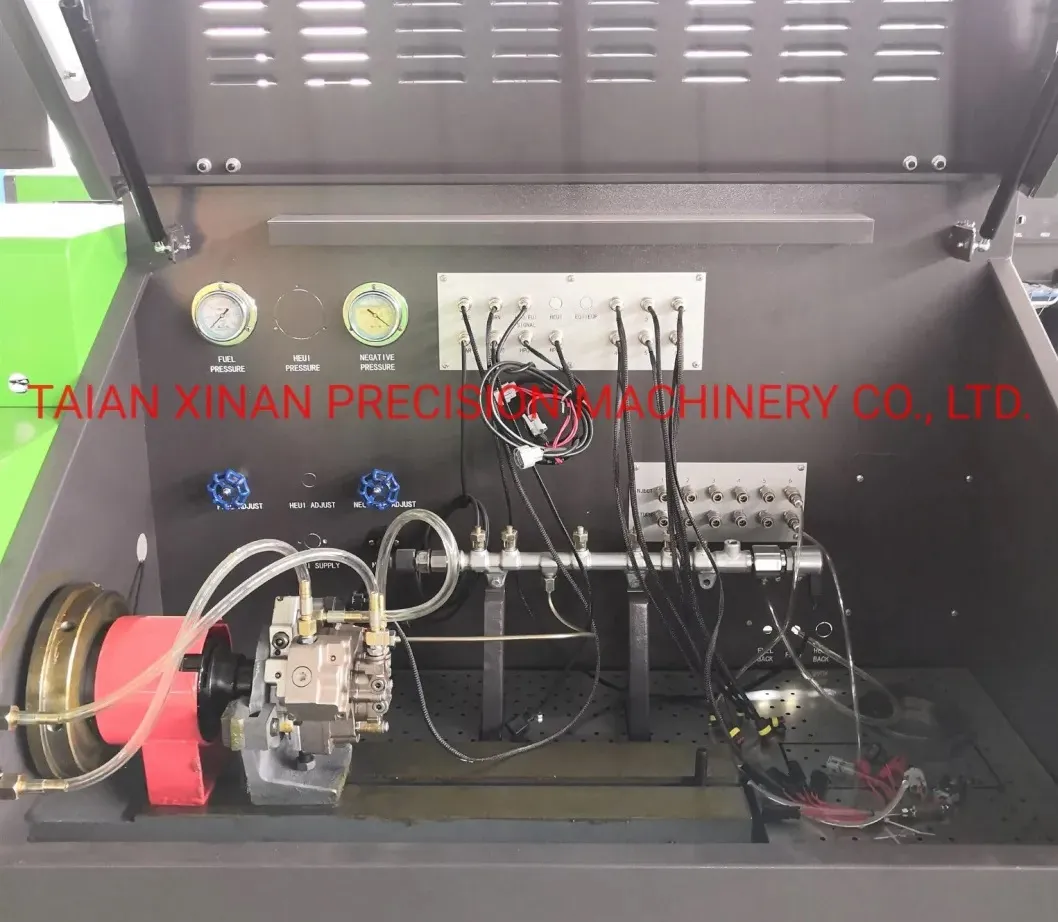

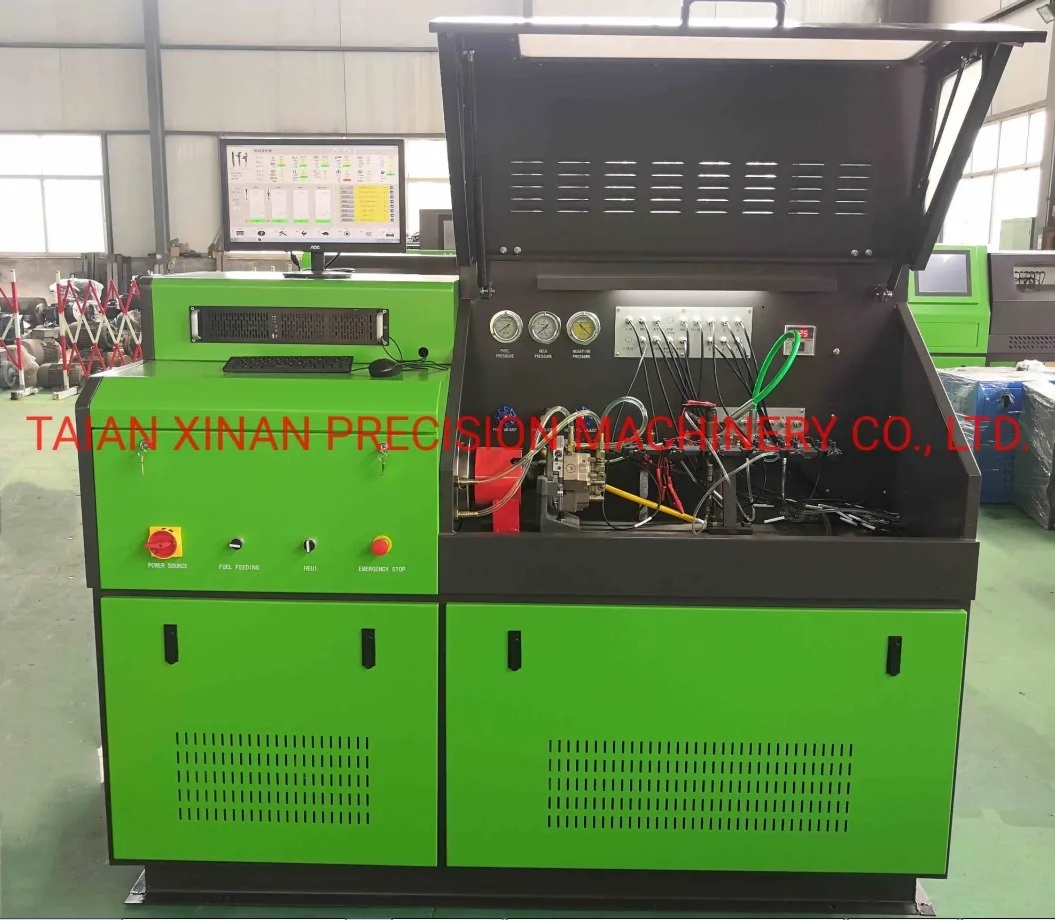

              Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench
              • Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench
              • Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench
              • Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench
              • Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench

              Cr3000A-708 All Function Common Rail Test Bench Eui /Eup Test Bench Heui Test Bench

              CR3000A-708 ALL FUNCTION COMMON RAIL TEST BENCH EUI/EUP TEST BENCH HEUI TEST BENCHFeatures:1, Automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brand models of electromagnetic injectors and piezoelectric injectors.2, Automatic detection of all common rail pumps.3, Automatic detection of......

              Send Inquiry

              Product Description

              Cr3000A-708 All Function Common Rail Test Bench Eui/Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui/Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui/Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui/Eup Test Bench Heui Test BenchCr3000A-708 All Function Common Rail Test Bench Eui/Eup Test Bench Heui Test Bench



              CR3000A-708 ALL FUNCTION COMMON RAIL TEST BENCH EUI/EUP TEST BENCH HEUI TEST BENCH
              Features:

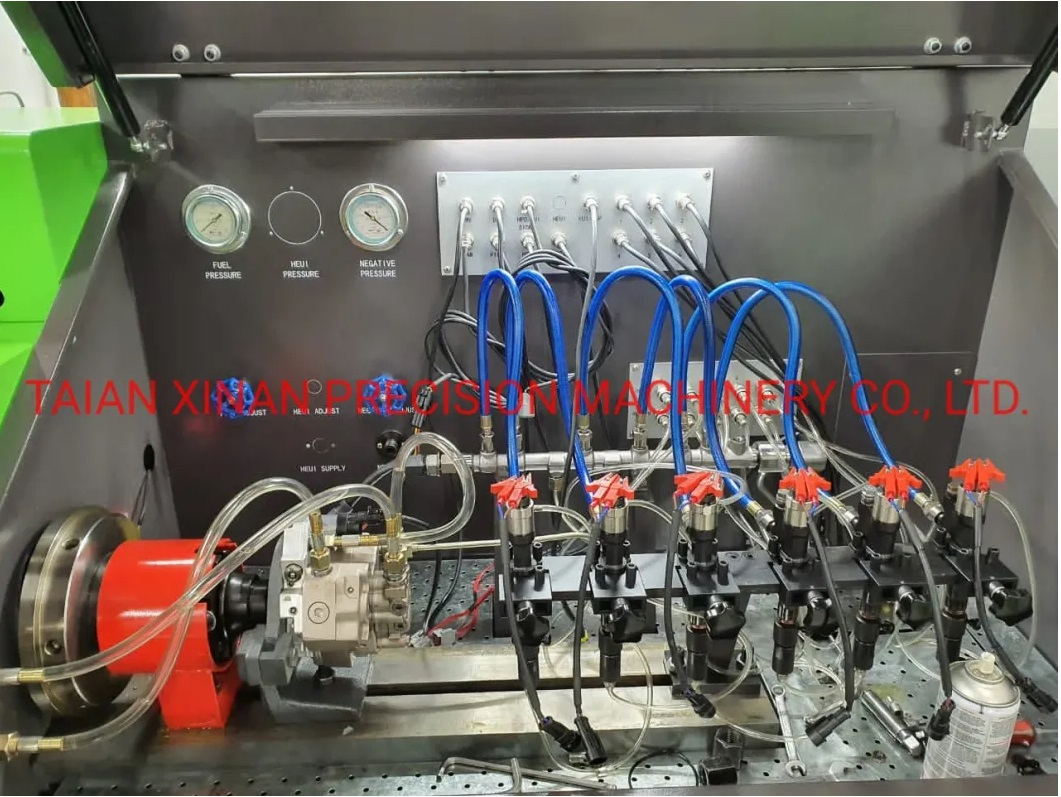

              1, Automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brand models of electromagnetic injectors and piezoelectric injectors.
              2, Automatic detection of all common rail pumps.
              3, Automatic detection of all actuation pumps.
              4, Automatic detection DENSO HP0 pump
              5, Automatic detection of BOSCH, CAT, CUMIMINS, DELPHI, Benz, Volvo and other models of EUI/EUP ( Electronic Unit Injector/ Electronic Unit Pump ), and dual solenoid valve injector. (Optional)

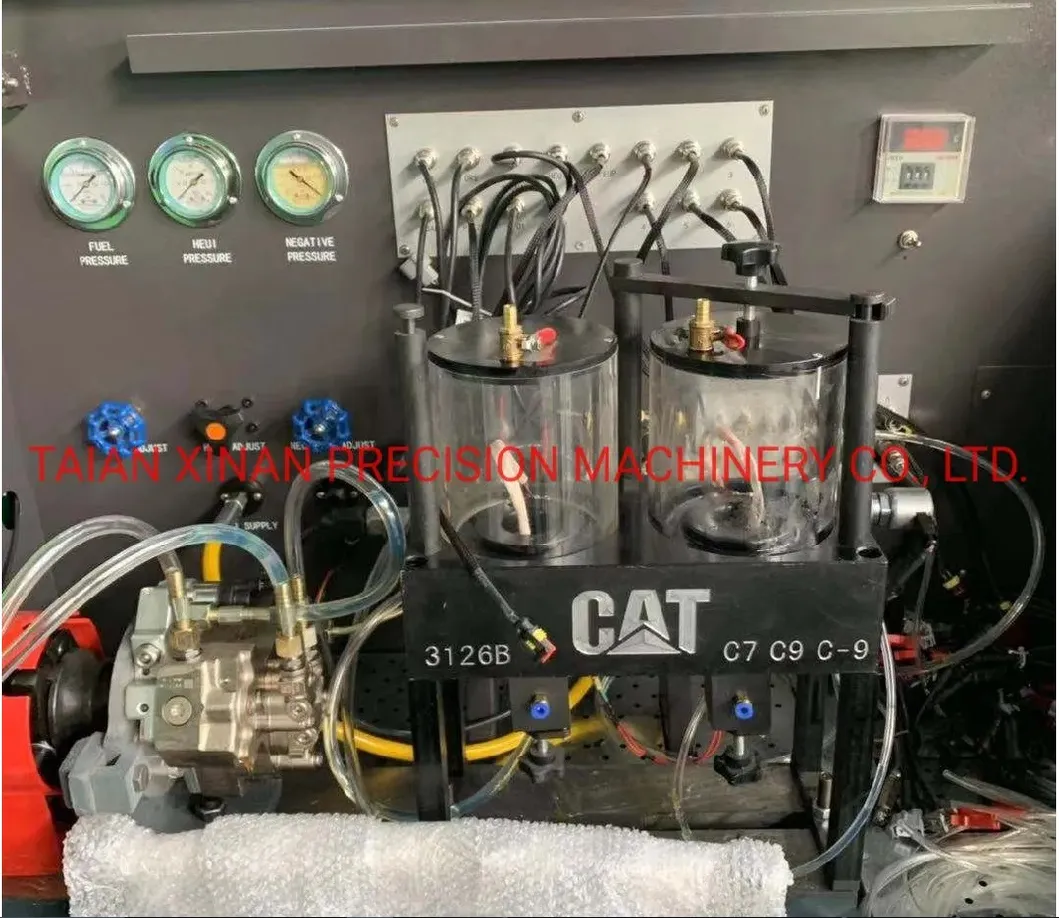

              6, Automatic detection of CAT C7/C9/C-9/C3126/3408 medium pressure common rail injector (HEUI). (Optional)
              7, Automatic detection BOSCH VP44 pump. (Optional)
              8, Automatic detection BOSCH electronically controlled VE pump. (Optional)
              9, Can customize and develop different and application programs according to customer needs.
              Configuration:
              1, Embedded industrial computer system, color LCD touch screen control, easy operation, stable performance.
              2, The system memory standard data for various injectors and pumps.
              3, Randomly configure BOSCH CP3.3 oil pump.
              4 Configuration BOSCH DRV valve, pressure range 0-2400BAR. Rail pressure accuracy +, - 0,5bar.
              5, High-precision flow sensor, flow rate range of 0.008-8L/min. Accuracy 0.3%.
              6, High precision cam drive device. (Optional)
              7, Power is 7.5KW/11KW/15KW, three-phase 220V/380V, single phase 220V voltage is optional.
              Technical Parameters:
              1, Output power: 7.5KW, 11KW, 15KW. (Optional)
              2, Optional input voltage: three-phase 380V, three-phase 220V, single-phase 220V optional
              3, Motor speed range: 0-4000RPM,
              4, Working pressure adjustment range: 0-2000bar
              5, Flow measurement range: 0-600ml/1000 times
              6, Flow measurement accuracy: 0.1ml
              7, Temperature control range: 40 +-2
              8, Temperature cooling method: air-cooled / forced cooling optional
