Common Rail Injector Repair Lab Equipment Test Bed
Product IntroductionJZ-919 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3-----6 injectors andhigh-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The ex......
Send Inquiry
Product Description
Product Introduction

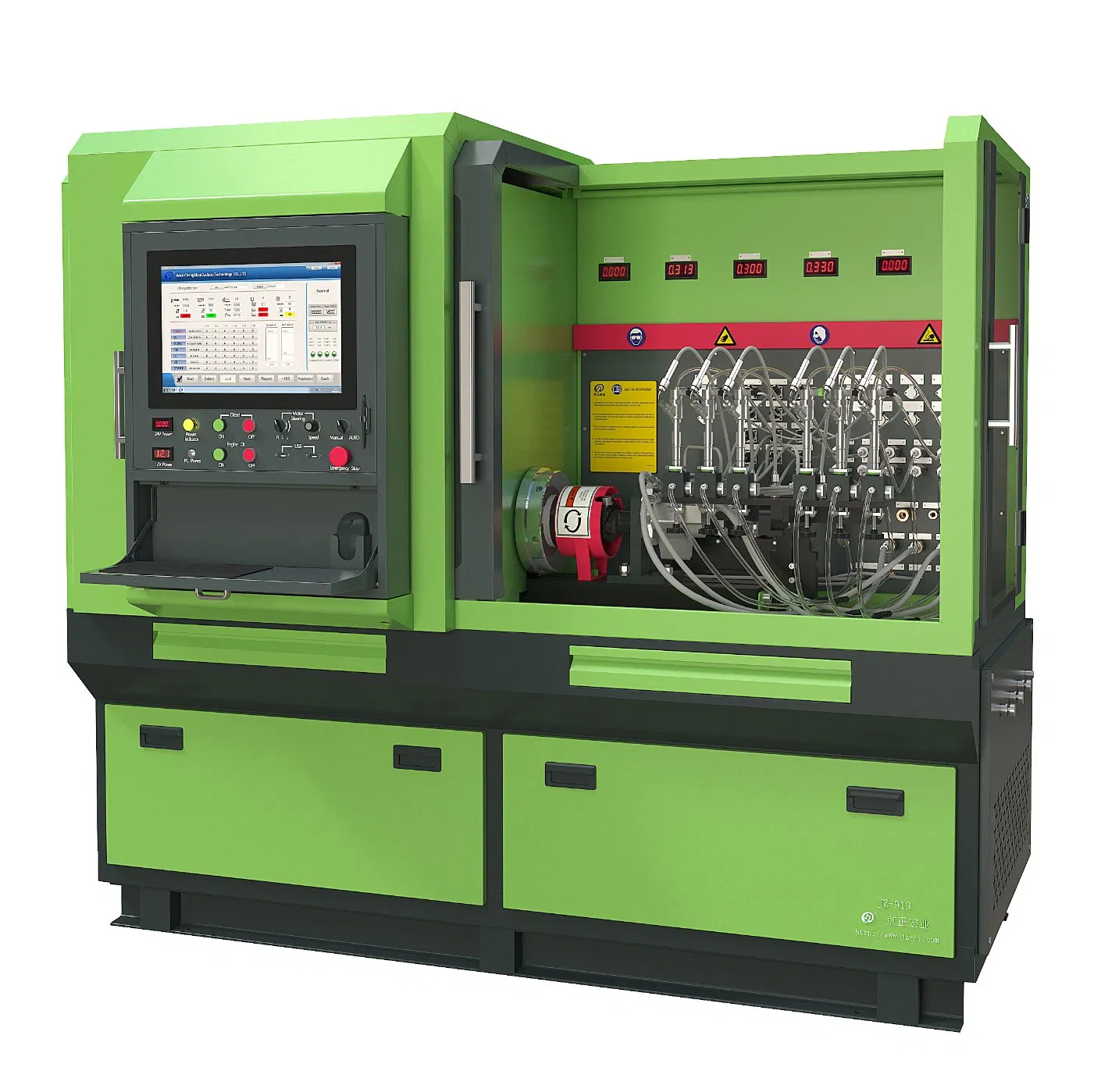

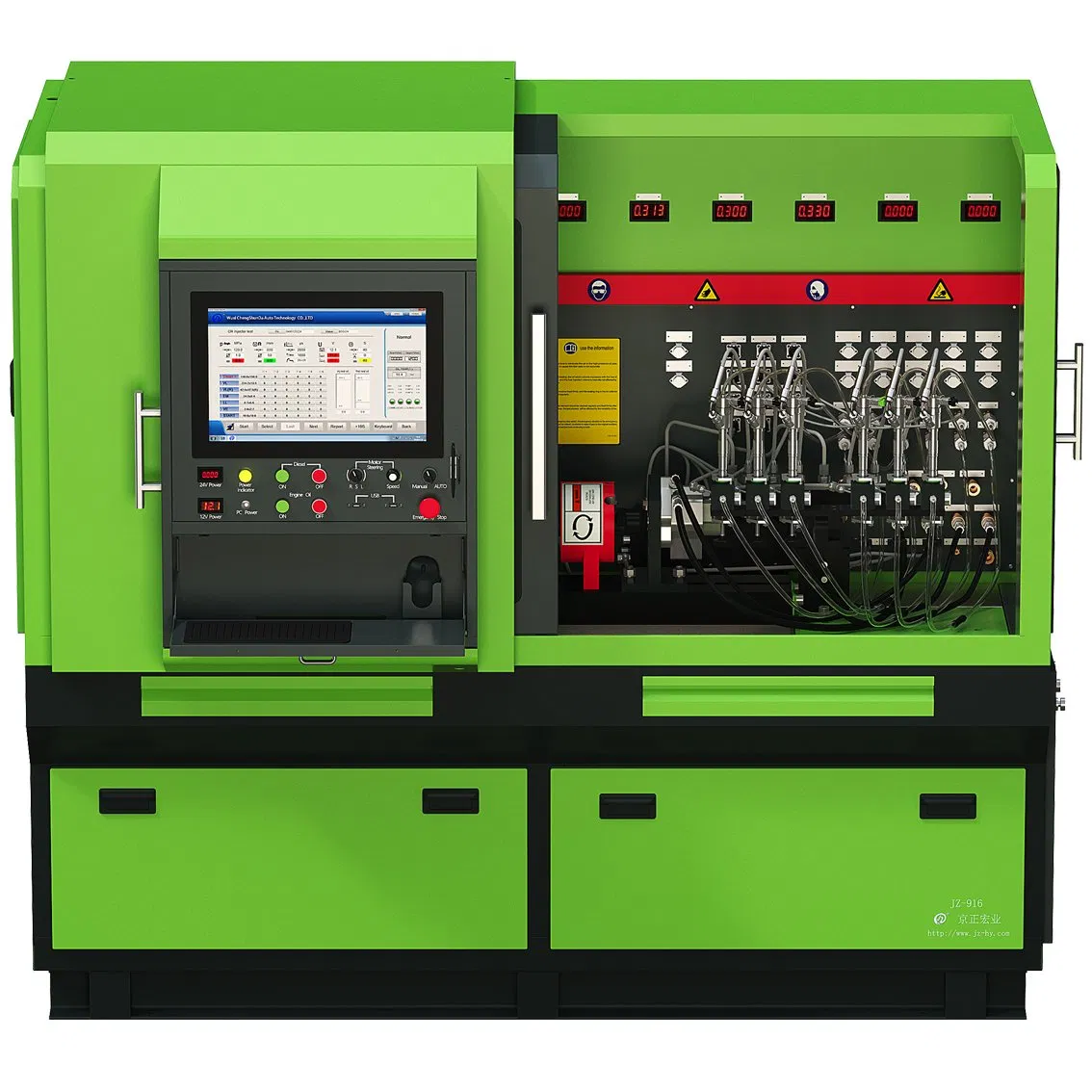

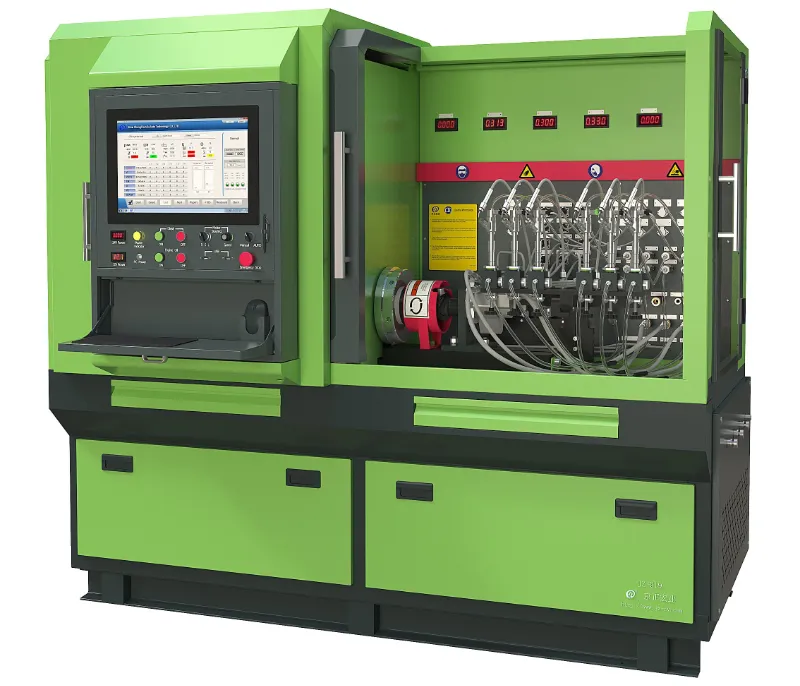

JZ-919 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3-----6 injectors andhigh-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description
Technical Parameters
Testing Scope
Related Products
Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
JZ-919 multi-function test bench adopts full automatic control, which can conveniently repair and test Euro-3-----6 injectors andhigh-pressure pumps. It can test thousands of injectors and high-pressure pumps, including Bosch, Delphi, Denso, Siemens, Caterpillar and so on. The experimental data are complete.
It can also be equipped with unit pumps & unit injectors, medium pressure injectors testing, actuated pumps and other optional functions.
Functions Description

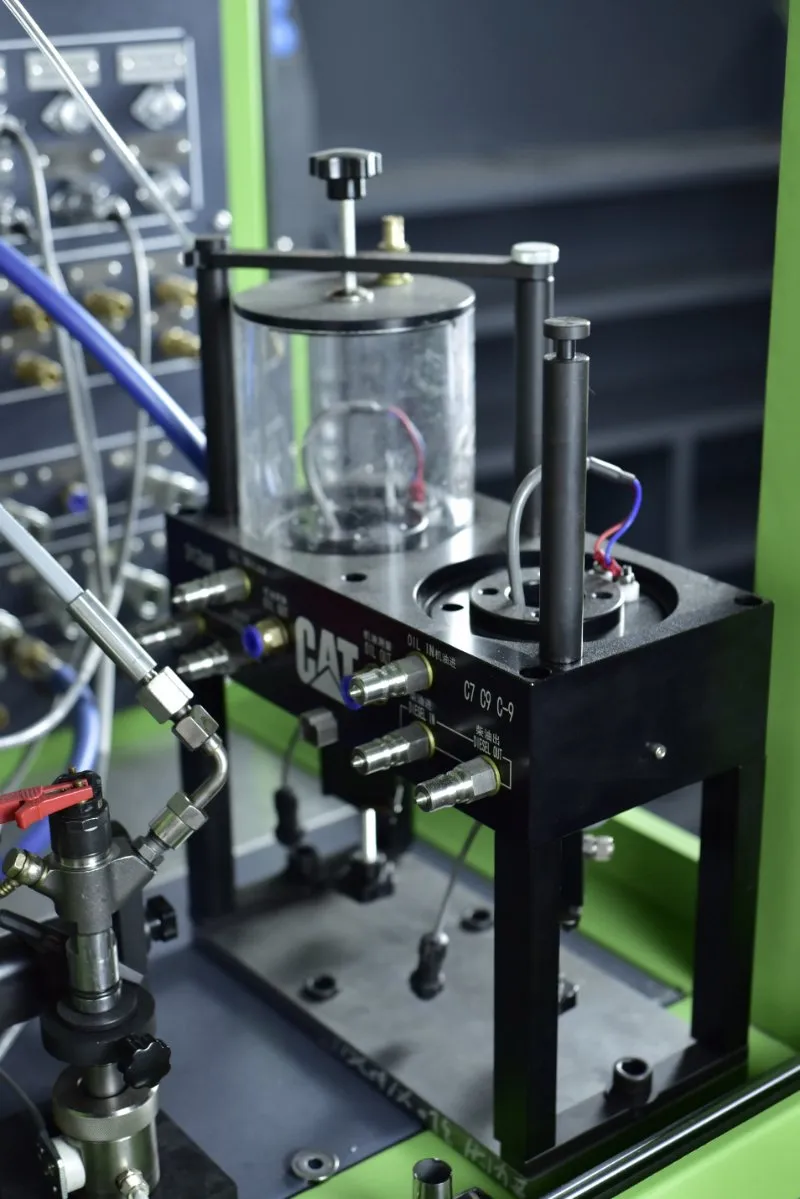

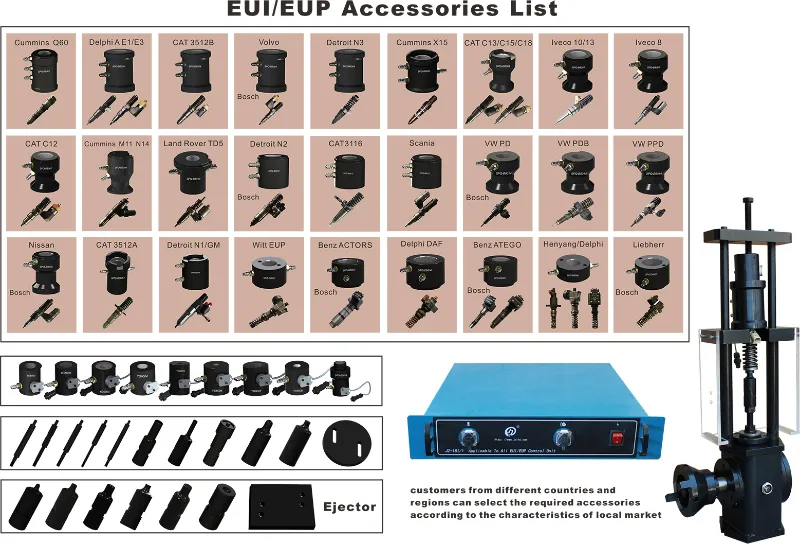

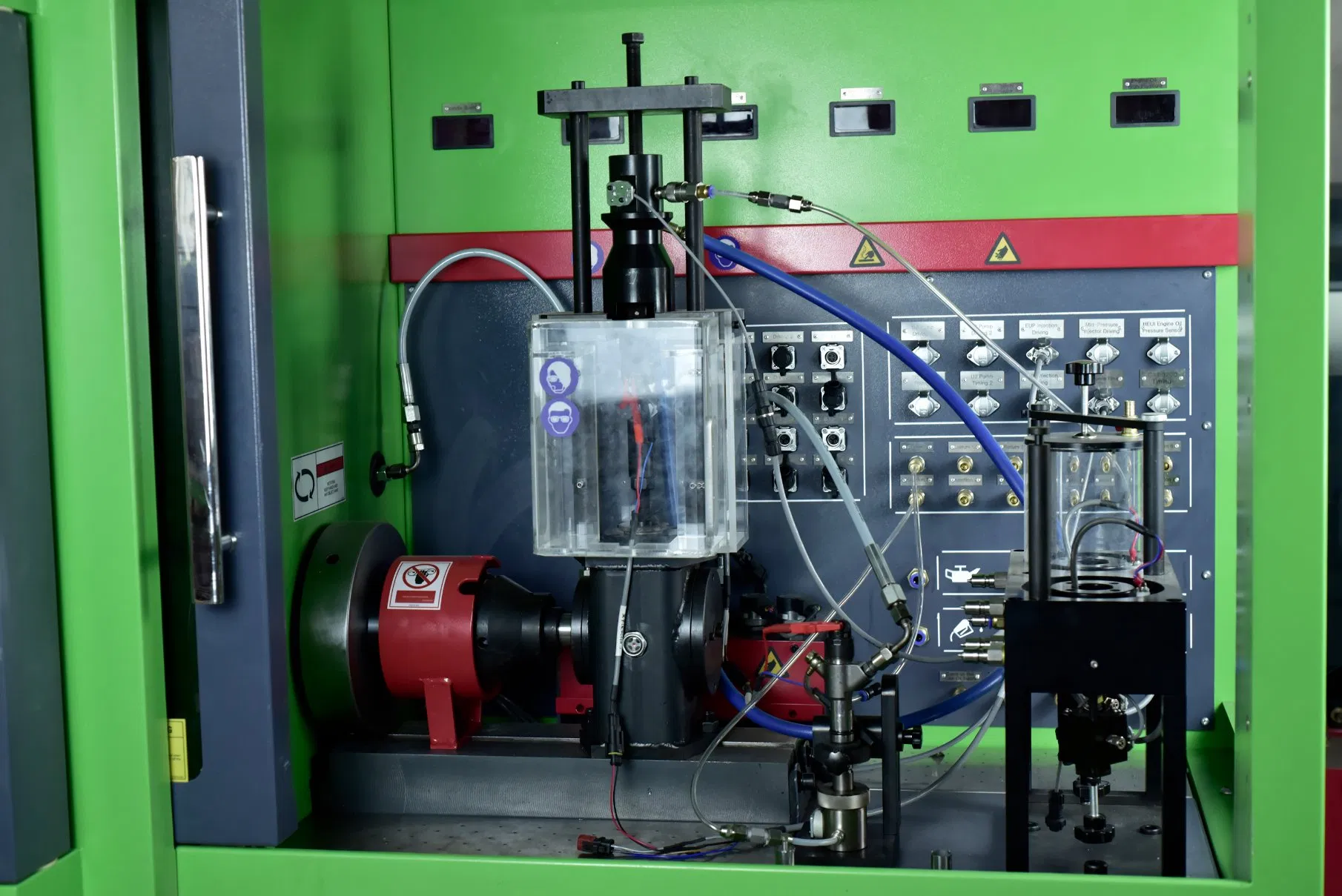

- Can test EUI & EUP

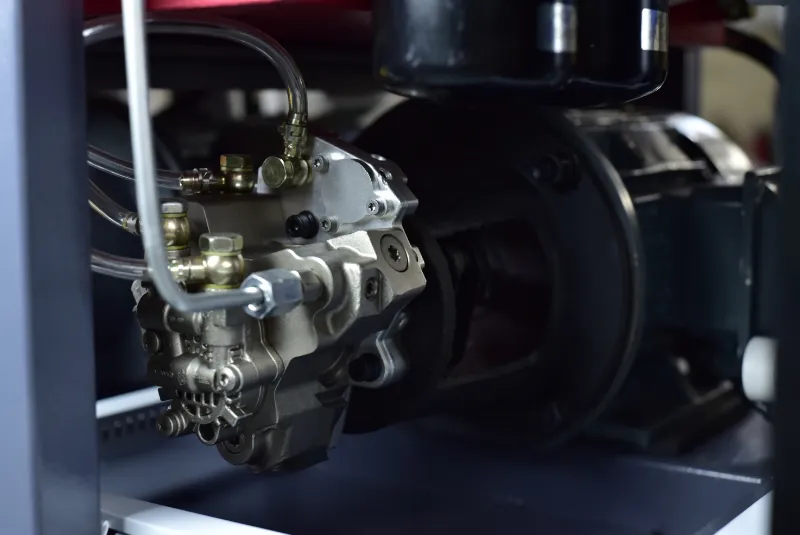

- Can test common rail high pressure oil pump
- Can test HEUI injector
- Can test HEUI actuation pump
- Can test solenoid valve injector
- Can test piezoelectric ceramic injector
- Can test 4-pin injector (optional)
- Can test 4-cylinder common rail oil pump (optional)
- Can test X15, Q60 single pump (optional)
- Remote upgrade, system update, technical guidance
- Can test 6 injectors at the same time (optional)
- Can test Cummins HPI Actuator (optional)

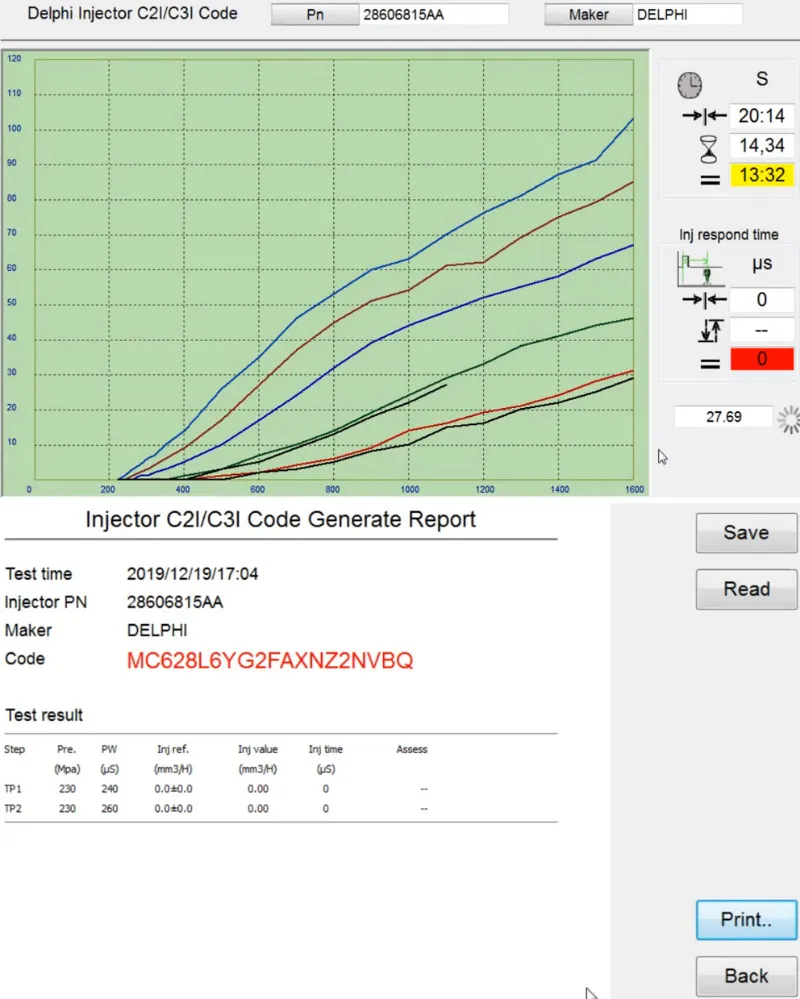

- Electronic measuring system
- Dual DRV configuration
- The lowest limit alarm of the oil level
- Imported flow sensor
- Oil nozzle opening pressure flow
- Flow sensor linear calibration
- Common rail with filter function
- High pressure filter blockage reminder

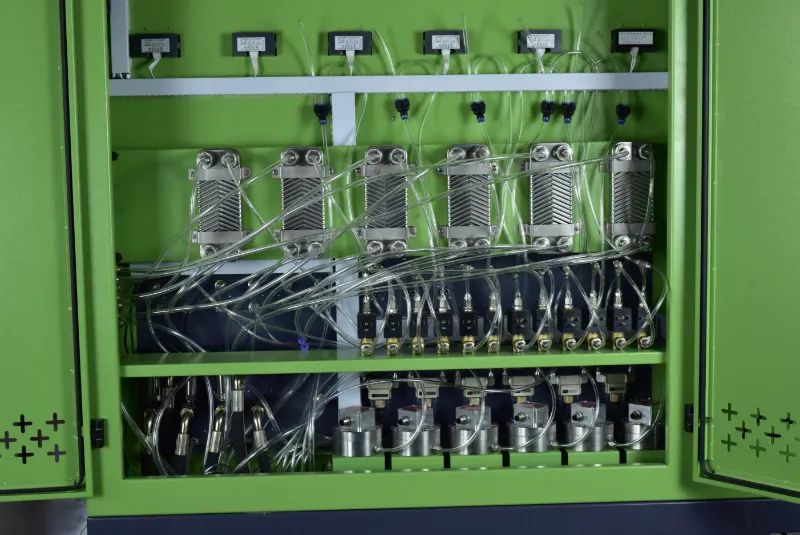

- 9 flow sensor metering units
- Jet drive and system voltage monitor

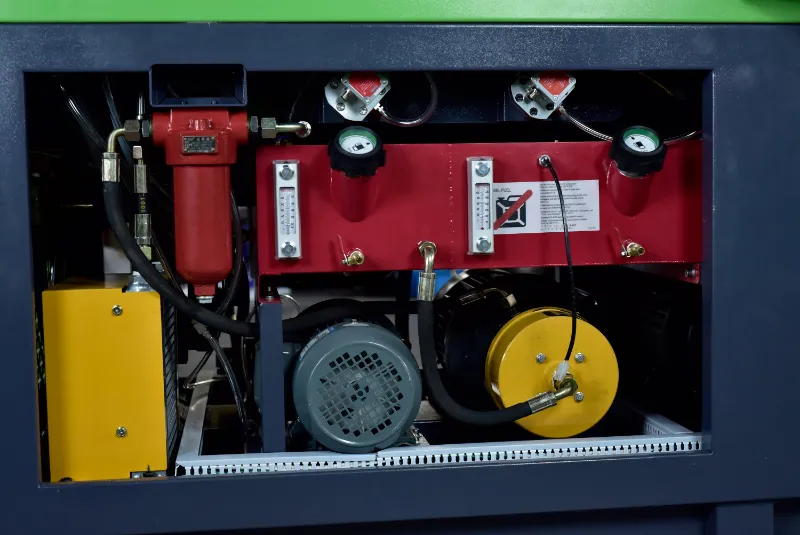

- Internal integrated oil actuated pump and high pressure common rail pump
- Expand the use of the operating room without switching

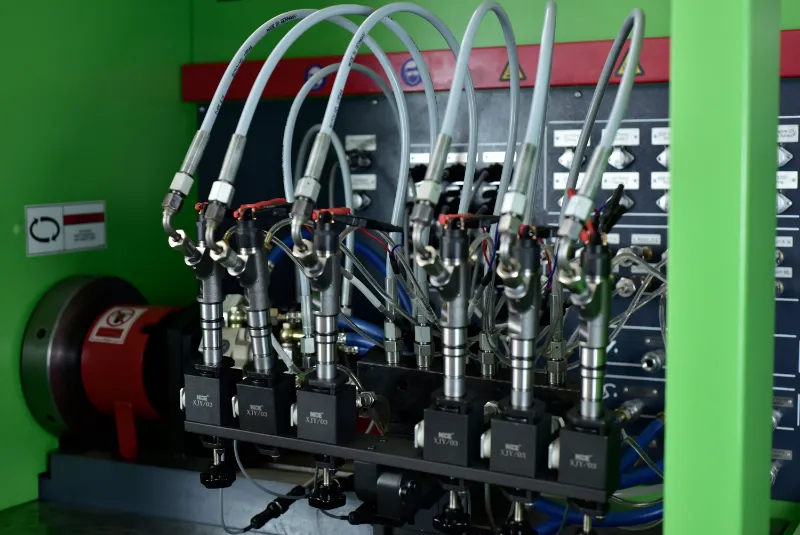

- Can test 4-6 injectors at the same time, not the rotation test of solenoid valve switching
Technical Parameters
| Technical Parameters | |
| Output | 15KW |
| Power | 3-Phase 4-Wire 380V 50/60HZ |
| Speed | 0~4000 RPM |
| Rail Pressure | 0~2700 Bar |
| Rail Pressure Precision | ±5 Bar |
| Oil Tank Volume | Diesel: 40L Engine: 20L |
| Fuel Temperature | 40±2ºC |
| Filter Precision | < 5μm |
| Gross Weight | 1000 kg |
| Packing Size | 1980×1100×1800mm |
| Speed Control Model | Converter Control |
| Temperature Control System | Air Conditioning Heat Dissipation |
| Nozzle Sensor | Imported Original Elliptical Type Flow Sensor |
| Fuel Pump Sensor | Imported Original Vane Type Flow Sensor |
| Language | English, Spanish, Russian,etc |
| Material | Metal Plate |
| Painting | Powder Painting, Durable |
| Color | Green (can be customized) |
| Logo | Jing Zheng Hong Ye (can be customized) |
| MOQ | 1 Piece |
| Payment | 40% Deposit, the rest paid before shipment |
| Warranty Time | 12 months |
| Delivery time | 30 days after prepaid |
| Shipping Packing | Wooden Case |

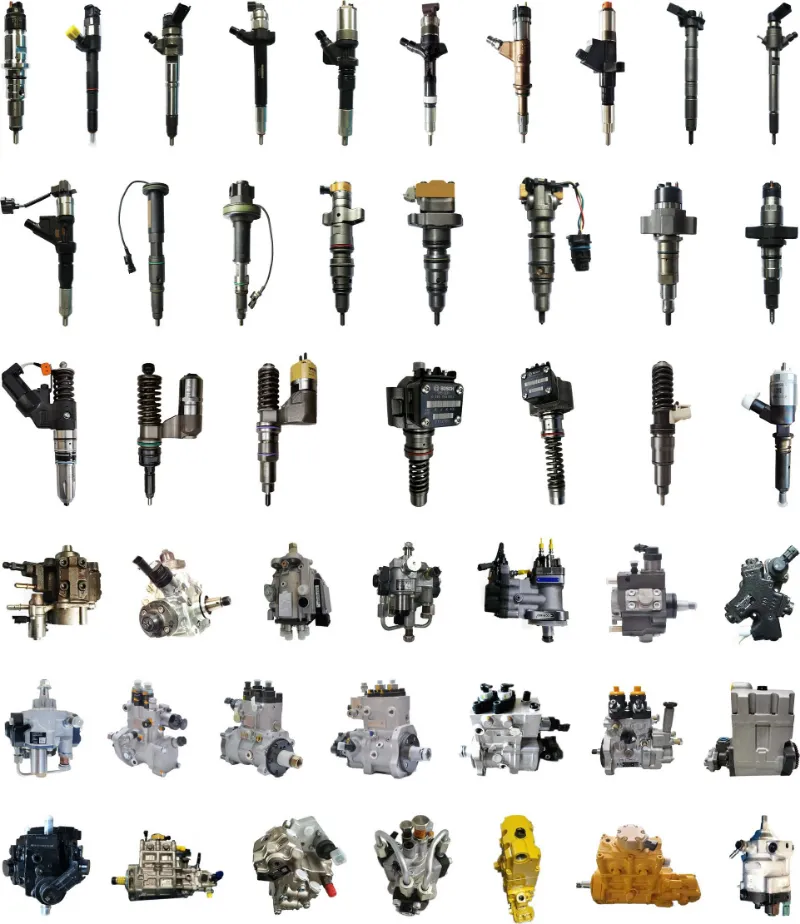

Testing Scope

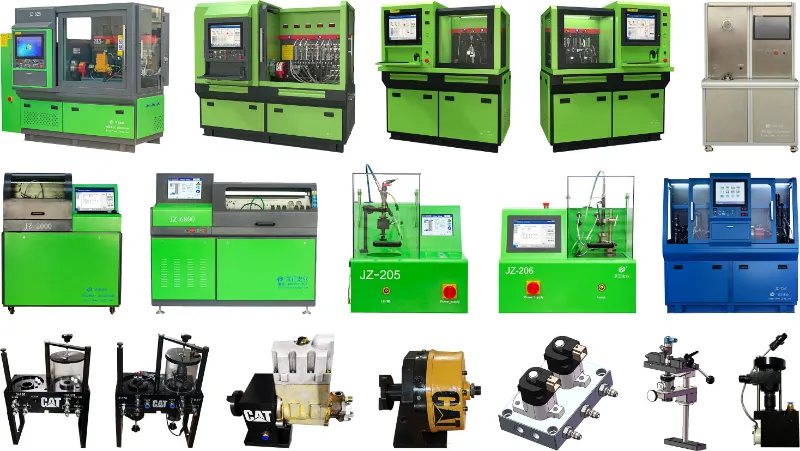

Related Products

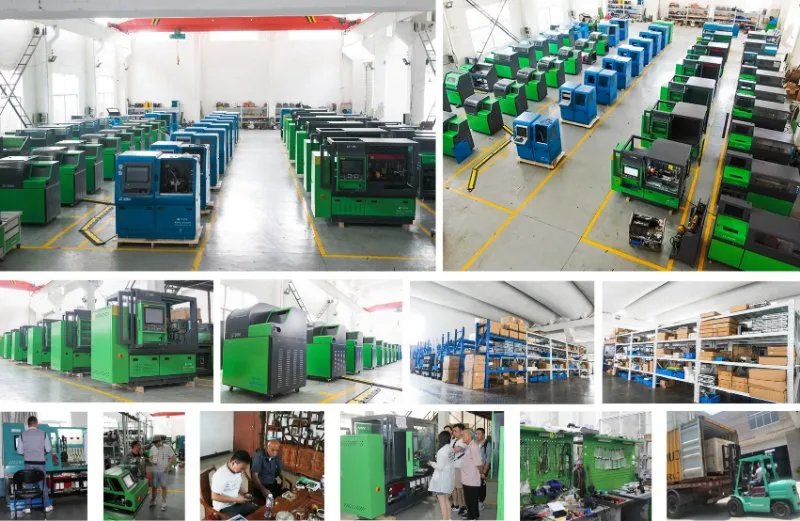

Our Company
Why Choose Us
1. Our company has our own maintenance center with an area of 1200 square meters. It has been servicing the diesel fuel engine system for 20 years. Rich maintenance experience, let our products pay more attention to solving the difficult problems in maintenance.
2. Independent design and development team,and produce experience.
3. Almost all important parts of the equipment are come from top suppliers in the industry, such as DRV, common rail tube, CP3 pump, from original of Bosch.
4. Strict QC, good pre-sale and after-sale service, Providing remote assistance services free.
5. Customized according to customer requirements, such as appearance, color, etc.
