Commercial Vehicle OBD Scanner with GPS Tracking Tk228 -Kh
TK228 Plug & Play OBD GPS Tracker is lastest design of 2015.It's the integration of OBD GPS tracker, RFID Car Alarm, and Bluetooth Diagnostics.Features& Functions1. Plug & play design with OBD-II connector, compatible with vehicles with OBD-II connector, 2. It is the integration of G......
Send Inquiry
Product Description

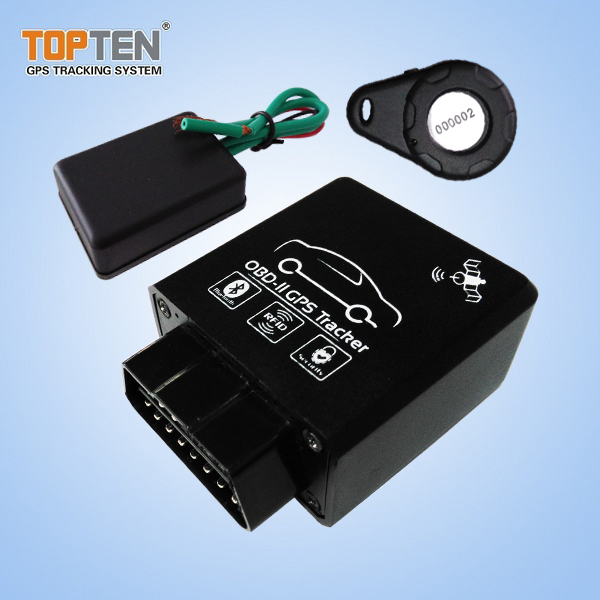

TK228 Plug & Play OBD GPS Tracker is lastest design of 2015.
It's the integration of OBD GPS tracker, RFID Car Alarm, and Bluetooth Diagnostics.
Features& Functions
1. Plug & play design with OBD-II connector, compatible with vehicles with OBD-II connector,
2. It is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm, once RFID tag is away, if the device is taken out, it will trigger this alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID ID identification function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Industrial design, suitable for extremely harsh condition of work;
16. With IOS APP and Android APP for tracking;
17 Transmission of the following data via blue-tooth or GPRS:
(1) Battery's voltage, RPM, speed, TPS throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
18. Work with wireless immobilizer to cut off engine and send alarms
Specifications:
Multiple reports:
History trip report
Driving report
Parking report
Idling report
Speed report
Mileage report
Geo-fence report
Alarm report
OBD report
RFID report
It's the integration of OBD GPS tracker, RFID Car Alarm, and Bluetooth Diagnostics.
Features& Functions
1. Plug & play design with OBD-II connector, compatible with vehicles with OBD-II connector,
2. It is the integration of GPS tracker + RFID Car alarm + Bluetooth Diagnostics;
3. Arm/disarm by SMS/phone call, or by 2.4G RFID tag automatically;
4. Check the real physical address (such as city name, street name.) directly;
5. Track by SMS/website to get the latitude, longitude, speed, direction & odometer etc.;
6. Movement alarm, Over-speed alarm, Geo-fence alarm;
7. Engine on alarm, power failure alarm, vibration alarm;
8. Anti-tamper alarm, once RFID tag is away, if the device is taken out, it will trigger this alarm;
9. Built-in shock sensor for power saving & triggering vibration alarm;
10. Monitor the voice;
11. Supports 2.4G long-distance contactless RFID ID identification function(optional);
12. Keyless RFID car alarm function(optional);
13. Accurate odometer reading directly via CAN-BUS;
14. Data logger 8Mb for offline GPS waypoint;
15. Industrial design, suitable for extremely harsh condition of work;
16. With IOS APP and Android APP for tracking;
17 Transmission of the following data via blue-tooth or GPRS:
(1) Battery's voltage, RPM, speed, TPS throttle opening, engine load, coolant temperature, fuel consumption, odometer, error code & times, acceleration times & deceleration times;
(2) Driver behavior data: ignition time, total driving time, total idling time, average engine hot-start time, average speed, history high speed, history RPM, total acceleration times & total deceleration times.
18. Work with wireless immobilizer to cut off engine and send alarms
Specifications:
| Working voltage: | +6.0 ~+45VDC/1.5A |
| Backup battery: | Rechargeable 3.7V 200mAh Li-ion battery |
| Dimension (main unit): | 54.0*51.5*28.5(mm) |
| Weight (main unit): | 73g |
| GSM frequency: | 2G: Quad-band: 850MHz/900MHz/1800MHz/1900MHz 3G: Quad-band: 800/850/900/1900/2100MHz |
| GPS chipset: | U-blox7 chipset |
| GPS sensibility | -162dBm |
| GPS receiving channel | 56 channels |
| Working frequencies | 1575.42Mhz C/A(GPS) |
| Positioning accuracy | ≤10m (wide-open area) |
| Speed accuracy | ≤0.1M/S (wide-open area) |
| Positioning mode | Auto 2D/3D |
| Hot start | 1 sec., average |
| Warm start | 2 sec., average |
| Cold start | 40 sec., average |
| Working temperature: | -20 ~ 85ºC |
| Humidity: | 0 ~ 95% |
Multiple reports:
History trip report
Driving report
Parking report
Idling report
Speed report
Mileage report
Geo-fence report
Alarm report
OBD report
RFID report
