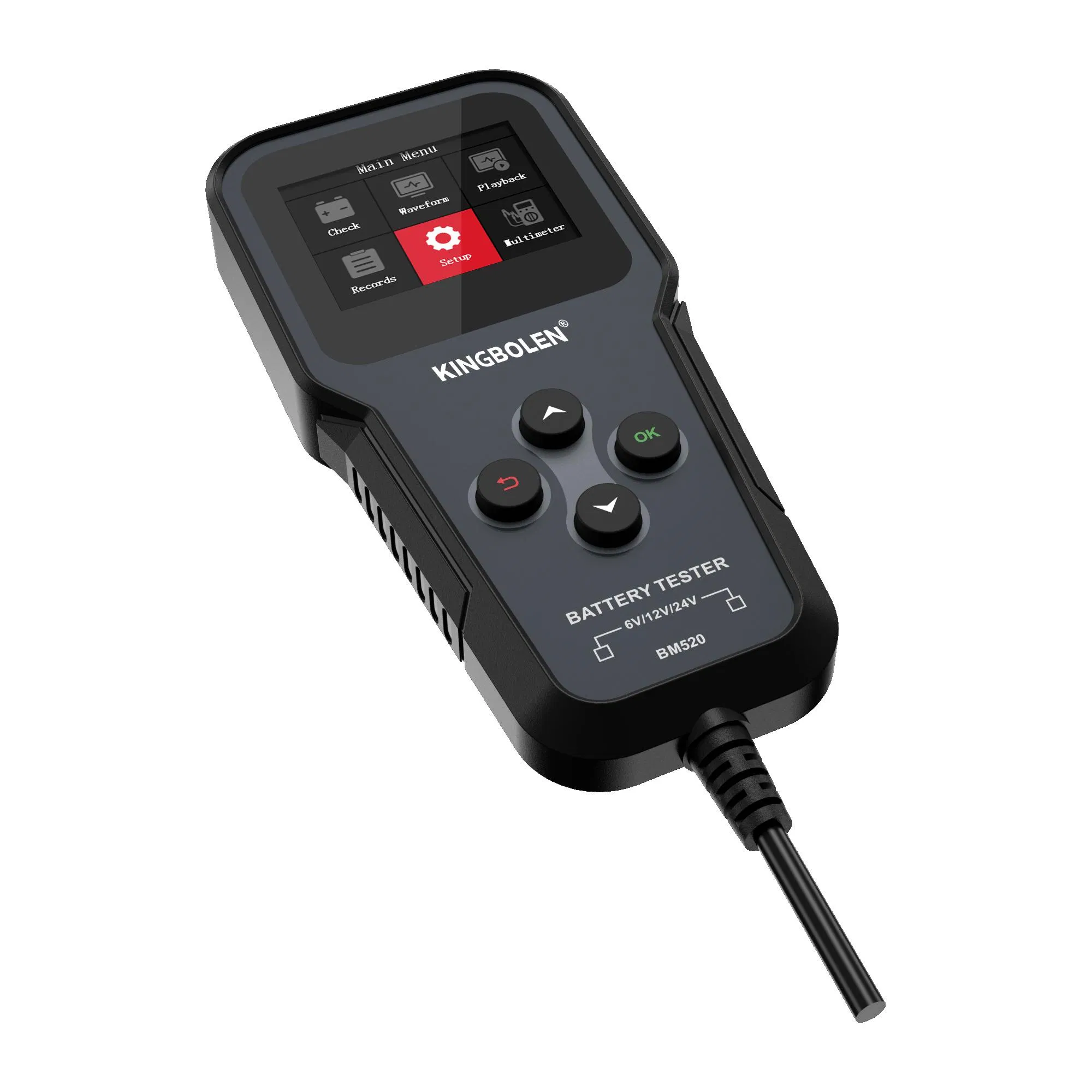

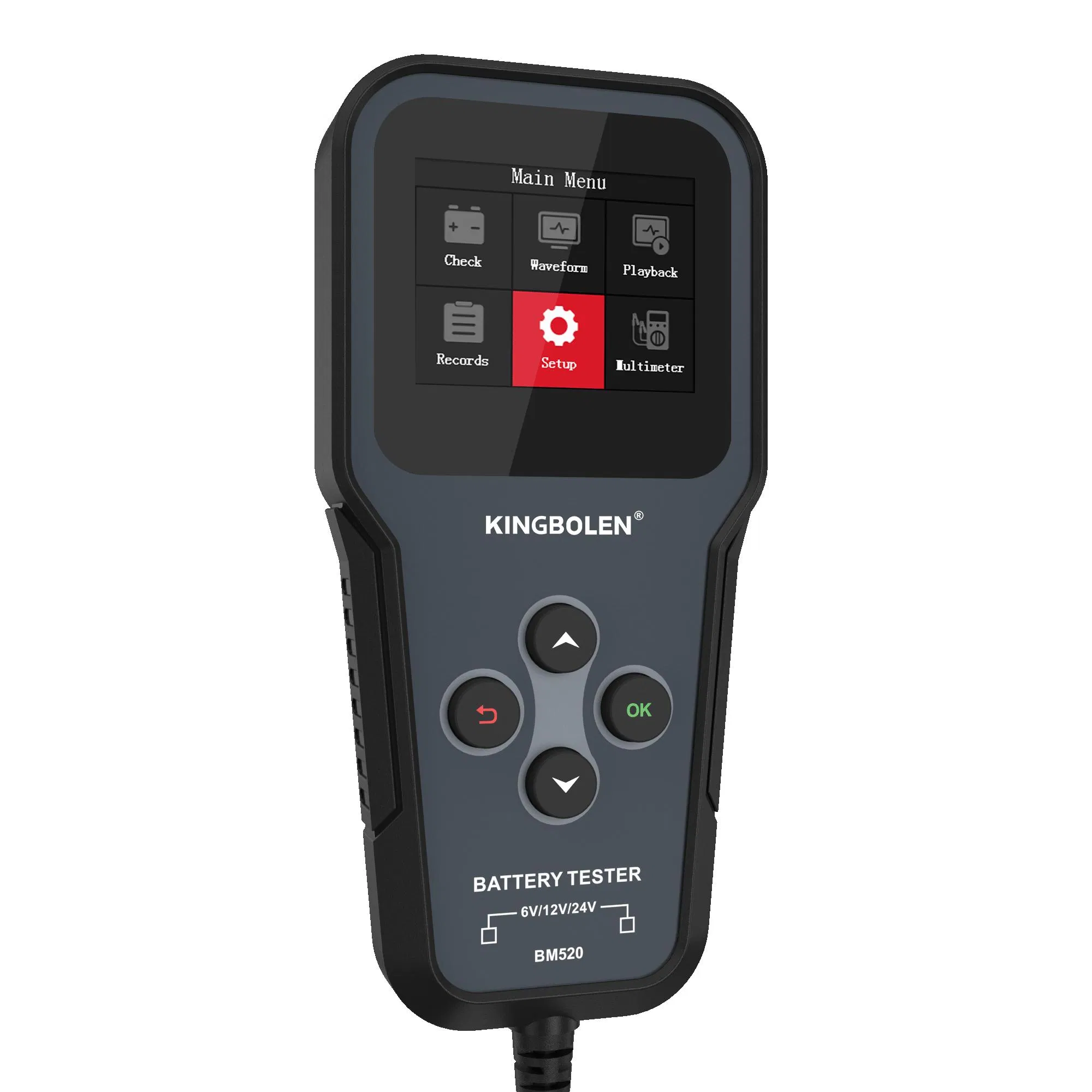

BM520 Truck Battery Analyzer 6V 12V 24V

BM520 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. BM520 notifies the users to replace battery in advance when the battery getting aged.

Quadruple Protection Of BM520 Battery Analyzer

Overvolatge Input Protection:
Below 36V, it can be tested at will without damage the bad internal circuit board has a short circuit.
Reversible Access:
The positive and negative poles are connected incorrectly, and the device can be normal start, the device and battery are not damaged.
Poor Contact Prompt:When the test clip does not clamp the positive and negative electrodes of the batter, the display will prompt.
Built-in Buzzer to Remind:During the test, when the battery is in poor condition, the device will give an audible reminder.

Does your battery need to be replaced?

There are more and more on-board electrical appliances, and the requirements for battery capacity and quality are getting higher and higher. Can your battery still support it?

Wide Range Of Applications of BM520 Car Battery Tester

It can test 6V/12V/24V three different types of batteries, suitable for a variety of common models and equipment, one machine for multiple purposes.

Multiple Functions In One BM520 Battery Analyzer

The four functions can be switched at will to help you quickly detect the battery status of your car.
Battery Test: Life / Voltage / CCA / Internal resistance
Start The Test:Battery discharge performance
Load Test: Engine performance
Charging Test: Engine charging system

Advantages of BM520 Truck Battery Analyzer 6V 12V 24V:

1. Voltage Waveform Monitoring
Monitor the battery status in real time, understand the current floating size of the battery voltage, and have automatic storage and playback functions.

2. Support Multiple Battery Types
It supports a variety of battery standards around the world, can test almost all car start-up lead-acid batteries, and has a wide range of applications. EPS lead-acid battery
Car start battery;
AGM / EFB start-stop battery ;
Electric vehicle battery ;
UPS lead-acid battery ;
Gel battery

Note: UPS battery/electric vehicle battery/motorcycle battery can only measure internal resistance/power/voltage, not battery life.

3. Low Frequency Constant Current Test
Give the battery a fixed frequency and current test signal, sample, rectify, and filter its voltage, and then calculate the internal resistance of the battery.

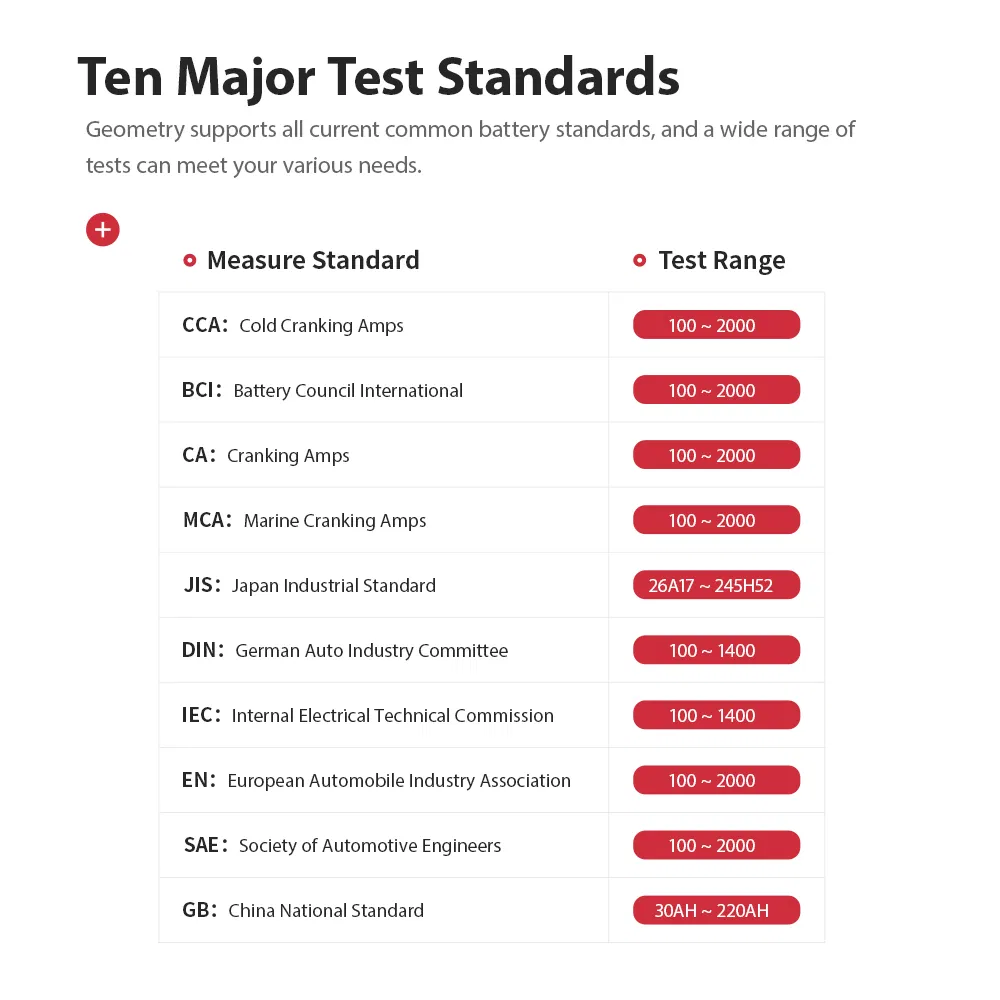

4. Ten Major Test Standards Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
CCA (100 - 2000 )
IEC (100 - 1400 )
EN (100 - 2000 )
DIN (100 - 1400 )
CA (100 - 2000 )
BCI (100 - 2000 )
MCA (100 - 2000 )
SAE (100 - 2000 )
GB (2AH - 220AH )
JIS (26A17 - 245H52 )
5. Regardless Of Positive and Negative
BM520 has a protection function, even if the positive and negative polarity is wrong, the device can start normally, and the device and battery will not be damaged.

6. HD Color Screen
High-definition TFT LCD screen display, will not appear ordinary LCD lack of characters and broken strokes, etc., with backlight function.

7. Ripple Test
Test the charging system of the engine, the smaller the waveform fluctuation, the more stable the voltage, indicating that the battery is in good condition.

Note: If the test result is normal, the battery is charged normally. If the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00V ), please check the voltage regulator; if the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V ), Please check the connection points, wires and engine.

8. Screenshot Function
It has a one-click screen capture function with long press "Up" and " Down" button., which is used to capture and save important data, fast and convenient. ( Note: The device can store up to 10 pictures )

9. Mini USB Interface- Free Update Lifetime
It is used for software upgrade, no need to install driver, the process is simple and easy to operate.

10. Multi-Language Available of Car Battery Tester BM510
English French Russian German Italian Japanese Spanish Portuguese Polish Chinese
11. Use High Quality Wire
Selected high-quality environmentally friendly materials, good elasticity, not easy to break, tough and durable.

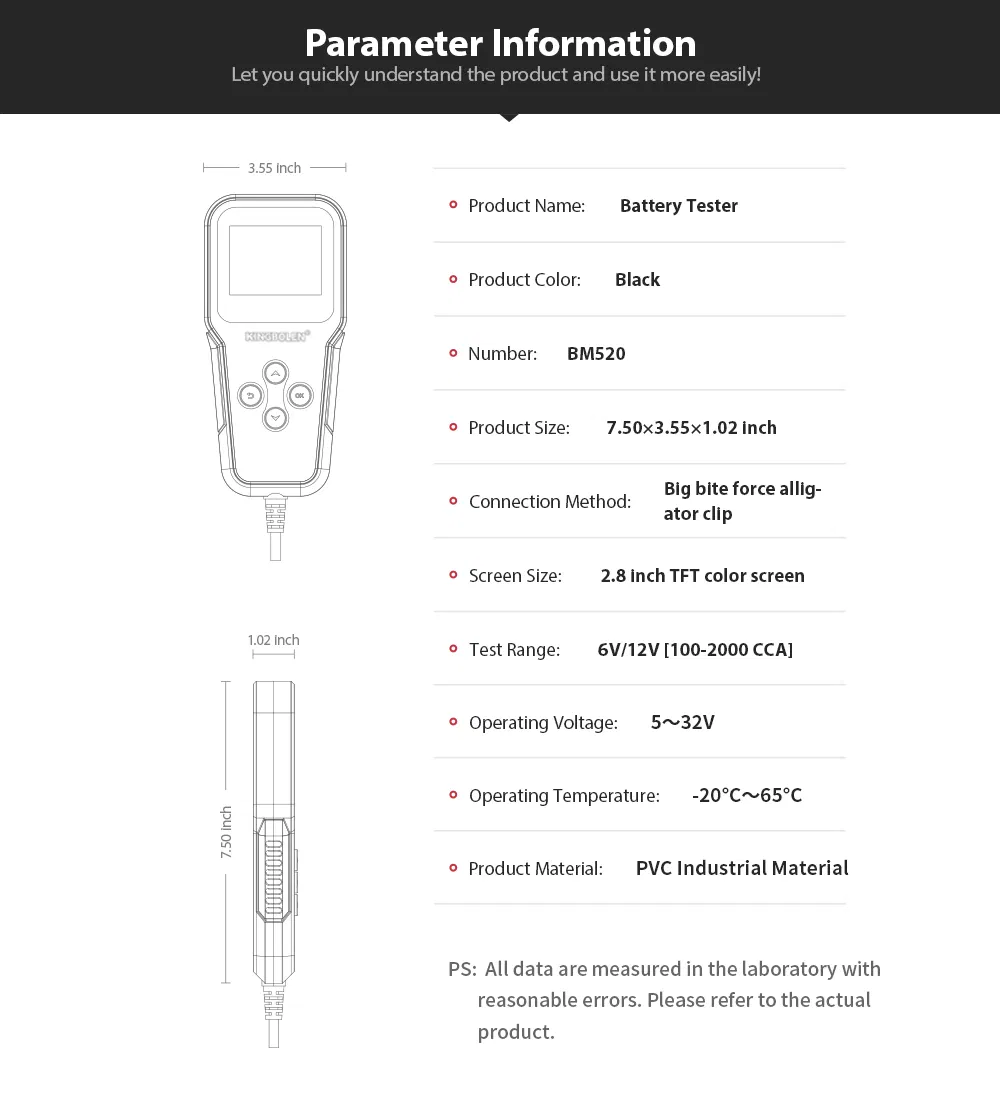

BM520 Parameter Information:

Let you quickly understand the product and use it more easily!

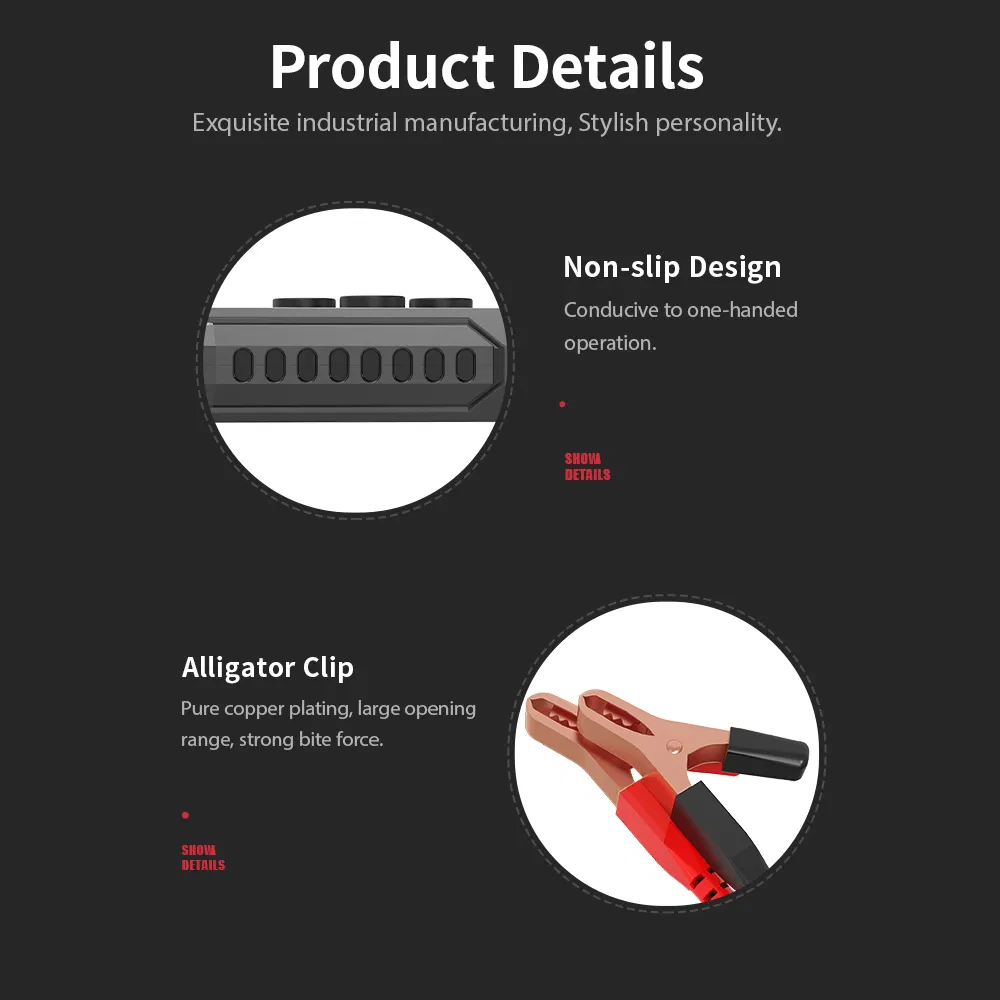

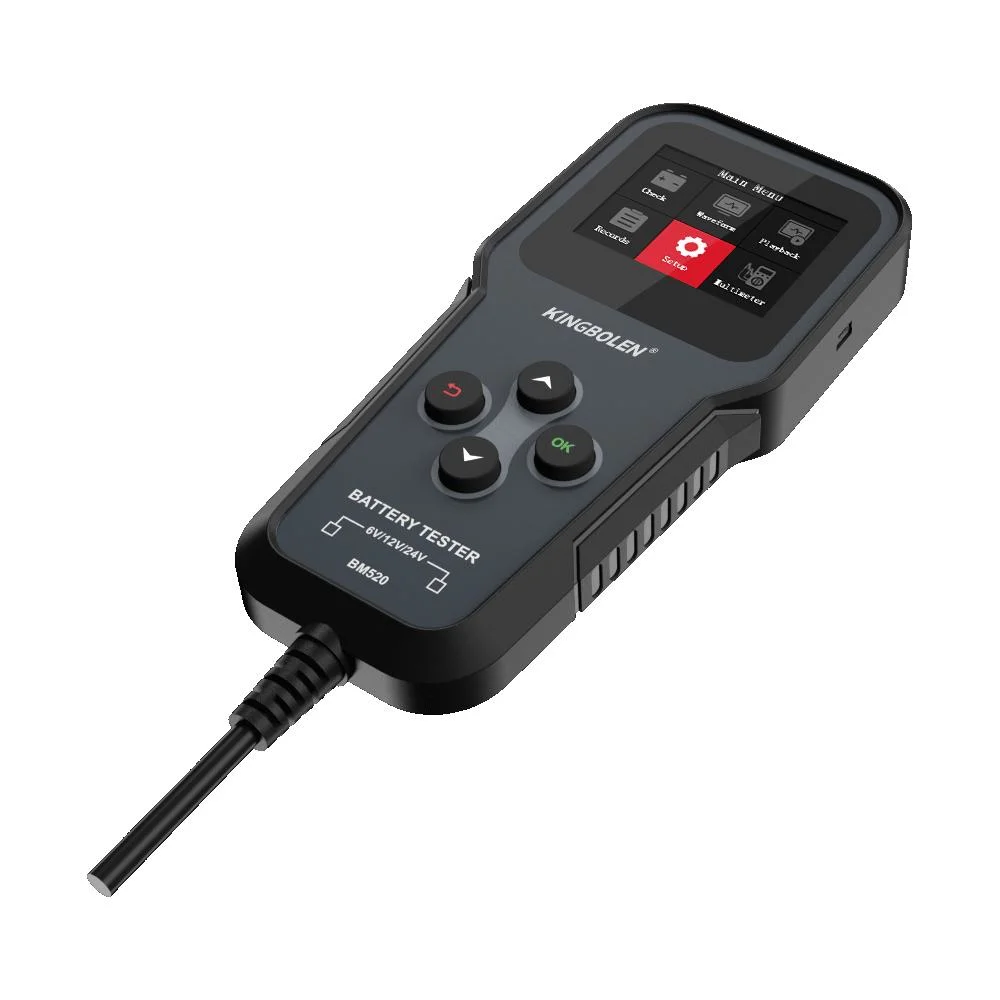

BM520 Car Battery Analyzer Details:

Exquisite industrial manufacturing, Stylish personality.
Non-slip Design:
Conducive to one-handed operation.

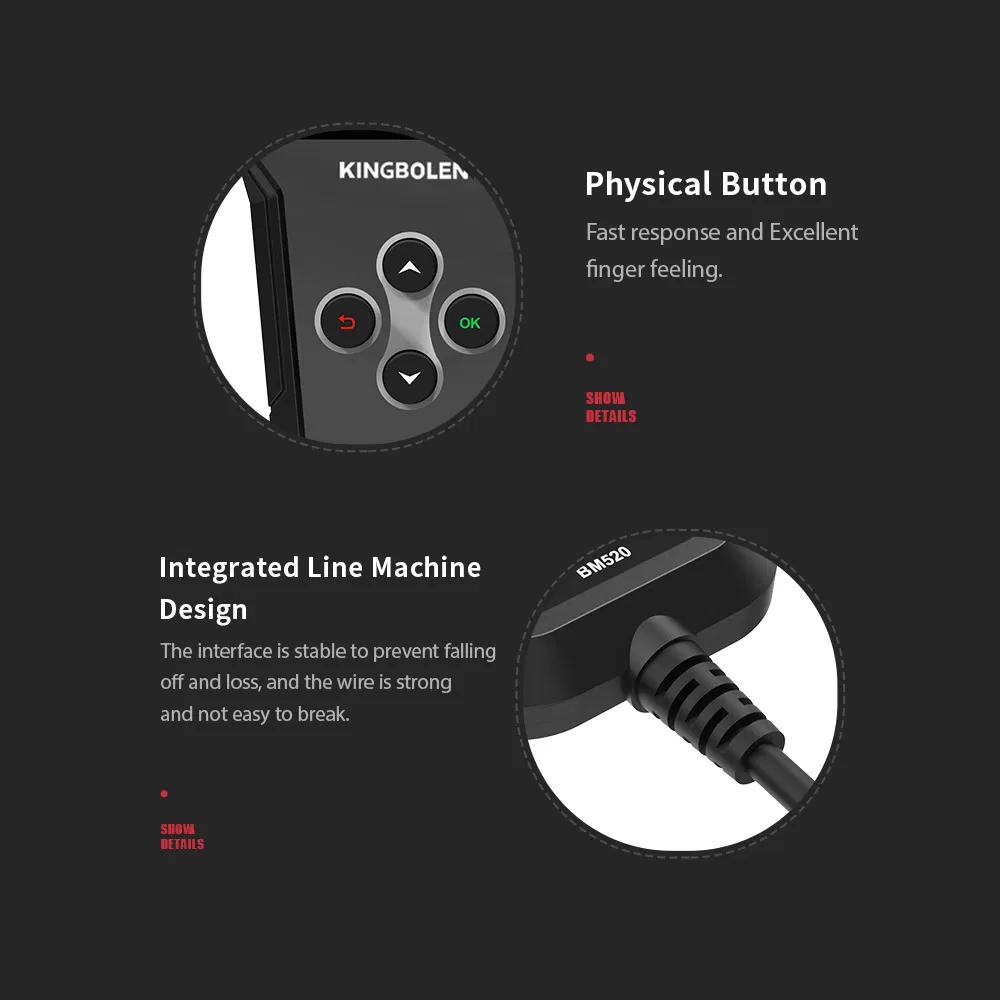

Integrated Line Machine Design:
The interface is stable to prevent falling off and loss, and the wire is strong and not easy to break.
Physical Button:
Fast response and Excellent finger feeling.
Alligator Clip:
Pure copper plating, large opening range, strong bite force.

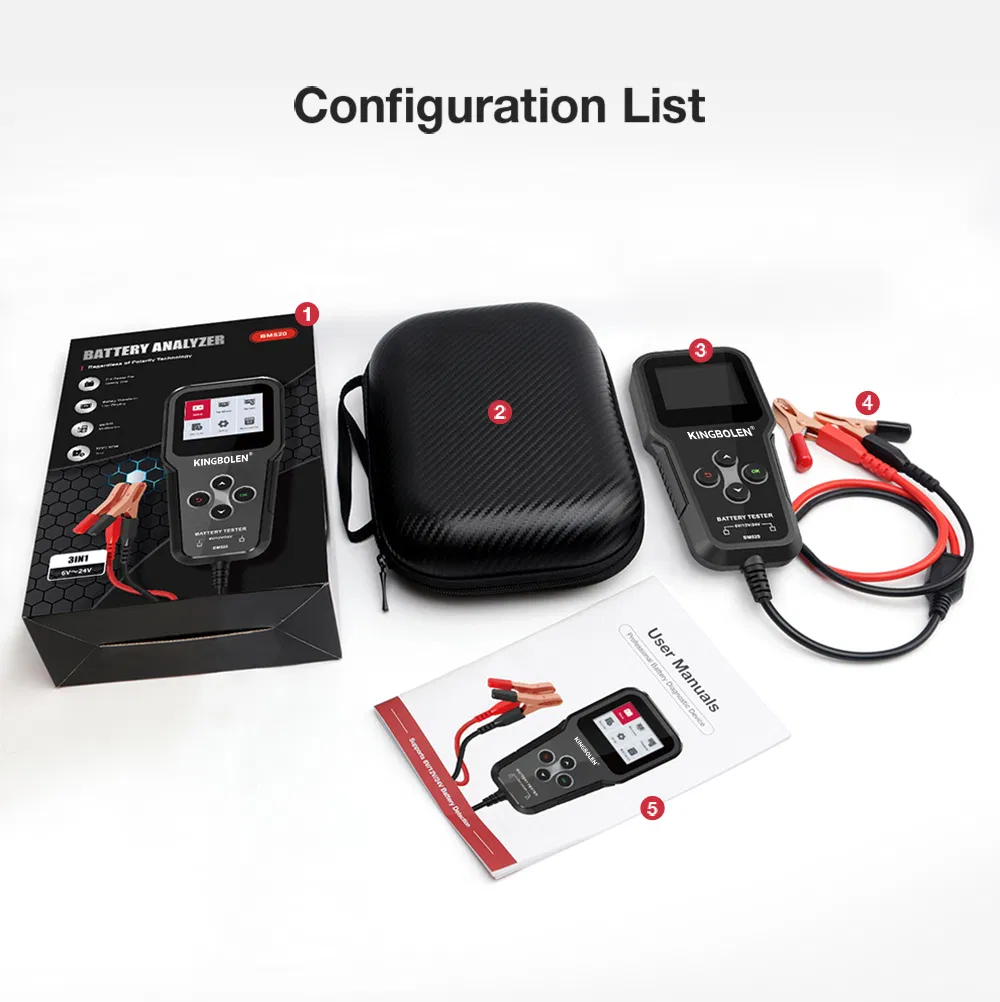

BM520 Packing List:

1pc * Packaging Box
1pc * Leather Box
1pc * BM520 Battery Tester With Alligator Clip
1pc * English User Manual
