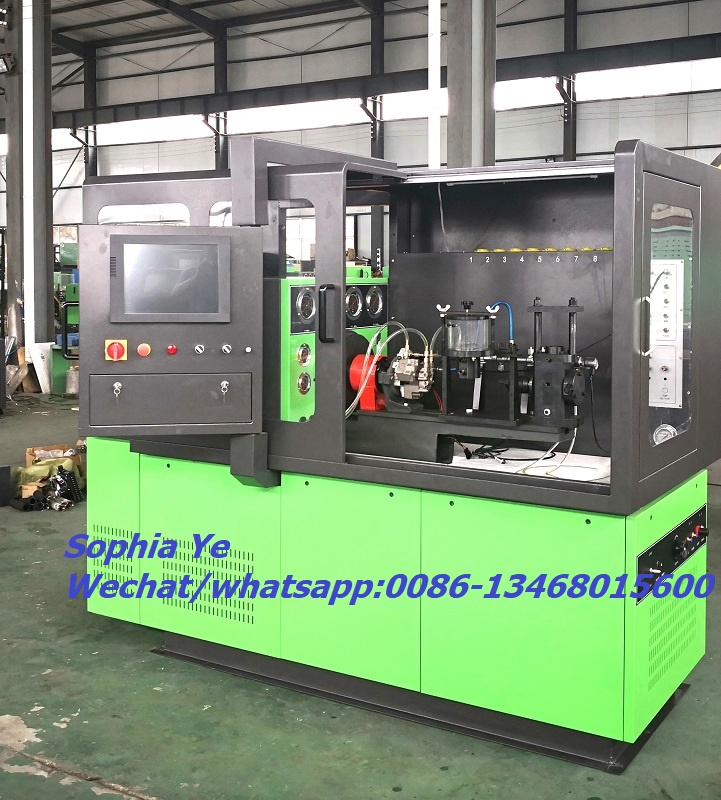

Automotive Bip Nts825 Heui Eui Eup Unit Injector Unit Pump Test Bench with Cambox and All Adaptor
NTS825 COMMON RAIL SYSTEM TEST BENCH The Function and Characteristics:1. Automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brandsof electromagnetic injector and piezoelectric fuel injectors.2. Automatic detection of all high-pressure common rail pumps.3, Automatic detection of all the M......
Send Inquiry
Product Description
The Function and Characteristics:
1. Automatic detection of BOSCH, DELPHI, DENSO, SIEMENS and other brands
of electromagnetic injector and piezoelectric fuel injectors.
2. Automatic detection of all high-pressure common rail pumps.
3, Automatic detection of all the Mechanical pumps.
4. Automatic detection DENSO HP0 pump.
5. Automatic detection of BOSCH, CAT, CUMIMINS, DELPHI, BENZ, VOLVO and
other models of various pump nozzles and pumps, and dual solenoid valve
injector.
6. Automatic detection of medium pressure common rail injector (HEUI) such as
NANTAI AUTOMOTIVE TECHNOLOGY CO., LTD
ADD: LIYUAN INDUSTRY ZONE , TAIAN CITY SHANDONG PROVINCE , CHINA
TEL: 0086-538-6627598 FAX: 0086-538-6627668
HTTP://nantaixinan.en.made-in-china.com
0086-13468015600
CAT C7 / C9 / C-9 / C3126 .
7. Fully automatic detection BOSCH VP44 pump. (Optional)
8. Automatic detection of BOSCH VE pump control. (Optional)
9. It can be customized according to customer needs and development and
application of different.
II. THE main configuration:
1. Embedded industrial computer system, color LCD touch screen control, easy
operation, stable performance.
2. The system memory of various fuel injector and pump standard data.
3. BOSCH CP3.3 pump.
4. BOSCH DRV valve. pressure range 0-2400BAR. Rail pressure accuracy +, -
0.5 bar.
5. High-precision flow sensor, flow range 0.008-4L / min. Accuracy 0.3%.
6. High-precision cam drive. (Optional)
7. 7.5KW / 11KW / 15KW / 18.5KW / 22KW power optional, three-phase 220V
/ 380V voltage optional.
Related Products:

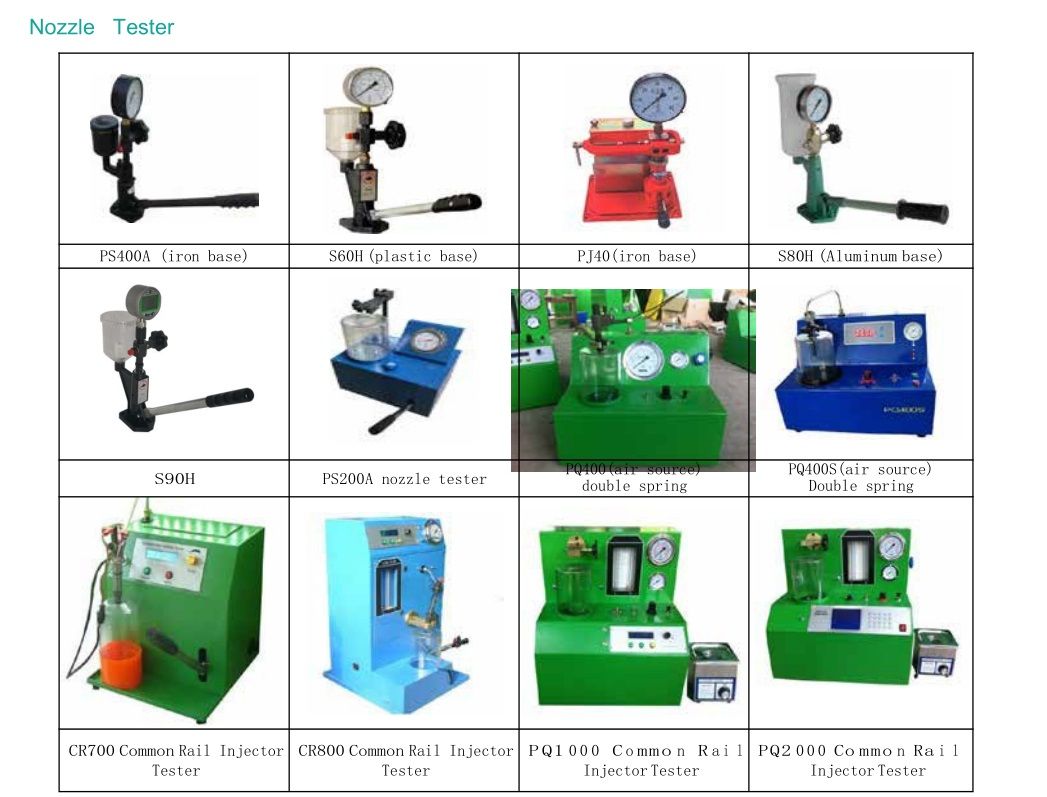

1. NOZZLE TESTER

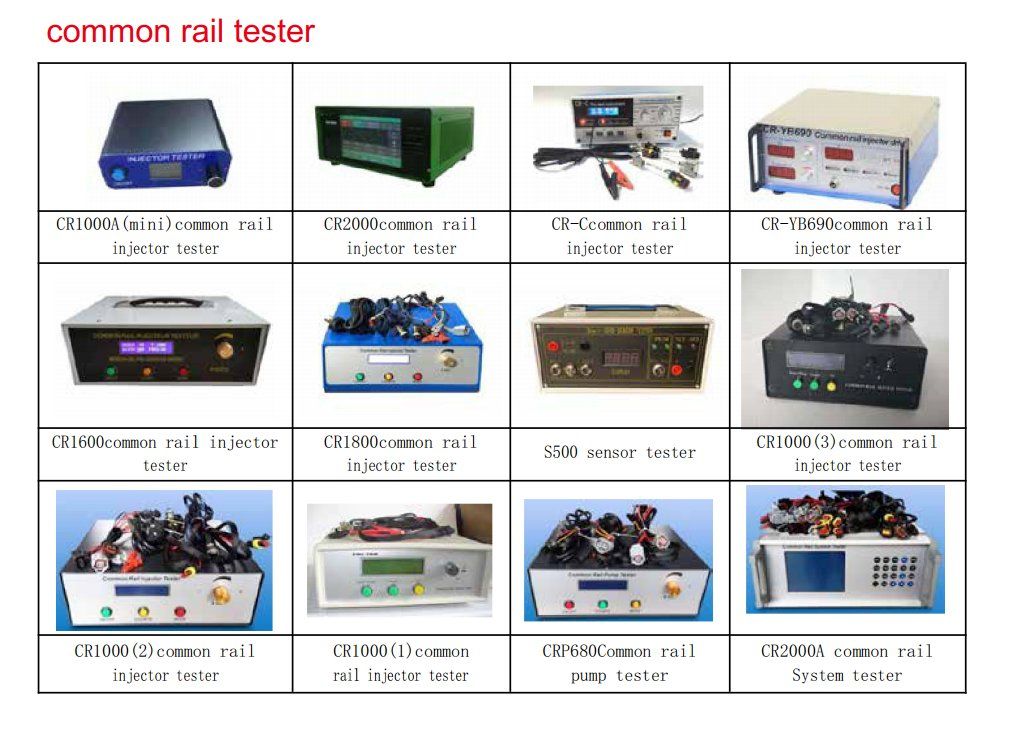

2. COMMON RAIL TESTER :

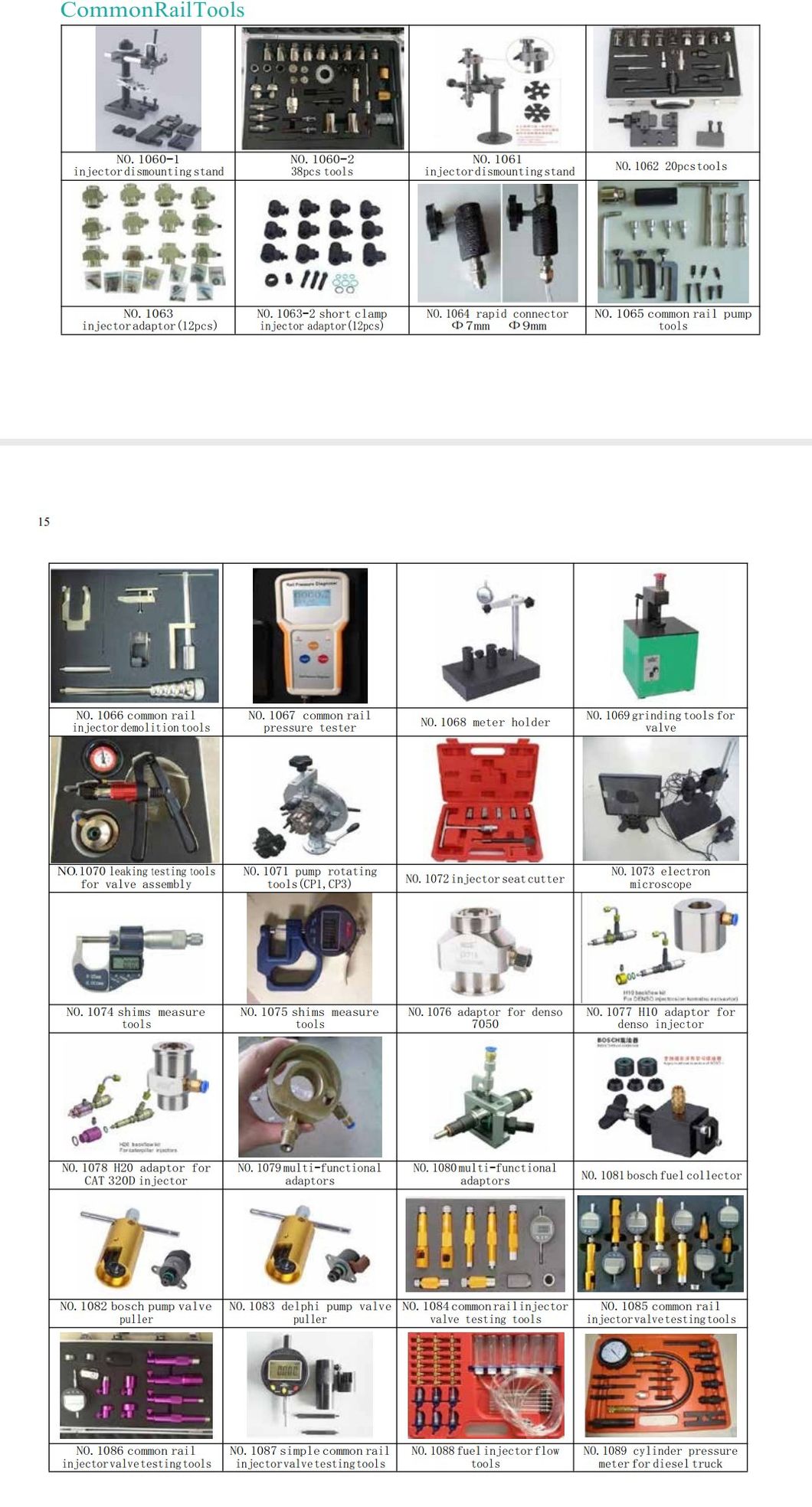

3. Professional Tools:

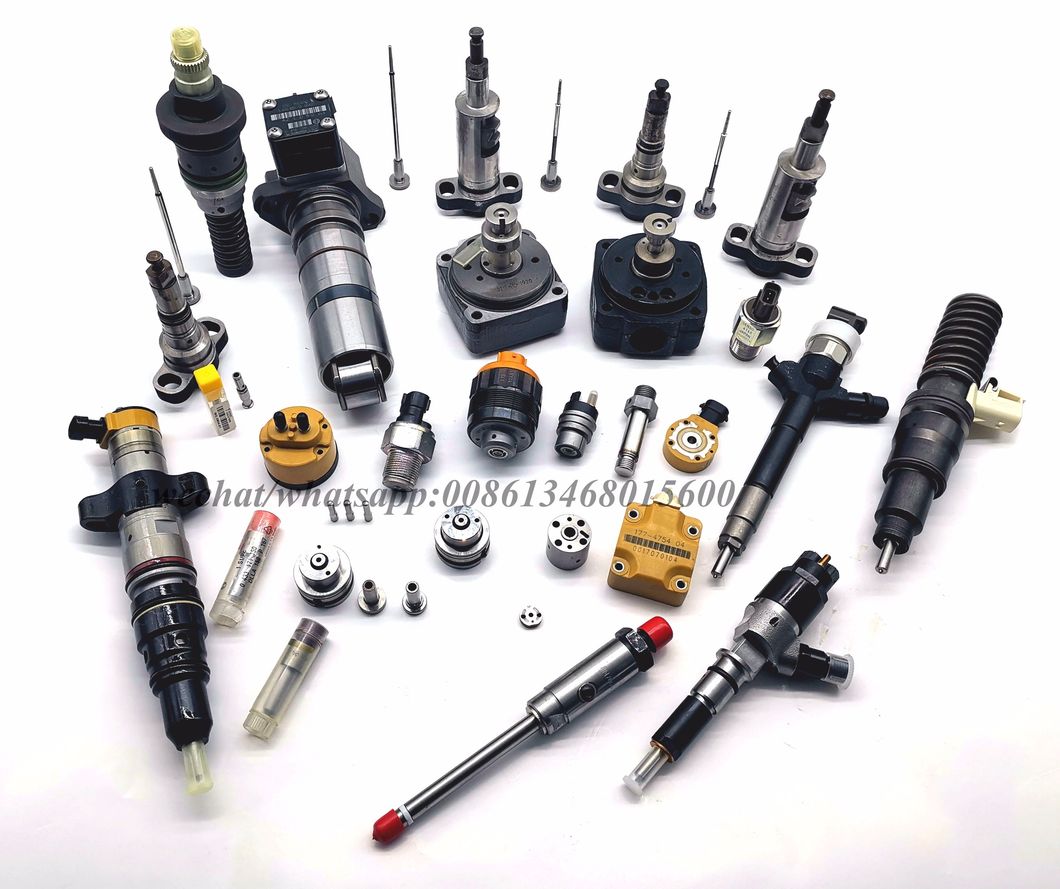

4. Spare parts:
